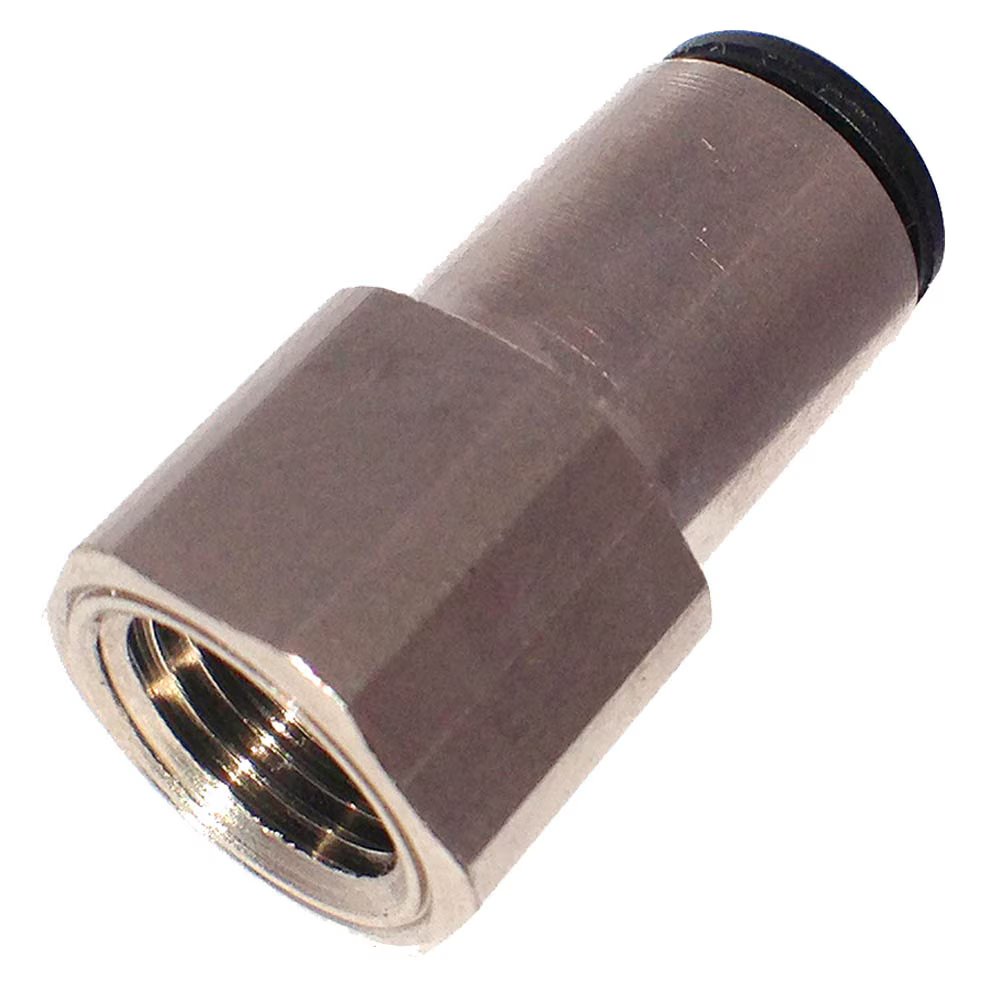

66LF-16M-8G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | 16mm Connector x 1/2" Female BSPP Thread | 49mm Length | Straight | Brass | Pack of 5
by Parker Hannifin
Push-to-Connect Fittings:66LF Female Connector – BSPP
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $227.78 |
| 20–59 | $205.97 |
| 60+ | $181.74 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Thread BSPP | E | F | H |
| 66LF-4M-M5 | 4 mm | M5X0.8 | 6.5 mm | 8 mm | 19.5 mm |
| 66LF-4M-2G | 4 mm | 1/8" | 9.5 mm | 13 mm | 22.5 mm |
| 66LF-4M-4G | 4 mm | 1/4" | 13.5 mm | 16 mm | 19.5 mm |
| 66LF-6M-2G | 6 mm | 1/8" | 9.5 mm | 13 mm | 24.5 mm |
| 66LF-6M-4G | 6 mm | 1/4" | 13.5 mm | 16 mm | 28.5 mm |
| 66LF-8M-2G | 8 mm | 1/8" | 9.5 mm | 13 mm | 29.0 mm |
| 66LF-8M-4G | 8 mm | 1/4" | 13.5 mm | 16 mm | 33.0 mm |
| 66LF-8M-6G | 8 mm | 3/8" | 14.0 mm | 19 mm | 34.0 mm |
| 66LF-10M-4G | 10 mm | 1/4" | 13.5 mm | 16 mm | 36.0 mm |
| 66LF-10M-6G | 10 mm | 3/8" | 14.0 mm | 19 mm | 36.0 mm |
| 66LF-10M-8G | 10 mm | 1/2" | 19.5 mm | 24 mm | 41.5 mm |
| 66LF-12M-4G | 12 mm | 1/4" | 14.0 mm | 19 mm | 39.5 mm |
| 66LF-12M-6G | 12 mm | 3/8" | 14.0 mm | 19 mm | 40.0 mm |
| 66LF-12M-8G | 12 mm | 1/2" | 19.5 mm | 24 mm | 45.5 mm |
| 66LF-14M-6G | 14 mm | 3/8" | 14.0 mm | 22 mm | 42.5 mm |
| 66LF-16M-8G | 16 mm | 1/2" | 15.0 mm | 27 mm | 49.0 mm |
