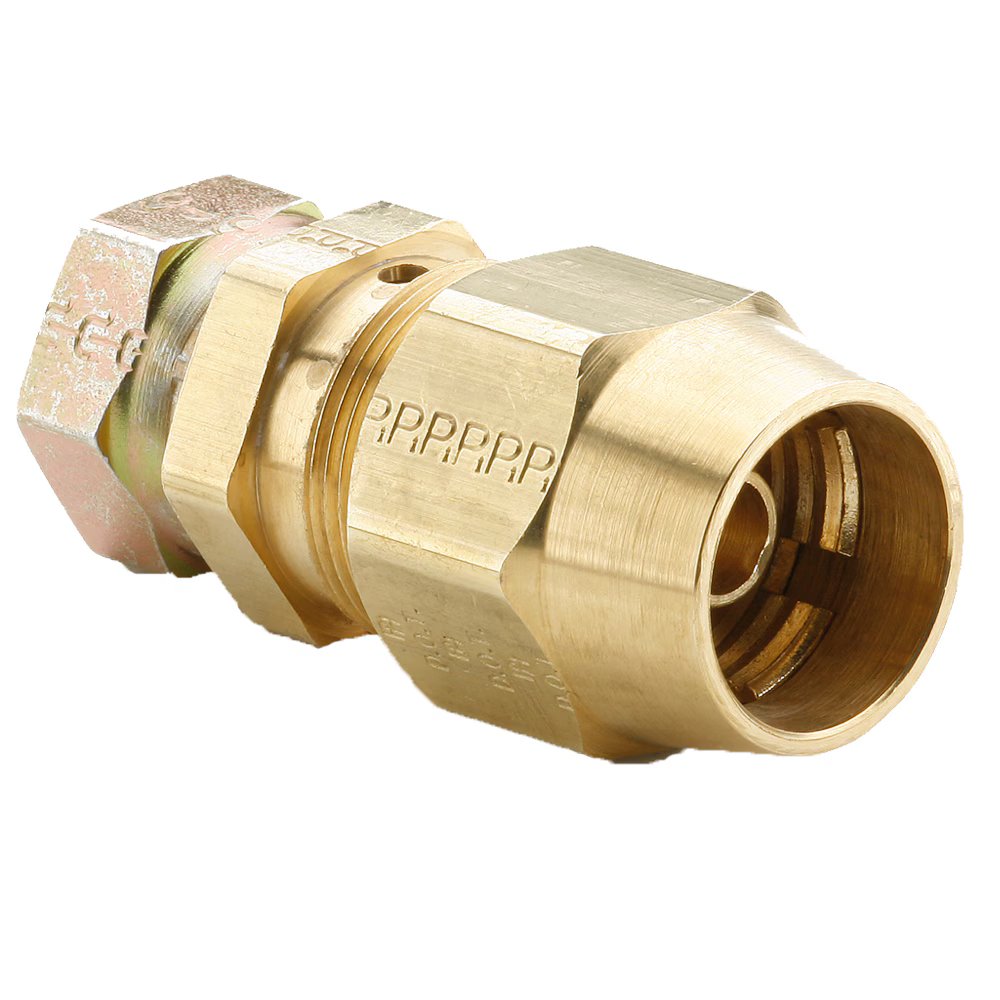

66RBSV-8-7/8 by Parker | Air Brake Hose Ends Fittings | 1/2" Hose Size x 7/8" Female Swivel Thread | 1-1/8" Hex1 | 1" Hex2 | 2.36" Length | Straight | Brass | Pack of 5

66RBSV-8-7/8 by Parker | Air Brake Hose Ends Fittings | 1/2" Hose Size x 7/8" Female Swivel Thread | 1-1/8" Hex1 | 1" Hex2 | 2.36" Length | Straight | Brass | Pack of 5

Sale price$130.52

by Parker Hannifin
Air Brake Hose Ends Fittings:Female Swivel Connector 66RBSV

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $122.69
30–59 $110.94
60+ $97.89
Discounts applied in cart/checkout.

Product Data:

Series:
  • 66RBSV Series
Shape:

Straight

Ends Configuration:
  • 1/2in Push-to-Connect
  • 7/8in Female NPT
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Markets:
  • Heavy Duty Truck
  • Trailer
Applications:
  • Air Lines Frame to Axle
Specification:
Pressure Range: Up to 400 PSI (27.5 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:
  • Parker 271 air brake hose
  • SAE J1402 air brake hose
Part Number Hose Size Straight Thread Hex 1 Hex 2 L M D
66RBSV-6-3/4 3/8" 3/4"-20 31/32" 7/8" 2.30" 2.09" .281"
66RBSV-8-7/8 1/2" 7/8"-20 1-1/8" 1" 2.36" 2.14" .390"
