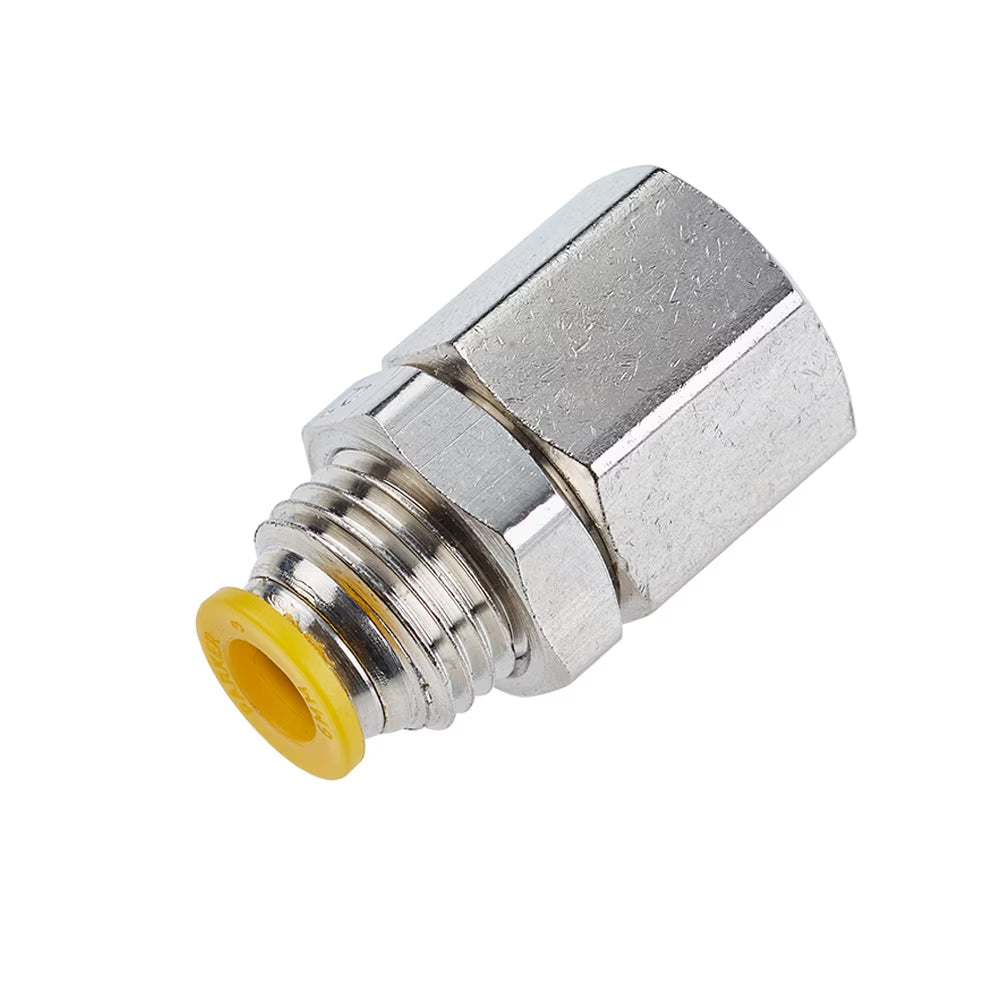

66PLPBH-12M-6G by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead | 12mm Bulkhead x 3/8" Female BSPP Thread | 1" Hex | 41.61mm Length | 9.525mm Flow Dia. | 22mm Bulkhead Hole Dia. | Straight | Nickel-Plated Brass | Pack of 10

66PLPBH-12M-6G by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead | 12mm Bulkhead x 3/8" Female BSPP Thread | 1" Hex | 41.61mm Length | 9.525mm Flow Dia. | 22mm Bulkhead Hole Dia. | Straight | Nickel-Plated Brass | Pack of 10

Sale price$276.86

by Parker Hannifin
Push-to-Connect Fittings:66PLPBH Female Bulkhead – BSPP

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $260.25
15–29 $235.33
30+ $207.65
Discounts applied in cart/checkout.

Product Data:

Series:
  • 66PLPBH Series
Shape:

Straight

Ends Configuration:
  • 4mm Push-to-Connect
  • 3/8in Female BSPP
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size Thread BSPP Hex (C) Max. (P) Length (L) Flow Diameter (D) Bulkhead Hole Diameter
66PLPBH-4M-4G 4 mm 1/4" 11/16" 3.81 mm 37.85 mm 3.175 mm 12 mm
66PLPBH-6M-4G 6 mm 1/4" 11/16" 3.91 mm 36.40 mm 4.775 mm 14 mm
66PLPBH-10M-6G 10 mm 3/8" 1" 4.93 mm 39.50 mm 7.925 mm 22 mm
66PLPBH-12M-6G 12 mm 3/8" 1" 7.62 mm 41.61 mm 9.525 mm 22 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
