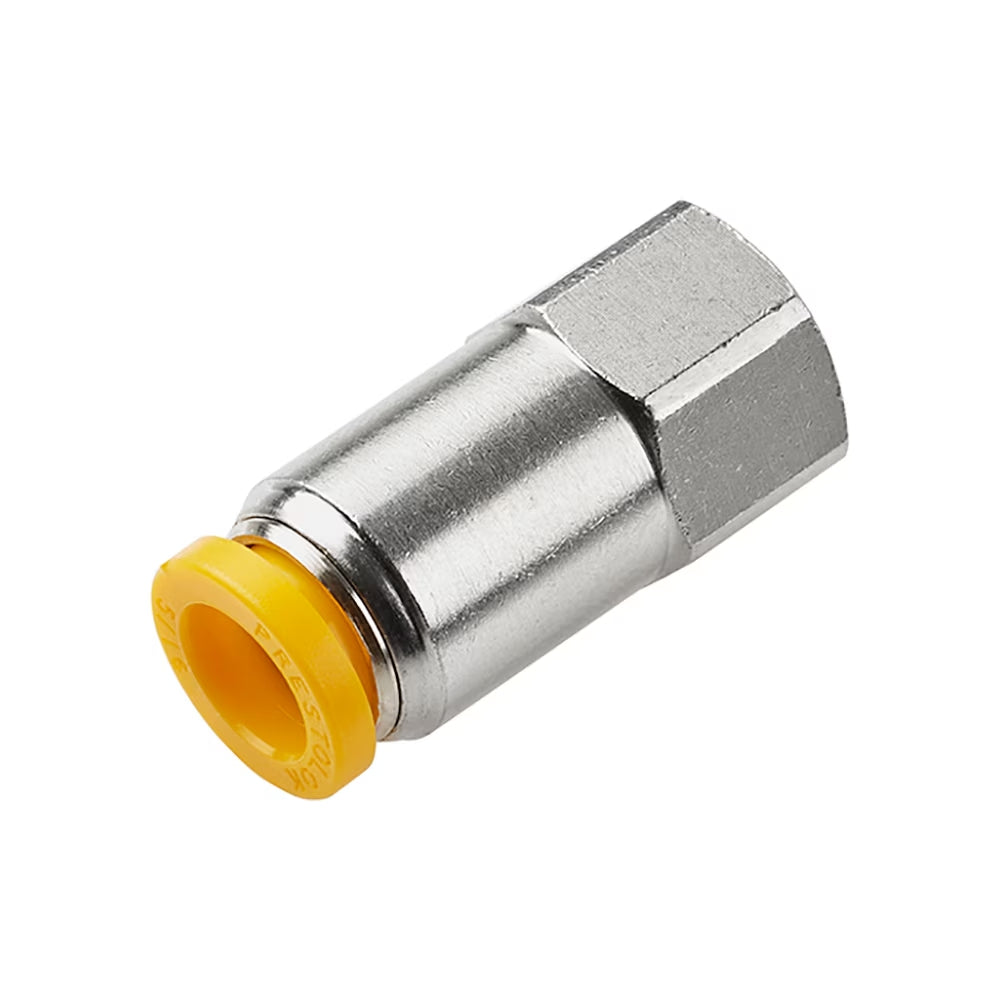

66PLP-10M-4G by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 10mm Connector x 1/4" Female BSPP Thread | 11/16" Hex | 38.23mm Length | 7.925mm Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:66PLP Female Connector – BSPP
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $157.21 |
| 20–59 | $142.15 |
| 60+ | $125.43 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 300 PSI (20.6 bar) depending on tubing |
| Temperature Range: | 0° to +200° F (-17.7° to 93.3° C) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | Tube Size | Threads BSPP | Hex (C) | Length (L) | Flow Diameter (D) |
| 66PLP-4M-2G | 4 mm | 1/8" | 9/16" | 30.99 mm | 3.175 mm |
| 66PLP-4M-4G | 4 mm | 1/4" | 11/16" | 38.61 mm | 3.175 mm |
| 66PLP-6M-2G | 6 mm | 1/8" | 9/16" | 30.05 mm | 4.775 mm |
| 66PLP-6M-4G | 6 mm | 1/4" | 11/16" | 36.40 mm | 4.775 mm |
| 66PLP-8M-2G | 8 mm | 1/8" | 9/16" | 33.60 mm | 6.350 mm |
| 66PLP-8M-4G | 8 mm | 1/4" | 11/16" | 40.46 mm | 6.350 mm |
| 66PLP-10M-4G | 10 mm | 1/4" | 11/16" | 38.23 mm | 7.925 mm |
| 66PLP-10M-6G | 10 mm | 3/8" | 13/16" | 39.50 mm | 7.925 mm |
