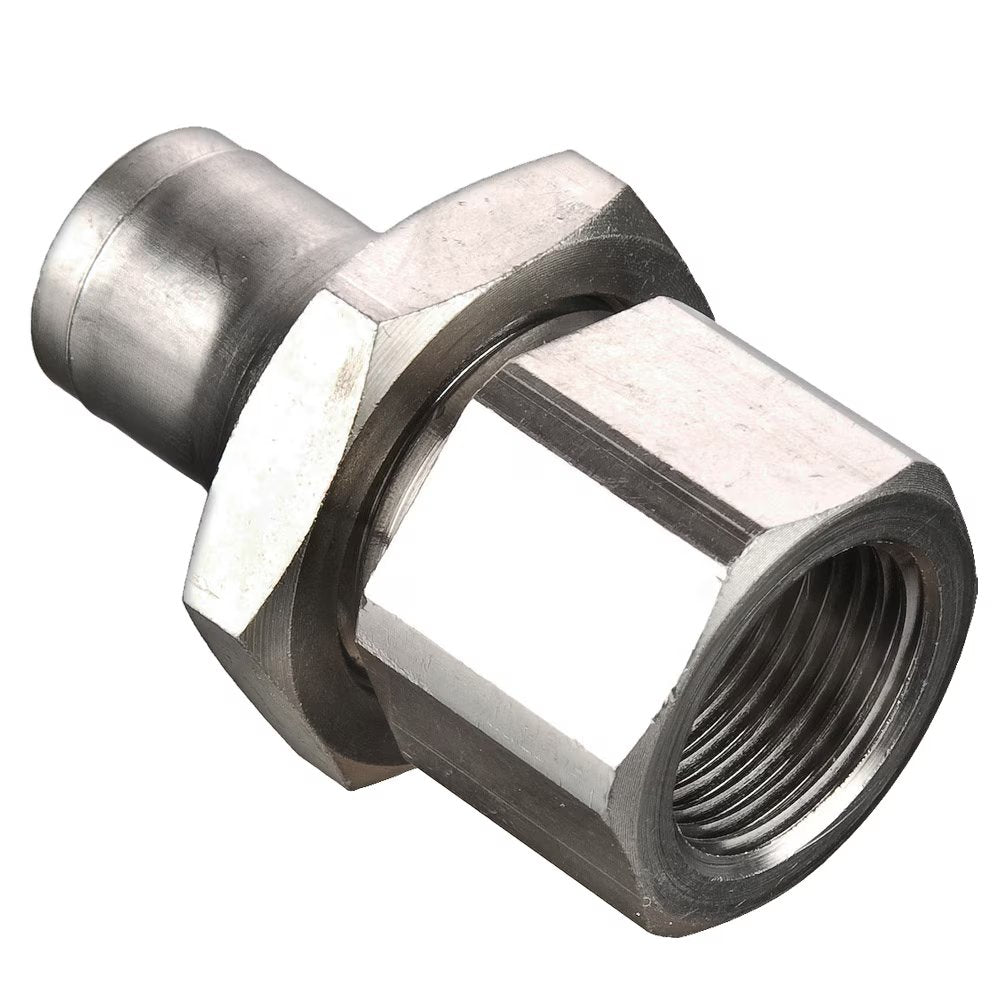

66PLMBH-4M-2G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 4 mm Bulkhead Connector x 1/8" Female BSPP Threads | Straight | Electroless Nickel-Plated Brass | Pack of 10

66PLMBH-4M-2G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 4 mm Bulkhead Connector x 1/8" Female BSPP Threads | Straight | Electroless Nickel-Plated Brass | Pack of 10

Sale price$142.22

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:66PLMBH Female Bulkhead Connector Metric Tube to BSPP

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $133.69
20–59 $120.89
60+ $106.67
Discounts applied in cart/checkout.

Product Data:

Series:
  • 66PLMBH Series
Shape:

Straight

Ends Configuration:
  • 4mm Push-to-Connect
  • 1/8in Female BSPP
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size BSPP F1 F2 H H1 K T
66PLMBH-4M-2G 4 mm 1/8" 14 mm 14 mm 30.50 mm 11.00 mm 15.00 mm 13 mm
66PLMBH-6M-2G 6 mm 1/8" 17 mm 17 mm 32.50 mm 11.00 mm 18.50 mm 15 mm
66PLMBH-6M-4G 6 mm 1/4" 17 mm 17 mm 37.00 mm 15.00 mm 18.50 mm 15 mm
66PLMBH-8M-2G 8 mm 1/8" 19 mm 19 mm 34.00 mm 10.50 mm 21.00 mm 17 mm
66PLMBH-8M-4G 8 mm 1/4" 19 mm 19 mm 38.00 mm 14.50 mm 21.00 mm 17 mm
66PLMBH-10M-6G 10 mm 3/8" 22 mm 27 mm 42.50 mm 16.00 mm 24.00 mm 21 mm
66PLMBH-12M-6G 12 mm 3/8" 24 mm 24 mm 43.00 mm 16.00 mm 26.00 mm 23 mm
66PLMBH-12M-8G 12 mm 1/2" 27 mm 24 mm 48.50 mm 21.50 mm 29.50 mm 23 mm
