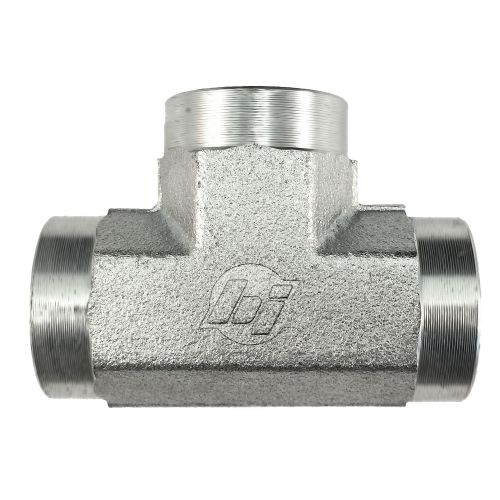

6660-06-06-06-FG by Brennan Inc. | -06 Female O-Ring Boss x -06 Female O-Ring Boss x -06 Female O-Ring Boss | Tee | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 6660 - Female O-Ring Boss x Female O-Ring Boss x Female O-Ring Boss Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $23.46 |
| 40–79 | $21.22 |
| 80+ | $18.72 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Material | A1 Female ORB |
A2 Female ORB |
A3 Female ORB |
N1 Length |
N2 Length |
N3 Length |
Y Flats |
| 6660-04-04-04-FG | Forged Steel | 7/16-20" | 7/16-20" | 7/16-20" | 0.740" | 0.740" | 0.740" | 0.750" |
| 6606-06-06-06-FG | Forged Steel | 9/16-18" | 9/16-18" | 9/16-18" | 0.860" | 0.860" | 0.860" | 0.750" |
| 6660-08-08-08-FG | Forged Steel | 3/4-16" | 3/4-16" | 3/4-16" | 1.030" | 1.030" | 1.030" | 1.062" |
| 6660-10-10-10-FG | Forged Steel | 7/8-14" | 7/8-14" | 7/8-14" | 1.180" | 1.180" | 1.180" | 1.062" |
| 6660-12-12-12-FG | Forged Steel | 1-1/16-12" | 1-1/16-12" | 1-1/16-12" | 1.390" | 1.390" | 1.390" | 1.312" |
| 6660-16-16-16-FG | Forged Steel | 1-5/16-12" | 1-5/16-12" | 1-5/16-12" | 1.520" | 1.520" | 1.520" | 1.625" |
| 6660-20-20-20-FG | Forged Steel | 1-5/8-12" | 1-5/8-12" | 1-5/8-12" | 1.700" | 1.700" | 1.700" | 2.000" |
| 6660-24-24-24-FG | Forged Steel | 1-7/8-12" | 1-7/8-12" | 1-7/8-12" | 2.080" | 2.080" | 2.080" | 2.562" |
