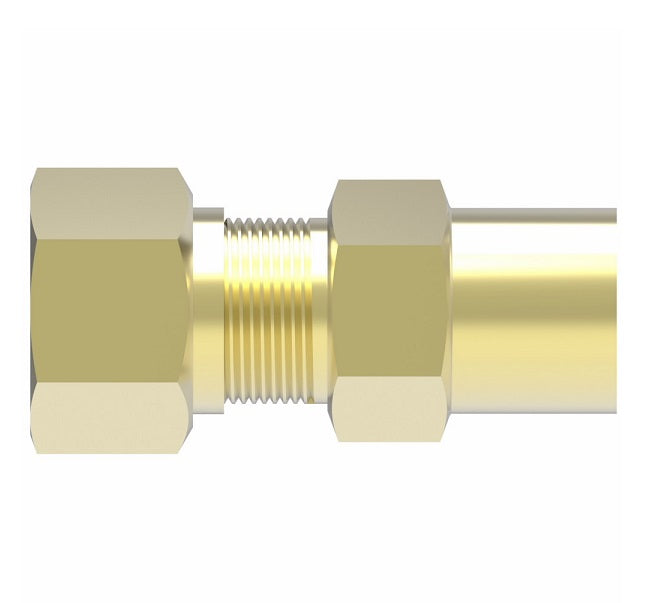

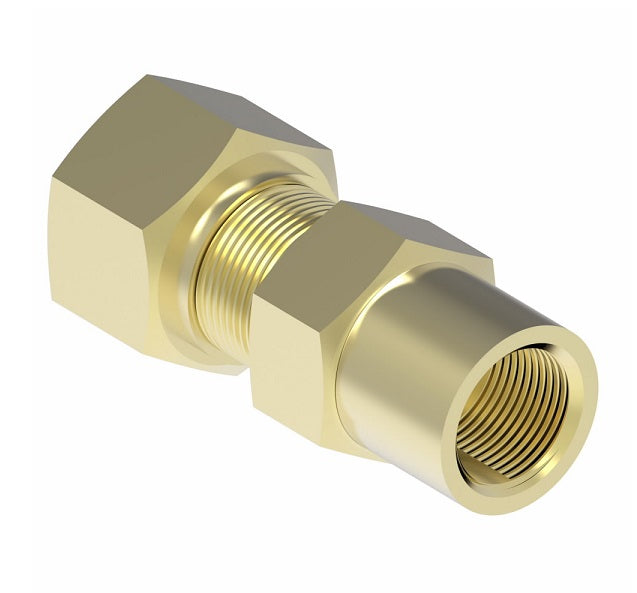

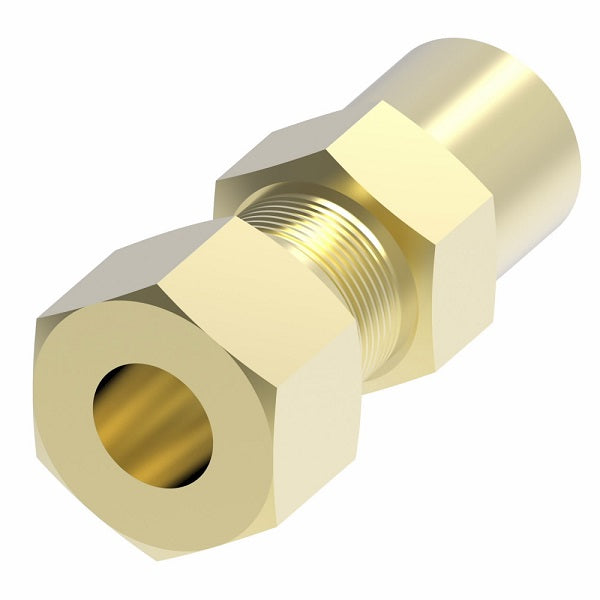

661X6 by Danfoss | SelfAlign Adapter | Female Connector | 3/8" Tube OD x 1/4" Female NPTF | Brass
661X6 by Danfoss | SelfAlign Adapter | Female Connector | 3/8" Tube OD x 1/4" Female NPTF | Brass
661X6 by Danfoss | SelfAlign Adapter | Female Connector | 3/8" Tube OD x 1/4" Female NPTF | Brass

661X6 by Danfoss | SelfAlign Adapter | Female Connector | 3/8" Tube OD x 1/4" Female NPTF | Brass

Minimum Order Quantity: 5 Units

Sale price$6.74

Aeroquip® by Danfoss
SelfAlign Adapter - Female Connector
SelfAlign End x Female NPTF
Straight

In stock
Buy More, Save More!
Quantity Price Each
20–39 $6.34
40–79 $5.73
80+ $5.06
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Tube Compression
  • 1/4in Female NPTF
Material(s):
  • Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number 		Tube O.D. Female Pipe Thread Hex
C		 D L
661X2 1/8" 1/8" 9/16" 0.094" 0.75"
661X3 3/16" 1/8" 9/16" 0.125" 0.78"
661X4 1/4" 1/8" 9/16" 0.188" 0.78"
661X4X4 1/4" 1/4" 11/16" 0.188" 1.03"
661X6X2 3/8" 1/8" 9/16" 0.312" 0.84"
661X6 3/8" 1/4" 11/16" 0.312" 1.06"
661X8 1/2" 3/8" 13/16" 0.406" 1.12"
