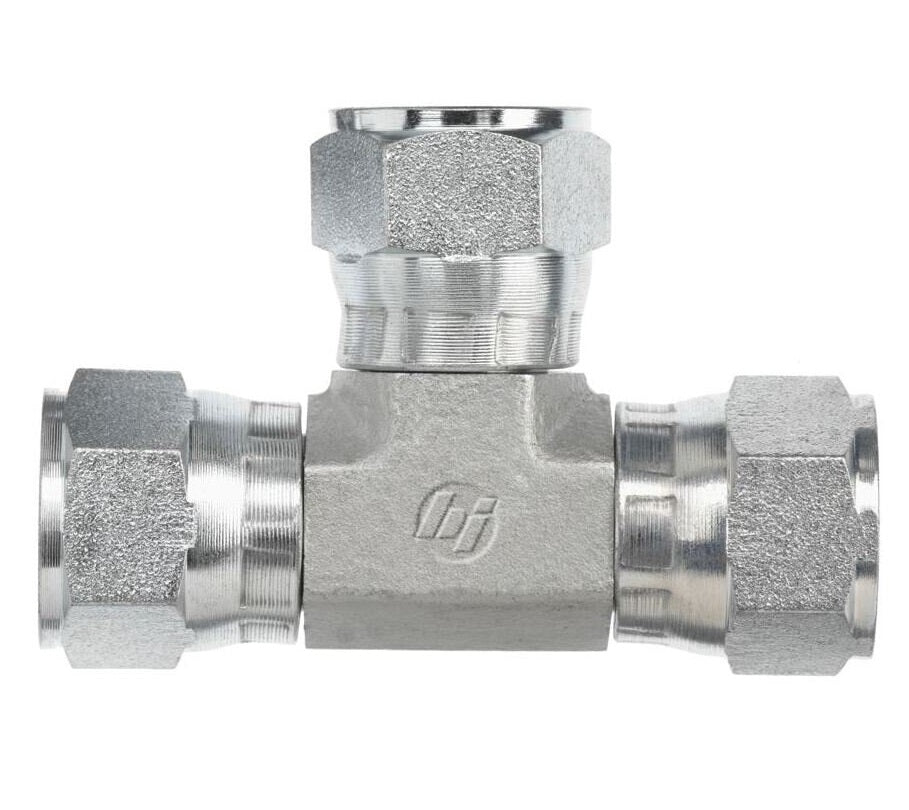

6606-04-04-04-FG by Brennan Inc. | -04 Female JIC Swivel x -04 Female JIC Swivel x -04 Female JIC Swivel | Tee | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 6606 - Female JIC Swivel x Female JIC Swivel x Female JIC Swivel Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $22.24 |
| 40–79 | $20.11 |
| 80+ | $17.75 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | A1 SAE37° | A2 SAE37° | A3 SAE37° | A1 Drill | A2 Drill | A3 Drill | M Length | M6 Length | C Hex | Y Flats |
| 6606-04-04-04-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.172" | 0.650" | 1.000" | 0.563" | 0.438" |
| 6606-06-06-06-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 0.297" | 0.870" | 1.250" | 0.688" | 0.562" |
| 6606-08-08-08-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 0.391" | 0.950" | 1.380" | 0.875" | 0.750" |
| 6606-10-10-10-FG | Forged Steel | 5/8" | 7/8-14" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 0.484" | 1.120" | 1.620" | 1.000" | 0.875" |
| 6606-12-12-12-FG | Forged Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 0.609" | 1.180" | 1.750" | 1.250" | 1.062" |
| 6606-16-16-16-FG | Forged Steel | 1" | 1-5/16-12" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 0.844" | 1.400" | 2.000" | 1.500" | 1.312" |
| 6606-04-04-04-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.172" | 0.650" | 1.000" | 0.563" | 0.438" |
| 6606-08-08-08-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 0.391" | 0.950" | 1.380" | 0.875" | 0.750" |
| 6606-12-12-12-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 0.609" | 1.180" | 1.750" | 1.250" | 1.062" |
| 6606-16-16-16-SS | Stainless Steel | 1" | 1-5/16-12" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 0.844" | 1.400" | 2.000" | 1.500" | 1.312" |
