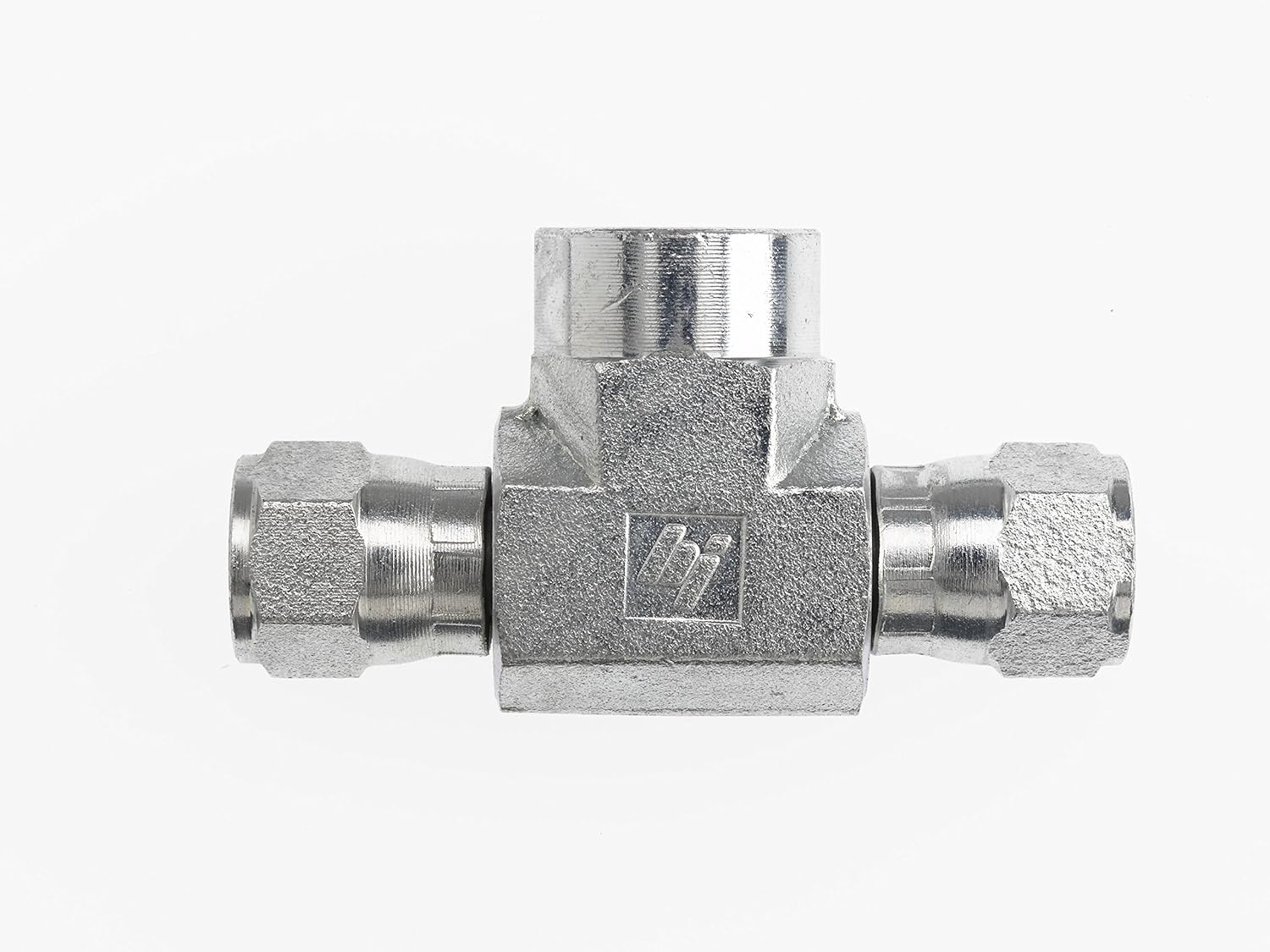

6605-04-04-04-FG by Brennan Inc. | -04 Female JIC Swivel x -04 Female JIC Swivel x -04 Female Pipe | Tee | Forged Steel

6605-04-04-04-FG by Brennan Inc. | -04 Female JIC Swivel x -04 Female JIC Swivel x -04 Female Pipe | Tee | Forged Steel

Sale price$31.88

Brennan Inc.
Tube Fittings & Adapters: 6605 - Female JIC Swivel x Female JIC Swivel x Female Pipe Tee
Buy More, Save More!
Quantity Price Each
10–39 $29.97
40–79 $27.10
80+ $23.91
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 1/4in Female JIC
  • 1/4in Female JIC
  • 1/4in Female NPTF
  • Some Ends Match
Material(s):
  • Steel
Part Number Material Tube O.D. A1 SAE37° A2 SAE37° B NPTF A1 Drill A2 Drill M4 Length M2 Length N Length C Hex Y Flats
6605-04-04-04-FG Forged Steel 1/4" 7/16-20" 7/16-20" 1/4-18" 0.172" 0.172" 0.830" 1.180" 0.880" 0.563" 0.750"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
