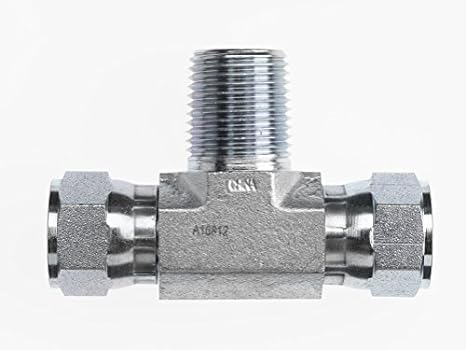

6604-08-08-08-FG by Brennan Inc. | -08 Female JIC Swivel x -08 Female JIC Swivel x -08 Male Pipe | Tee | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 6604 - Female JIC Swivel x Female JIC Swivel x Male Pipe Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $34.27 |
| 40–79 | $30.99 |
| 80+ | $27.35 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | A1 SAE37° | A2 SAE37° | B NPTF | A1 Drill | A2 Drill | B Drill | M4 Length | M2 Length | N Length | C Hex | Y Flats |
| 6604-04-04-04-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 1/4-18" | 0.172" | 0.172" | 0.281" | 0.790" | 1.130" | 1.090" | 0.562" | 0.562" |
| 6604-06-06-06-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 3/8-18" | 0.297" | 0.297" | 0.406" | 0.900" | 1.280" | 1.220" | 0.688" | 0.750" |
| 6604-08-08-08-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 1/2-14" | 0.391" | 0.391" | 0.531" | 1.080" | 1.510" | 1.470" | 0.875" | 0.875" |
