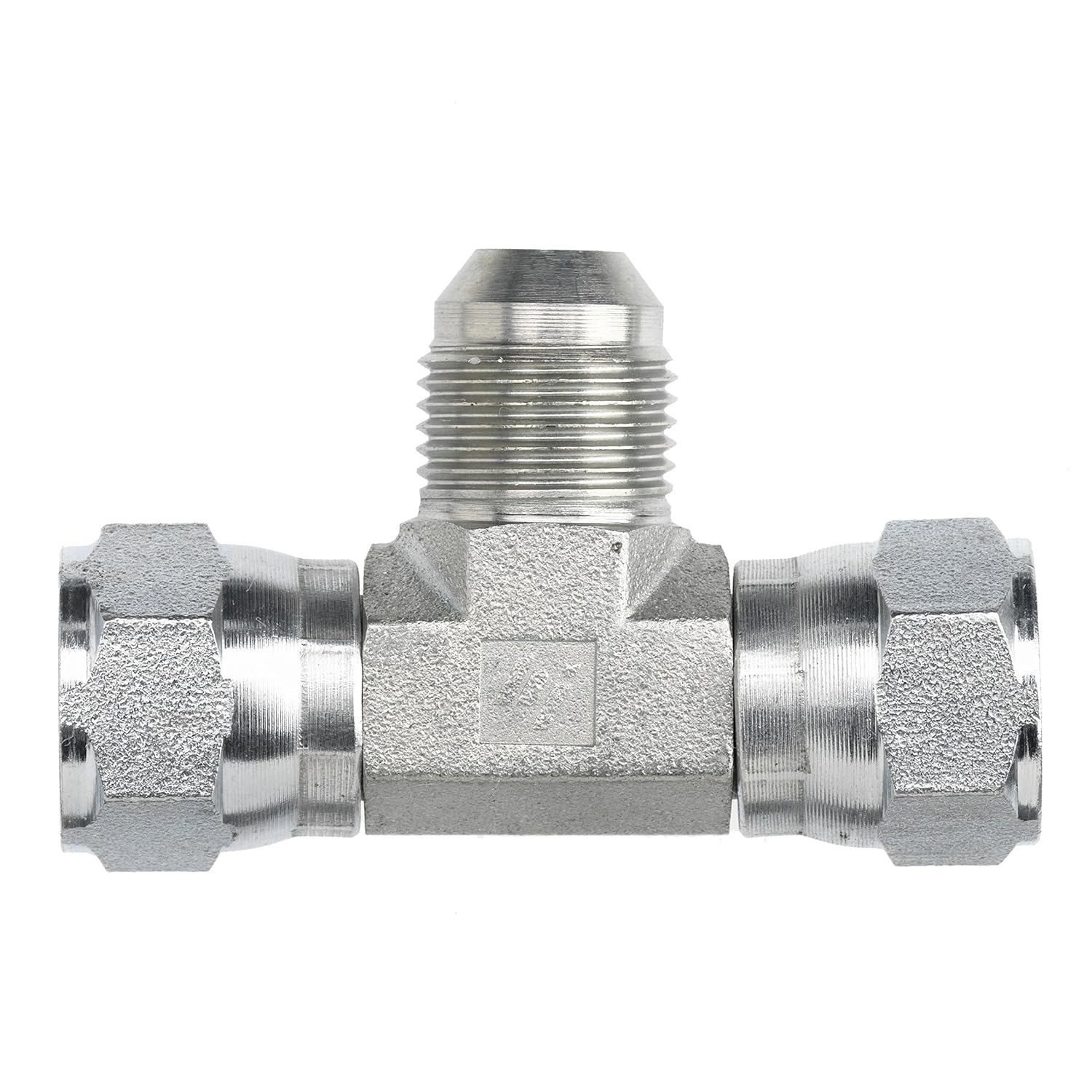

6603-06-06-06-FG by Brennan Inc. | -06 Female JIC Swivel x -06 Female JIC Swivel x -06 Male JIC | Tee | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 6603 - Female JIC Swivel x Female JIC Swivel x Male JIC Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $23.84 |
| 40–79 | $21.56 |
| 80+ | $19.02 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
 |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | A1 SAE37° | A2 SAE37° | A3 SAE37° | A1 Drill | A2 Drill | A3 Drill | M4 Length | M2 Length | M Length | C Hex | Y Flats |
| 6603-04-04-04-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.172" | 0.650" | 1.0029" | 0.890" | 0.563" | 0.438" |
| 6603-06-06-06-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 0.297" | 0.870" | 1.250" | 1.060" | 0.688" | 0.562" |
| 6603-08-08-08-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 0.391" | 0.950" | 1.380" | 1.250" | 0.875" | 0.750" |
| 6603-10-10-10-FG | Forged Steel | 5/8" | 7/8-14" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 0.484" | 1.120" | 1.620" | 1.450" | 1.000" | 0.875" |
| 6603-12-12-12-FG | Forged Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 0.609" | 1.180" | 1.750" | 1.660" | 1.250" | 1.062" |
| 6603-16-16-16-FG | Forged Steel | 1" | 1-5/16-12" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 0.844" | 1.400" | 2.000" | 1.810" | 1.500" | 1.312" |
