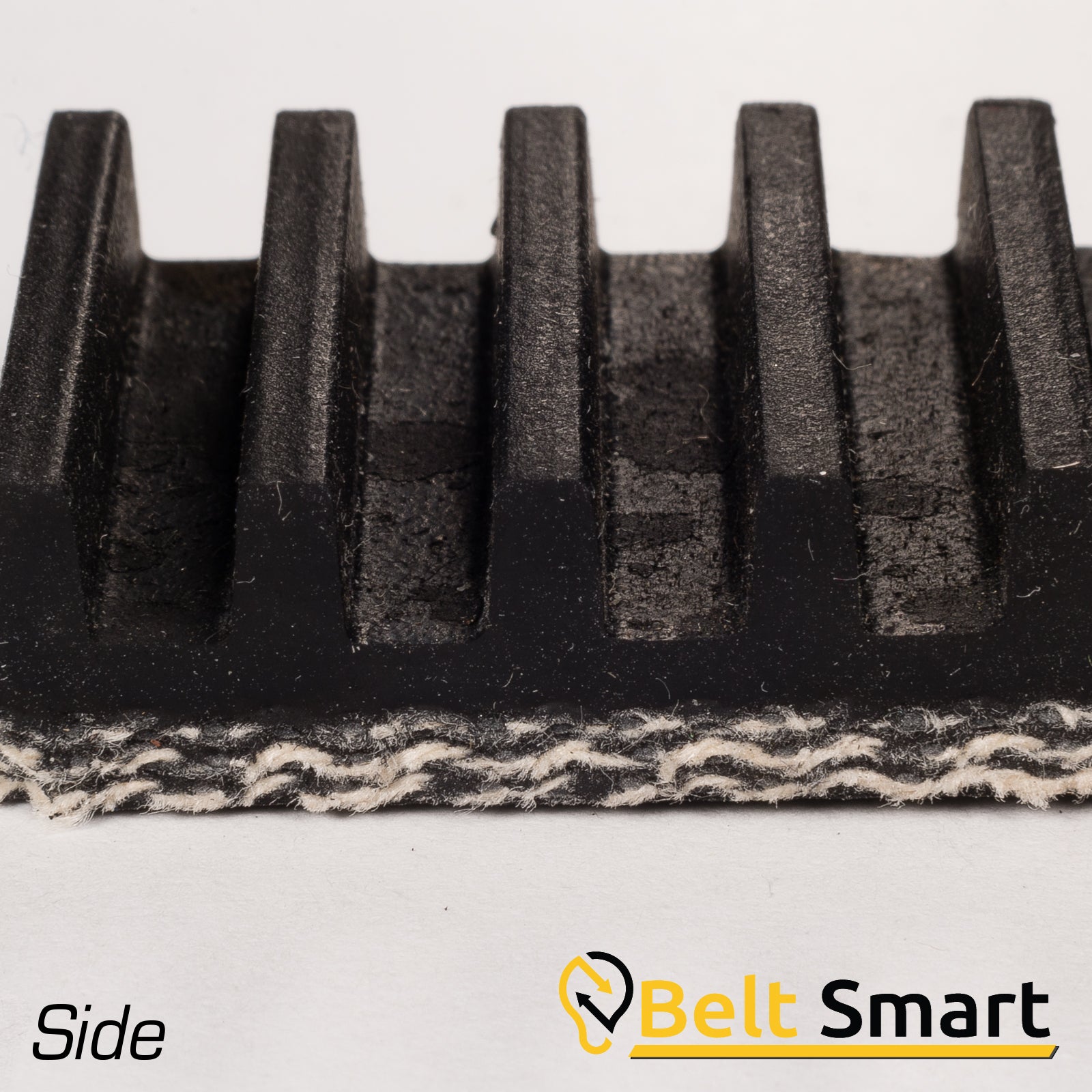

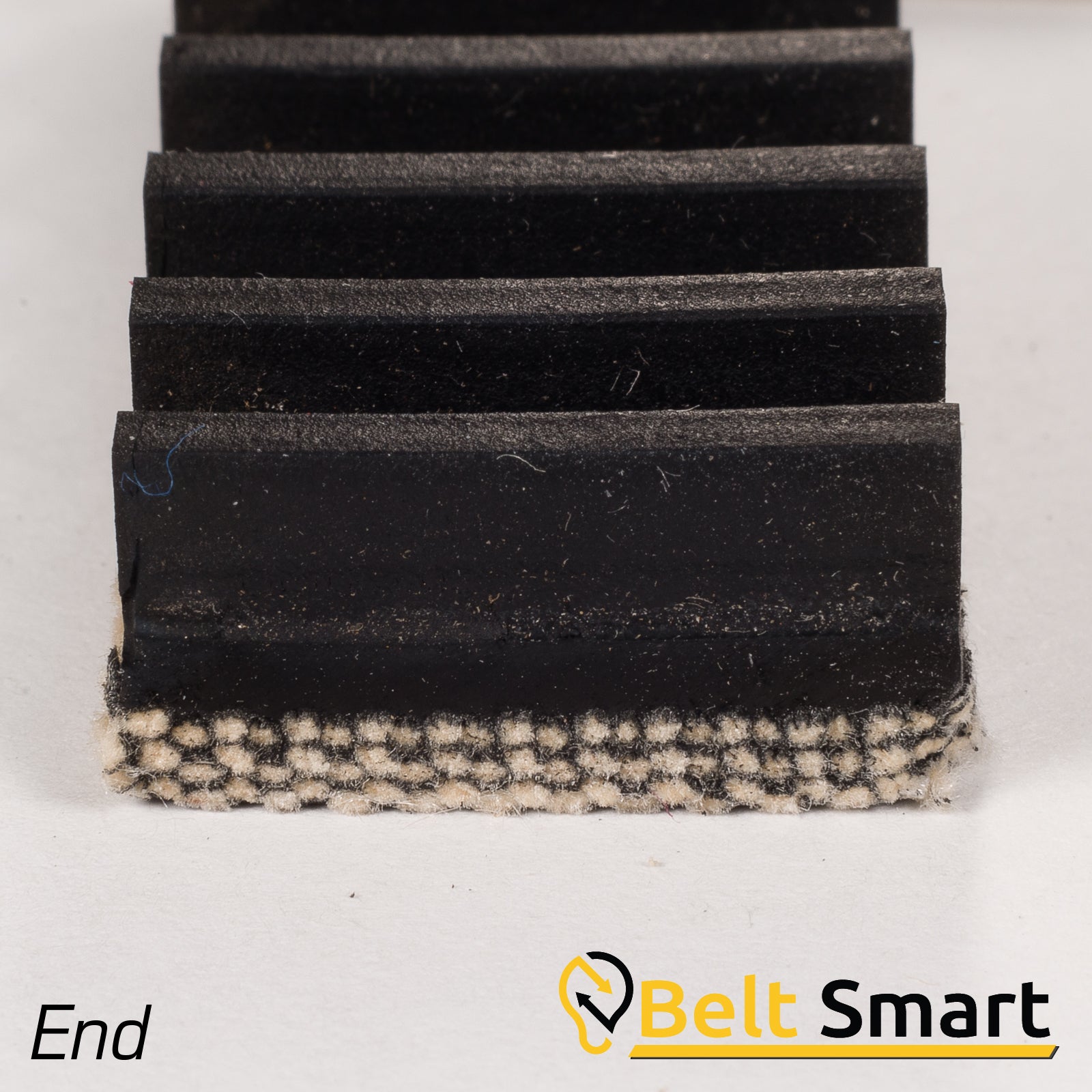

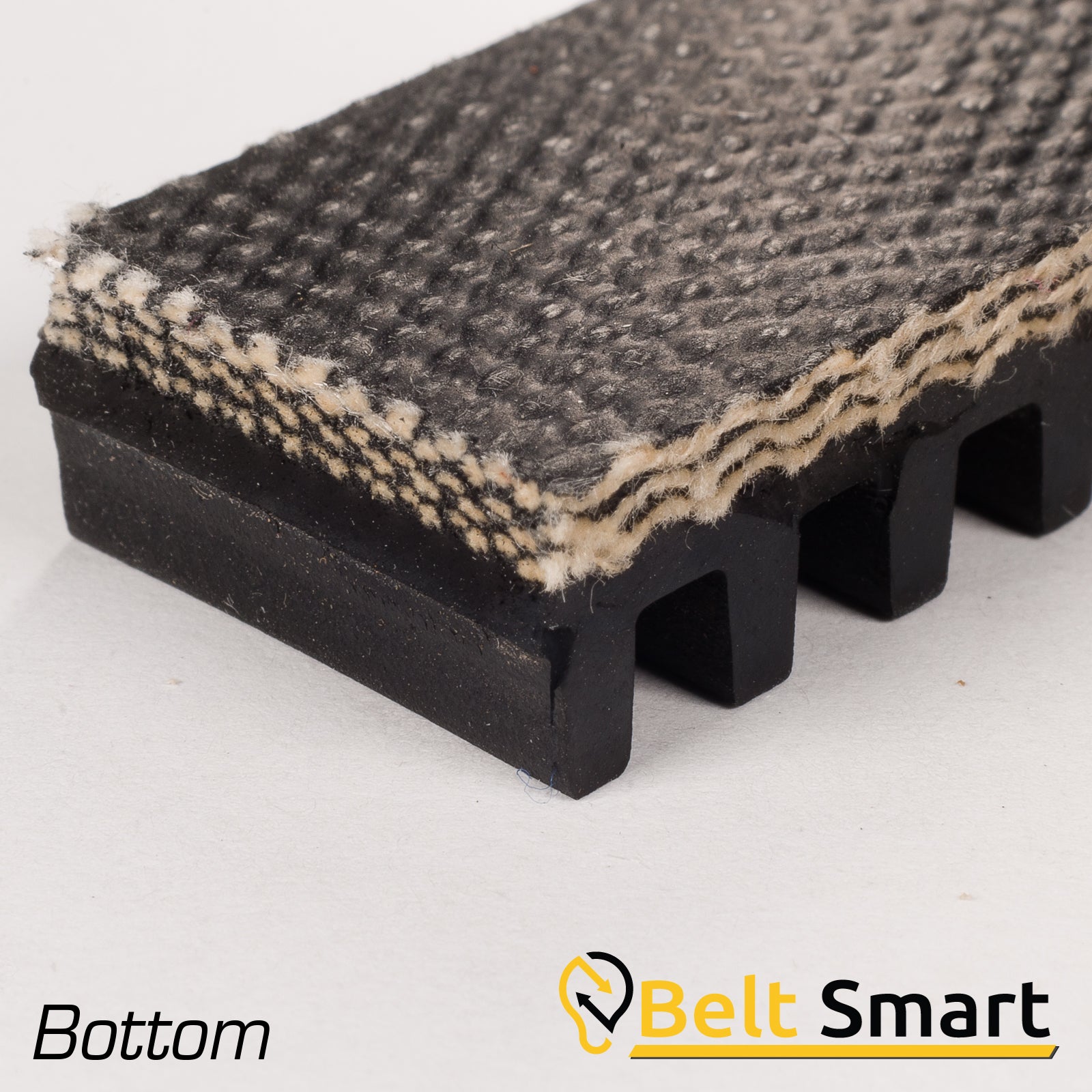

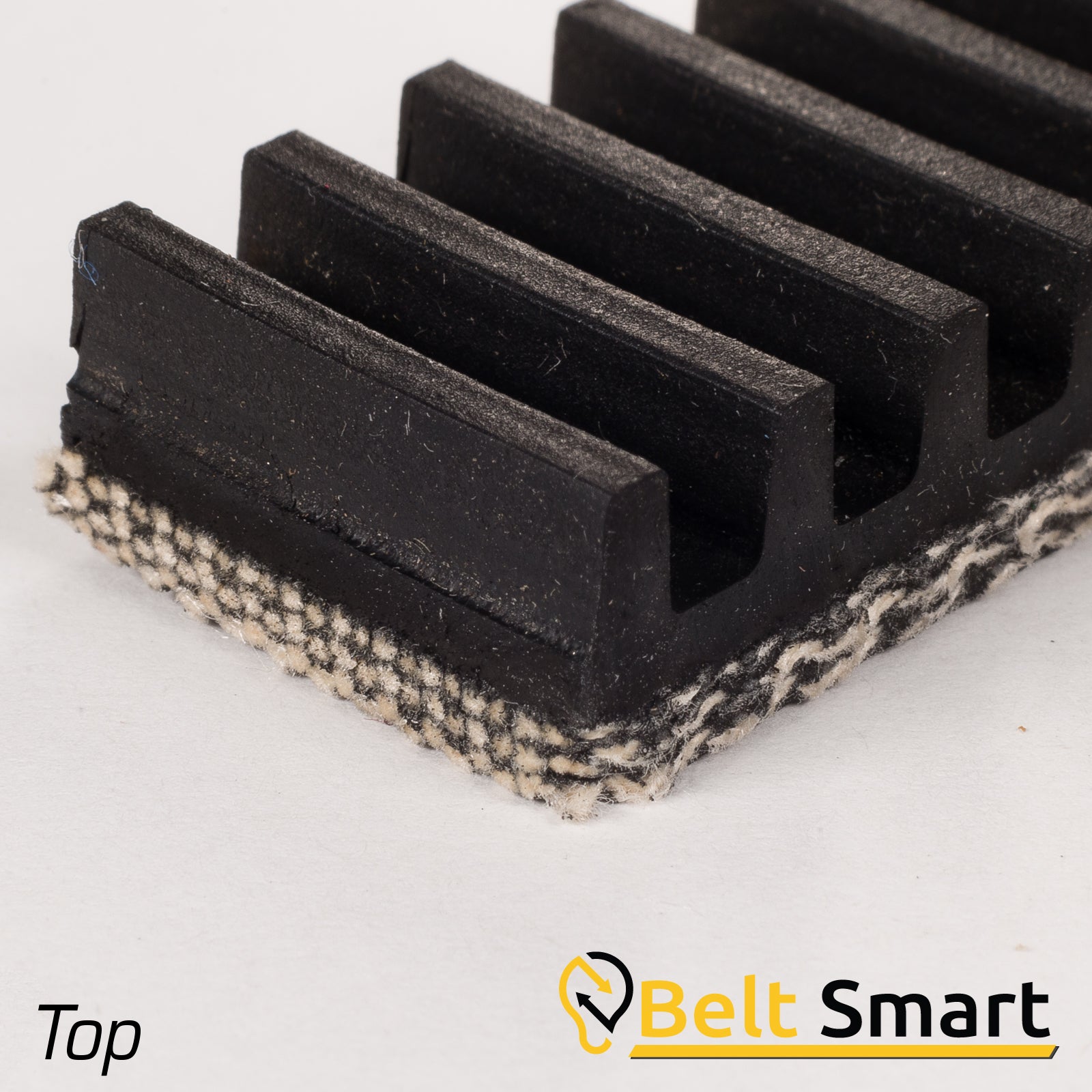

BS066 - #66 Beltservice 3 Ply CP30 Black Ribflex x FS Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Incline/Decline Conveying
Features:
Top surface features soft flexible parallel ribs enabling it to convey on the steepest inclines. Maintains full incline ability throughout life of the belt.

	3 Ply CP30 Black Ribflex x FS Pt No.: 66
Thickness	11/32"
Covers	Serrated Rectangle Ribs x FS
Carcass	32 oz. CN40
Working Tension per Inch Width	90 lbs.
Approx. Weight Lbs. Per Inch Width	.123 lbs.
Min. Pulley Diameter	3"
Temperature Range	-40 deg. F / 250 deg. F
Clipper Lace	#1
Alligator Lace	#7
Flexco Hinged	#125

FS = Friction Surface
