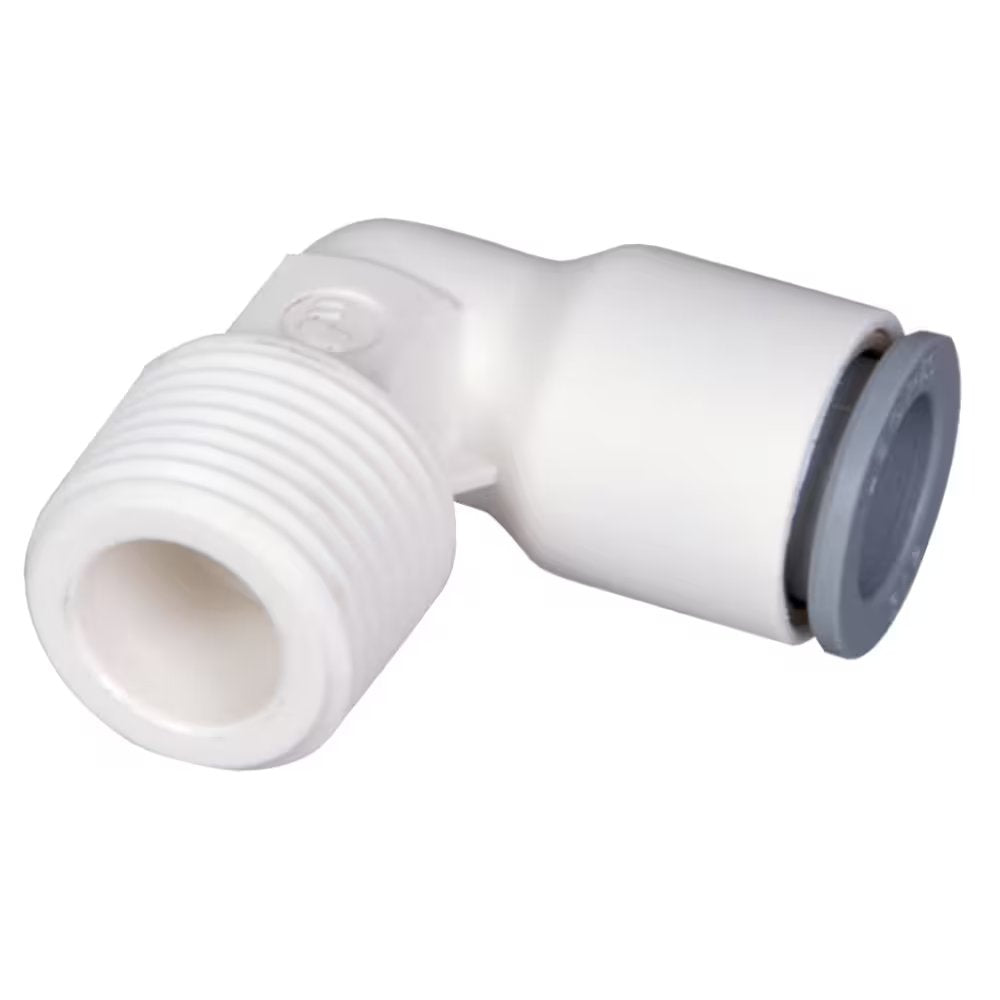

6579 56 13WP2 by Parker | Legris Fixed Fitting | 1/4" Tube Size x 1/4" Male BSPT Thread | 90° Elbow | Polymer | Pack of 10

6579 56 13WP2 by Parker | Legris Fixed Fitting | 1/4" Tube Size x 1/4" Male BSPT Thread | 90° Elbow | Polymer | Pack of 10

Sale price$28.21

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD C G H J L Kg
6579 56 13WP2 1/4" 1/4" 11 mm 26 mm 10 mm 18 mm .003 Kg

Thread without pre-coating.

Additional Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6579 Series
Shape:

90° Elbow

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
