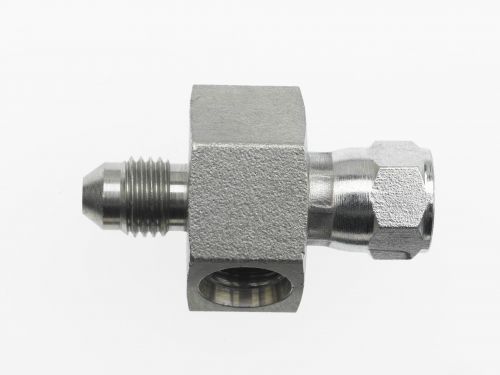

6564-12-12-04 by Brennan Inc. | -12 Male JIC x -12 Female JIC Swivel x -04 Female O-Ring Boss | Tee | Steel
Brennan Inc.
Test Point Fittings: 6564 - Male JIC x Female JIC Swivel x Female O-Ring Boss Tee (Testpoint)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $27.95 |
| 40–79 | $25.27 |
| 80+ | $22.30 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Special Properties:
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | TubeO.D. | AMale JIC | BFemale JIC Swivel | CFemale O-Ring Boss | ADrill | BDrill | L1Length | LLength | C1Hex | CHex |
| 6564-04-04-04 | Steel | 1/4" | 7/16-20" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 1.480" | 1.830" | 0.563" | 1.062" |
| 6564-06-06-04 | Steel | 3/8" | 9/16-18" | 9/16-18" | 7/16-20" | 0.297" | 0.297" | 1.570" | 1.950" | 0.688" | 1.062" |
| 6564-08-08-04 | Steel | 1/2" | 3/4-16" | 3/4-16" | 7/16-20" | 0.391" | 0.391" | 1.758" | 2.180" | 0.875" | 1.062" |
| 6564-10-10-04 | Steel | 5/8" | 7/8-14" | 7/8-14" | 7/16-20" | 0.484" | 0.484" | 1.900" | 2.400" | 1.000" | 1.125" |
| 6564-12-12-04 | Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 7/16-20" | 0.609" | 0.609" | 2.020" | 2.590" | 1.250" | 1.250" |
| 6564-16-16-04 | Steel | 1" | 1-5/16-12" | 1-5/16-12" | 7/16-20" | 0.844" | 0.844" | 2.250" | 2.850" | 1.500" | 1.500" |
| 6564-20-20-04 | Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 7/16-20" | 1.078" | 1.078" | 2.440" | 3.070" | 2.000" | 1.750" |
| 6564-24-24-04 | Steel | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 7/16-20" | 1.312" | 1.312" | 2.500" | 3.240" | 2.250" | 2.125" |
