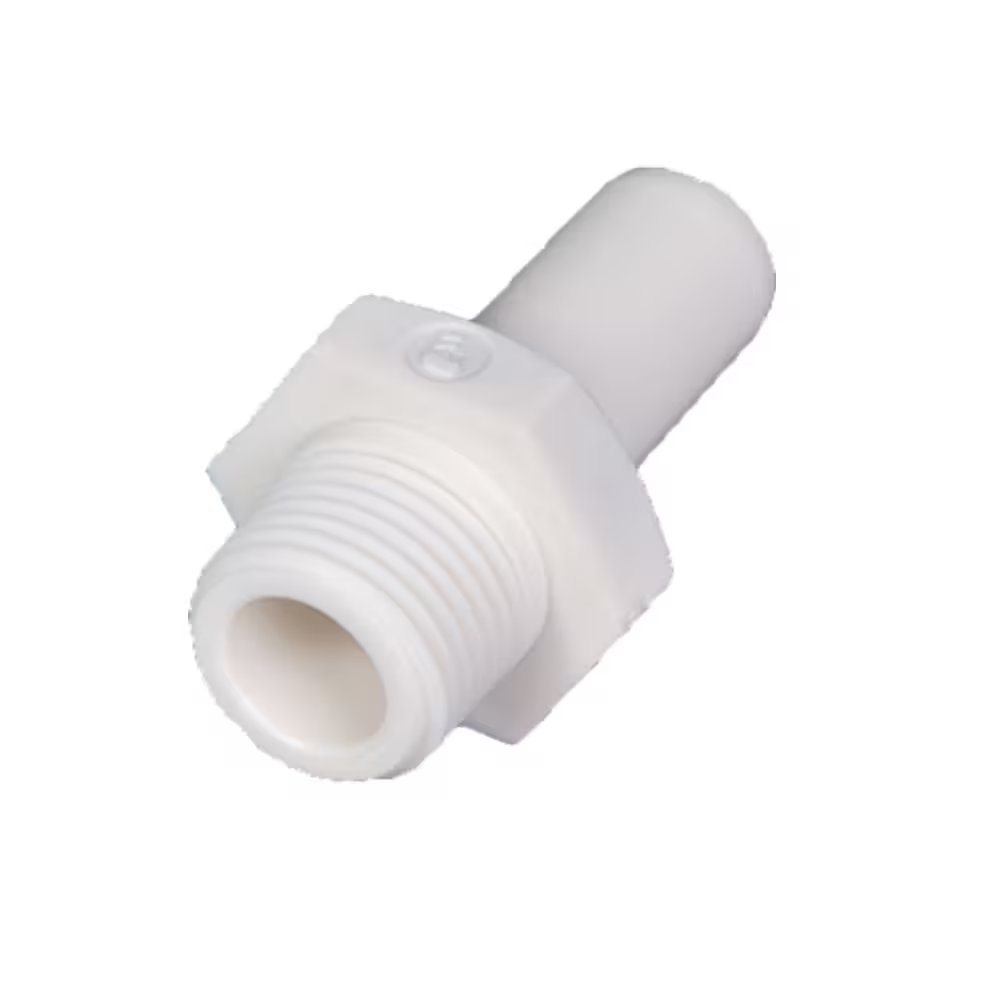

6521 12 21WP2 by Parker | Legris Stud Standpipe | 12 mm Tube Size x 1/2" Male BSPT Standpipe Thread | 22 mm hex | Straight | Polymer | Pack of 5

6521 12 21WP2 by Parker | Legris Stud Standpipe | 12 mm Tube Size x 1/2" Male BSPT Standpipe Thread | 22 mm hex | Straight | Polymer | Pack of 5

Sale price$11.58

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6521 Stud Standpipe, Male BSPT Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–39 $10.89
40–79 $9.84
80+ $8.69
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6325 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD C F H Kg
6521 06 10WP2 6 mm 1/8" 13 mm 19 mm .002 Kg
6521 06 13WP2 6 mm 1/4" 14 mm 19 mm .003 Kg
6521 06 17WP2 6 mm 3/8" 17 mm 19 mm .004 Kg
6521 08 10WP2 8 mm 1/8" 19 mm 23 mm .003 Kg
6521 08 13WP2 8 mm 1/4" 19 mm 23 mm .004 Kg
6521 08 17WP2 8 mm 3/8" 19 mm 23 mm .004 Kg
6521 10 13WP2 10 mm 1/4" 19 mm 25 mm .004 Kg
6521 10 17WP2 10 mm 3/8" 19 mm 25 mm .005 Kg
6521 10 21WP2 10 mm 1/2" 22 mm 25 mm .008 Kg
6521 12 17WP2 12 mm 3/8" 22 mm 28 mm .005 Kg
6521 12 21WP2 12 mm 1/2" 22 mm 28 mm .007 Kg

Thread without pre-coating.
