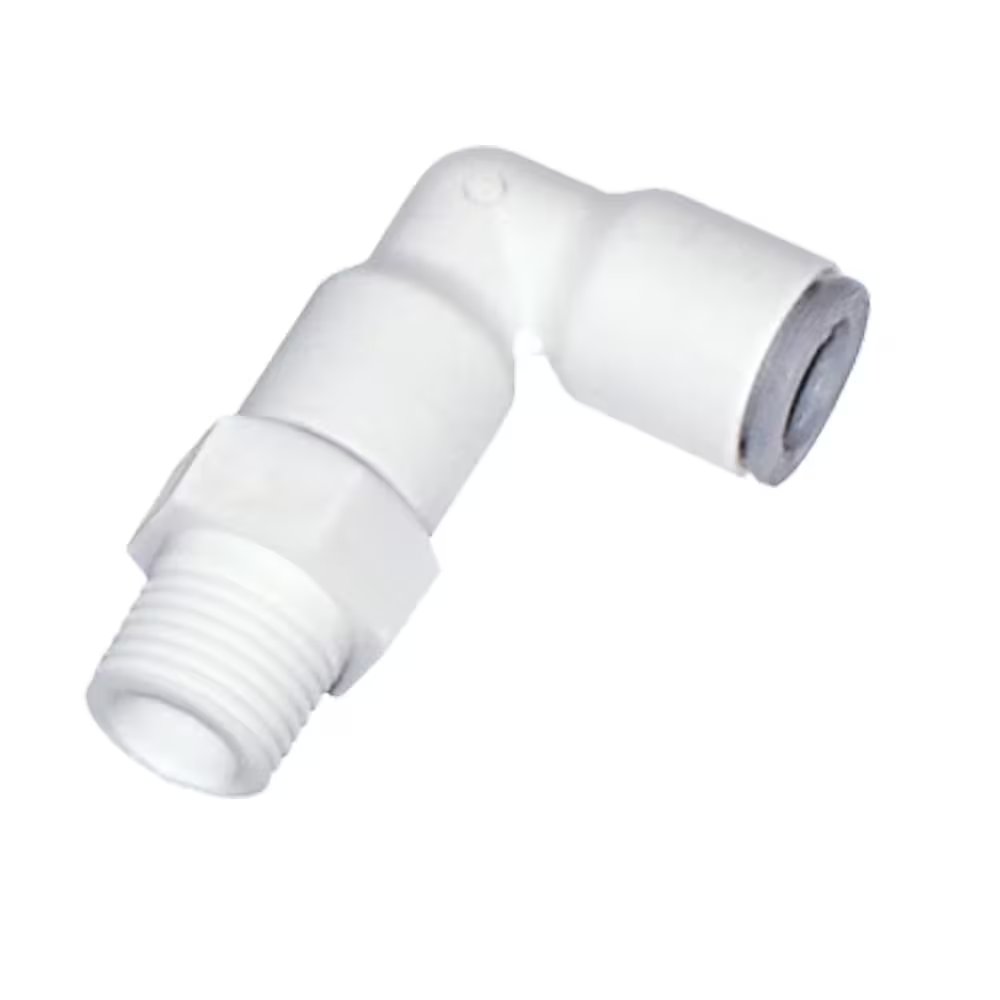

6509 62 18WP2 by Parker | Legris LIQUIfit® Threaded Fitting | 1/2" Push-to-Connect x 3/8" Male NPTF Thread | 1.83" Width | 90° Elbow | Nylon | Pack of 4
by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6509 Stud Elbow, Male NPTF Thread
Package Quantity: 4 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $24.00 |
| 40–79 | $21.70 |
| 80+ | $19.15 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Advantages: |
|
||||||||
| Regulations: |
|
||||||||
| Component Materials: |
|
||||||||
| Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range |
 |
||||||||
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | F | G | H (mm) | L (mm) | H (in) | L (in) | Kg |
| 6509 56 11WP2 | 1/4" | 1/8" | 1/2" | 11 mm | 28 mm | 23.5 mm | - | - | .003 Kg |
| 6509 56 14WP2 | 1/4" | 1/4" | 9/16" | 11 mm | 28 mm | 23.5 mm | - | - | .004 Kg |
| 6509 56 18WP2 | 1/4" | 3/8" | 3/4" | 11 mm | 28.5 mm | 23.5 mm | - | - | .006 Kg |
| 6509 60 14WP2 | 3/8" | 1/4" | 3/4" | - | - | - | 1.50" | 1.34" | - |
| 6509 60 18WP2 | 3/8" | 3/8" | 3/4" | - | - | - | 1.50" | 1.34" | - |
| 6509 62 18WP2 | 1/2" | 3/8" | 15/16" | - | - | - | 1.99" | 1.83" | - |
| 6509 62 22WP2 | 1/2" | 1/2" | 15/16" | - | - | - | 1.99" | 1.83" | - |
Thread without pre-coating, the body swivels for positioning purposes.
