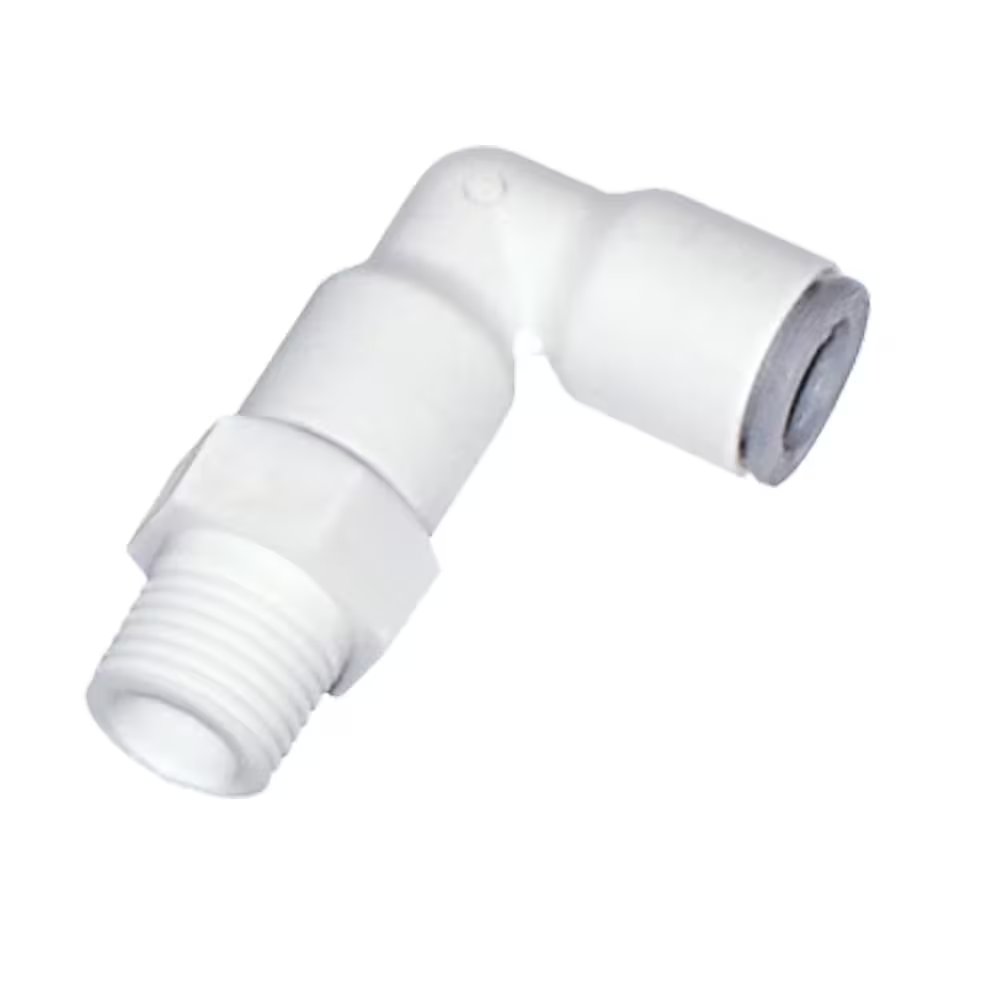

6509 08 10WP2 by Parker | Legris Stud Swivel Fitting | 8 mm Tube Size x 1/8" Male BSPT Thread | 90° Elbow | Polymer | Pack of 10

6509 08 10WP2 by Parker | Legris Stud Swivel Fitting | 8 mm Tube Size x 1/8" Male BSPT Thread | 90° Elbow | Polymer | Pack of 10

Sale price$58.80

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6509 Stud Elbow, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $55.27
40–79 $49.98
80+ $44.10
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6509 Series
Shape:

90° Elbow
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD C F G H L Kg
6509 06 10WP2 6 mm 1/8" 13 mm 10.5 mm 28 mm 24 mm .037 Kg
6509 06 13WP2 6 mm 1/4" 14 mm 10.5 mm 28 mm 24 mm .007 Kg
6509 06 17WP2 6 mm 3/8" 17 mm 10.5 mm 28 mm 24 mm .008 Kg
6509 08 10WP2 8 mm 1/8" 19 mm 13.5 mm 34 mm 29.5 mm .010 Kg
6509 08 13WP2 8 mm 1/4" 19 mm 13.5 mm 34 mm 29.5 mm .011 Kg
6509 08 17WP2 8 mm 3/8" 19 mm 13.5 mm 34 mm 29.5 mm .011 Kg
6509 10 13WP2 10 mm 1/4" 19 mm 16 mm 38 mm 34.5 mm .019 Kg
6509 10 17WP2 10 mm 3/8" 19 mm 16 mm 38 mm 34.5 mm .020 Kg
6509 10 21WP2 10 mm 1/2" 22 mm 16 mm 38 mm 34.5 mm .023 Kg
6509 12 17WP2 12 mm 3/8" 22 mm 19 mm 44 mm 40 mm .022 Kg
6509 12 21WP2 12 mm 1/2" 22 mm 19 mm 44 mm 40 mm .024 Kg

Thread without pre-coating; the body swivels for positioning purposes

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
