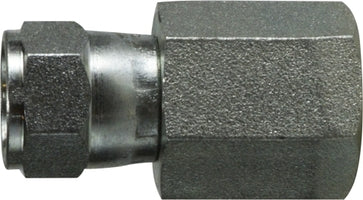

6506106 by Midland | Hydraulic JIC Swivel to Female Pipe | 7/8-14 Female JIC 37° Flare x 3/8" Female Pipe | Adapter | Steel
Midland Industries
Hydraulic Adapters: JIC Swivel to Female Pipe Adapter - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.47 |
| 40–79 | $10.37 |
| 80+ | $9.15 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Technical Info: | |||
|---|---|---|---|
| Crossover Series: | ||
|---|---|---|
| 6506 | 2242 | 1215 |
 |
|||
|---|---|---|---|
| Part Number | Female JIC 37° Flare (1) |
Female JIC 37° Flare Thread (1) |
Female Pipe (2) |
| 650642 (6506-4-2) |
1/4" | 7/16-20 | 1/8" |
| 650644 (6506-4-4) |
1/4" | 7/16-20 | 1/4" |
| 650646 | 1/4" | 7/16-20 | 3/8" |
| 650664 (6506-6-4) |
3/8" | 9/16-18 | 1/4" |
| 650666 (6506-6-6) |
3/8" | 9/16-18 | 3/8" |
| 650668 (6506-6-8) |
3/8" | 9/16-18 | 1/2" |
| 650686 (6506-8-6) |
1/2" | 3/4-16 | 3/8" |
| 650688 (6506-8-8) |
1/2" | 3/4-16 | 1/2" |
| 6506106 (6506-10-6) |
5/8" | 7/8-14 | 3/8" |
| 6506108 | 5/8" | 7/8-14 | 1/2" |
| 65061012 | 5/8" | 7/8-14 | 3/4" |
| 6506128 | 3/4" | 1-1/16-12 | 1/2" |
| 65061212 (6506-12-12) |
3/4" | 1-1/16-12 | 3/4" |
| 65061616 (6506-16-16) |
1" | 1-5/16-12 | 1" |
| 65062020 | 1-1/4" | 1-5/8-12 | 1-1/4" |
| 65063232 | 2" | 2-1/2-12 | 2" |
