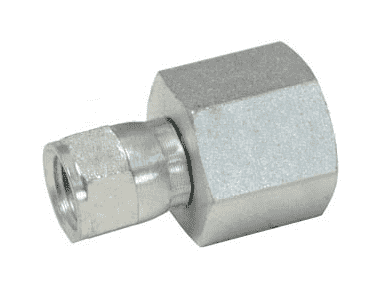

6506-8-8 Dixon Valve Zinc Plated Steel 3/4"-16 Female 37 deg. JIC Swivel x 1/2"-14 Female NPTF Pipe

6506-8-8 Dixon Valve Zinc Plated Steel 3/4"-16 Female 37 deg. JIC Swivel x 1/2"-14 Female NPTF Pipe

Sale price$12.31

SAE / JIC Fittings - Female 37 deg. JIC Swivel x Female NPTF Pipe - Zinc Plated Steel
Buy More, Save More!
Quantity Price Each
10–39 $11.57
40–79 $10.46
80+ $9.23
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Female JIC
  • 1/2in Female NPTF
Material(s):
  • Zink-Plated Steel
Features:
  • N/A
Part Number SAE 37 deg. JIC Female Swivel Female NPTF Working Pressure Weight (Lbs.)
6506-4-4 7/16"-20 1/4"-18 4500 PSI 0.1000
6506-4-6 7/16"-20 3/8"-18 4000 PSI 0.1600
6506-6-4 9/16"-18 1/4"-18 4000 PSI N/A
6506-6-6 9/16"-18 3/8"-18 4000 PSI N/A
6506-8-8 3/4"-16 1/2"-14 3000 PSI 0.2800
6506-10-8 7/8"-14 1/2"-14 3000 PSI N/A
6506-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.5100
6506-16-16 1-5/16"-12 1"-11-1/2 2000 PSI 0.6600

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
