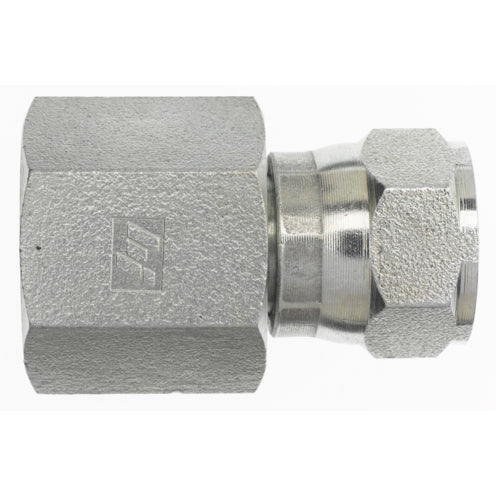

6506-08-06 by Brennan Inc. | -08 Female Pipe x -06 Female JIC Swivel | Straight | Steel
Brennan Inc.
Tube Fittings & Adapters: 6506 - Female Pipe x Female JIC Swivel Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.63 |
| 40–79 | $15.95 |
| 80+ | $14.07 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | TUBE O.D. | B NPTF | A SAE37° | ADrill | L2 Length | L5 Length | C Hex | C4 Hex |
| 6506-02-04 | Steel | 1/4" | 1/8-27" | 7/16-20" | 0.172" | 0.920" | 1.260" | 0.562" | 0.562" |
| 6506-04-04 | Steel | 1/4" | 1/4-18" | 7/16-20" | 0.172" | 1.17" | 1.52" | 0.563" | 0.750" |
| 6506-04-05 | Steel | 5/16" | 1/4-18" | 1/2-20" | 0.234" | 1.21" | 1.59" | 0.625" | 0.750" |
| 6506-06-06 | Steel | 3/8" | 3/8-18" | 9/16-18" | 0.297" | 1.310" | 1.685" | 0.688" | 0.875" |
| 6506-06-08 | Steel | 1/2" | 3/8-18" | 3/4-16" | 0.391" | 1.360" | 1.780" | 0.875" | 0.875" |
| 6506-08-06 | Steel | 3/8" | 1/2-14" | 9/16-18" | 0.297" | 1.54" | 1.92" | 0.688" | 1.125" |
| 6506-08-08 | Steel | 1/2" | 1/2-14" | 3/4-16" | 0.391" | 1.480" | 1.910" | 0.875" | 1.125" |
| 6506-08-10 | Steel | 5/8" | 1/2-14" | 7/8-14" | 0.484" | 1.62" | 2.12" | 1.000" | 1.125" |
| 6506-12-12 | Steel | 3/4" | 3/4-14" | 1-1/16-12" | 0.609" | 1.72" | 2.29" | 1.250" | 1.375" |
| 6506-16-16 | Steel | 1" | 1-11-1/2" | 1-5/16-12" | 0.844" | 2.02" | 2.614" | 1.500" | 1.625" |
| 6506-20-20 | Steel | 1-1/4" | 1-1/4-11-1/2" | 1-5/8-12" | 1.078" | 2.200" | 2.825" | 2.000" | 2.000" |
| 6506-24-24 | Steel | 1-1/2" | 1-1/2-11-1/2" | 1-7/8-12" | 1.312" | 2.270" | 2.990" | 2.250" | 2.375" |
| 6506-32-32 | Steel | 2" | 2-11-1/2" | 2-1/2-12" | 1.781" | 2.26" | 3.12" | 2.875" | 2.875" |
| 6506-02-04-SS | Stainless Steel | 1/4" | 1/8-27" | 7/16-20" | 0.172" | 0.920" | 1.260" | 0.562" | 0.562" |
| 6506-04-04-SS | Stainless Steel | 1/4" | 1/4-18" | 7/16-20" | 0.172" | 1.17" | 1.52" | 0.563" | 0.750" |
| 6506-04-05-SS | Stainless Steel | 5/16" | 1/4-18" | 1/2-20" | 0.234" | 1.21" | 1.59" | 0.625" | 0.750" |
| 6506-04-06-SS | Stainless Steel | 3/8" | 1/4-18" | 9/16-18" | 0.297" | 1.255" | 1.630" | 0.688" | 0.750" |
| 6506-06-04-SS | Stainless Steel | 1/4" | 3/8-18" | 7/16-20" | 0.172" | 1.24" | 1.59" | 0.563" | 0.875" |
| 6506-06-06-SS | Stainless Steel | 3/8" | 3/8-18" | 9/16-18" | 0.297" | 1.310" | 1.685" | 0.688" | 0.875" |
| 6506-06-08-SS | Stainless Steel | 1/2" | 3/8-18" | 3/4-16" | 0.391" | 1.360" | 1.780" | 0.875" | 0.875" |
| 6506-08-06-SS | Stainless Steel | 3/8" | 1/2-14" | 9/16-18" | 0.297" | 1.54" | 1.92" | 0.688" | 1.125" |
| 6506-08-08-SS | Stainless Steel | 1/2" | 1/2-14" | 3/4-16" | 0.391" | 1.480" | 1.910" | 0.875" | 1.125" |
| 6506-08-10-SS | Stainless Steel | 5/8" | 1/2-14" | 7/8-14" | 0.484" | 1.62" | 2.12" | 1.000" | 1.125" |
| 6506-08-12-SS | Stainless Steel | 3/4" | 1/2-14" | 1-1/16-12" | 0.609" | 1.660" | 2.230" | 1.250" | 1.125" |
| 6506-12-10-SS | Stainless Steel | 5/8" | 3/4-14" | 7/8-14" | 0.484" | 1.680" | 2.180" | 1.000" | 1.375" |
| 6506-12-12-SS | Stainless Steel | 3/4" | 3/4-14" | 1-1/16-12" | 0.609" | 1.72" | 2.29" | 1.250" | 1.375" |
| 6506-16-16-SS | Stainless Steel | 1" | 1-11-1/2" | 1-5/16-12" | 0.844" | 2.02" | 2.614" | 1.500" | 1.625" |
| 6506-20-20-SS | Stainless Steel | 1-1/4" | 1-1/4-11-1/2" | 1-5/8-12" | 1.078" | 2.200" | 2.825" | 2.000" | 2.000" |
| 6506-24-24-SS | Stainless Steel | 1-1/2" | 1-1/2-11-1/2" | 1-7/8-12" | 1.312" | 2.270" | 2.990" | 2.250" | 2.375" |
| 6506-32-32-SS | Stainless Steel | 2" | 2-11-1/2" | 2-1/2-12" | 1.781" | 2.26" | 3.12" | 2.875" | 2.875" |
