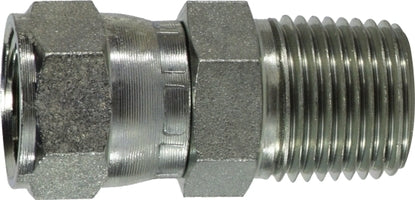

6505128 by Midland | Hydraulic JIC Swivel to Male Pipe | 3/4" Female JIC 37° Flare x 1/2" Male Pipe | Adapter | Steel
Midland Industries
Hydraulic Adapters: JIC Swivel to Male Pipe Adapter - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.39 |
| 40–79 | $12.10 |
| 80+ | $10.68 |
Discounts applied in cart/checkout.
Product Data:
Ends Configuration:
Material(s):
Special Properties:
| Technical Info: | |||
|---|---|---|---|
| Crossover Series: | ||||
|---|---|---|---|---|
| 6505 | 2018 | F6X | 1211 | 9100R |
 |
|||
|---|---|---|---|
| Part Number | Female JIC 37° Flare (1) |
Female JIC 37° Flare Thread (1) |
Male Pipe (2) |
| 650524 | 1/8" | 5/16-24 | 1/4" |
| 650542 (6505-4-2) |
1/4" | 7/16-20 | 1/8" |
| 650544 (6505-4-4) |
1/4" | 7/16-20 | 1/4" |
| 650546 (6505-4-6) |
1/4" | 7/16-20 | 3/8" |
| 650552 | 5/16" | 1/2-20 | 1/8" |
| 650554 | 5/16" | 1/2-20 | 1/4" |
| 650556 | 5/16" | 1/2-20 | 3/8" |
| 650562 | 3/8" | 9/16-18 | 1/8" |
| 650564 (6505-6-4) |
3/8" | 9/16-18 | 1/4" |
| 650566 (6505-6-6) |
3/8" | 9/16-18 | 3/8" |
| 650586 (6505-8-6) |
1/2" | 3/4-16 | 3/8" |
| 650588 (6505-8-8) |
1/2" | 3/4-16 | 1/2" |
| 6505-10-06 | 5/8" | 7/8-14 | 3/8" |
| 6505108 | 5/8" | 7/8-14 | 1/2" |
| 65051012 | 5/8" | 7/8-14 | 3/4" |
| 6505128 | 3/4" | 1-1/16-12 | 1/2" |
| 65051212 (6505-12-12) |
3/4" | 1-1/16-12 | 3/4" |
| 65051612 |
1" | 1-5/16-12 | 3/4" |
| 65051616 (6505-16-16) |
1" | 1-5/16-12 | 1" |
| 65052424 (6505-24-24) |
1-1/2" | 1-7/8-12 | 1-1/2" |
| 65053232 | 2" | 2-1/2-12 | 2" |
