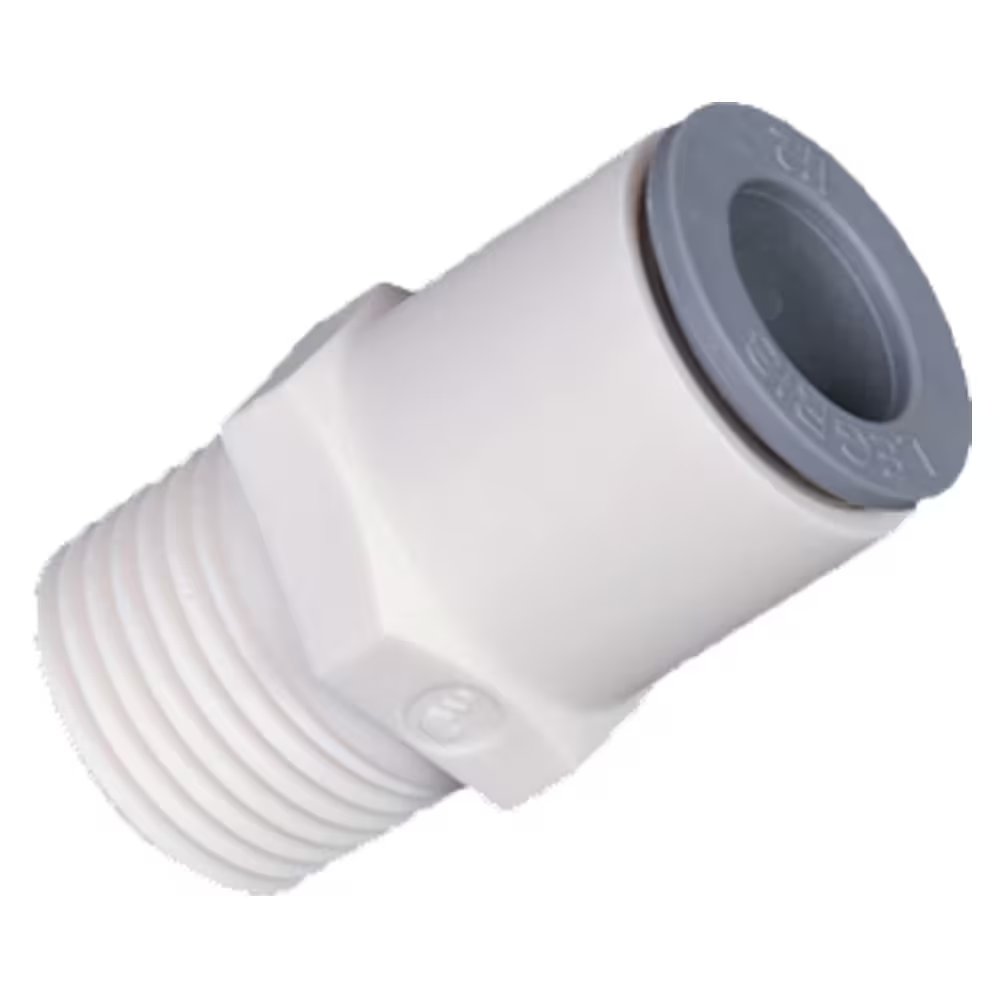

6505 60 17WP2 by Parker | Legris Stud Fitting | 3/8" Tube Size x 3/8" Male BSPT Thread | 19 mm Hex | Straight | Polymer | Pack of 10

6505 60 17WP2 by Parker | Legris Stud Fitting | 3/8" Tube Size x 3/8" Male BSPT Thread | 19 mm Hex | Straight | Polymer | Pack of 10

Sale price$57.47

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6505 Stud Fitting, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $54.02
40–79 $48.85
80+ $43.10
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LIQUIfit®
Series:
  • 6505 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD C F F1 H Kg
6505 56 10WP2 1/4" 1/8" 11 mm 5 mm 17 mm .002 Kg
6505 56 13WP2 1/4" 1/4" 14 mm 5 mm 17 mm .003 Kg
6505 60 17WP2 3/8" 3/8" 19 mm 7 mm 22 mm .006 Kg

5/32” (4mm) and 5/16” (8mm) are available

Thread without pre-coating
