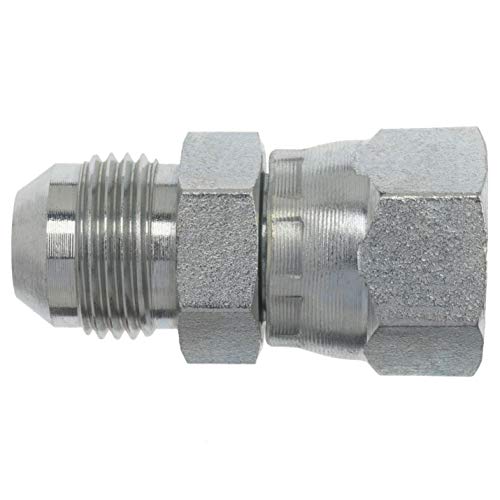

6504-32-32 by Brennan Inc. | -32 Male JIC x -32 Female JIC Swivel | Straight | Steel
Brennan Inc.
Tube Fittings & Adapters: 6504 - Male JIC x Female JIC Swivel Straight
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1 SAE37° | B2 SAE37° | B1Drill | B2Drill | L Length | L5 Length | C1 Hex | C Hex |
| 6464-08-08 | Steel | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.42" | 1.83" | 0.875" | 0.812" |
| 6504-12-12 | Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.770" | 2.330" | 1.250" | 1.125" |
| 6504-16-16 | Steel | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 1.91" | 2.50" | 1.500" | 1.375" |
| 6504-20-16 | Steel | - | - | - | - | - | - | - | - | - |
| 6504-20-20 | Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1.078" | 1.078" | 2.070" | 2.700" | 2.000" | 1.687" |
| 6504-24-24 | Steel | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1.312" | 1.312" | 2.370" | 3.104" | 2.250" | 2.000" |
| 6504-32-32 | Steel | 2" | 2-1/2-12" | 2-1/2-12" | 1.781" | 1.781" | 3.700" | 2.862" | 2.875" | 2.625" |
| 6504-04-04-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 1.160" | 1.511" | 0.562" | 0.500" |
| 6504-06-06-SS | Stainless Steel | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 1.270" | 1.640" | 0.688" | 0.625" |
| 6464-08-08-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.42" | 1.83" | 0.875" | 0.812" |
| 6504-12-12-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.770" | 2.330" | 1.250" | 1.125" |
| 6504-16-16-SS | Stainless Steel | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 1.91" | 2.50" | 1.500" | 1.375" |
