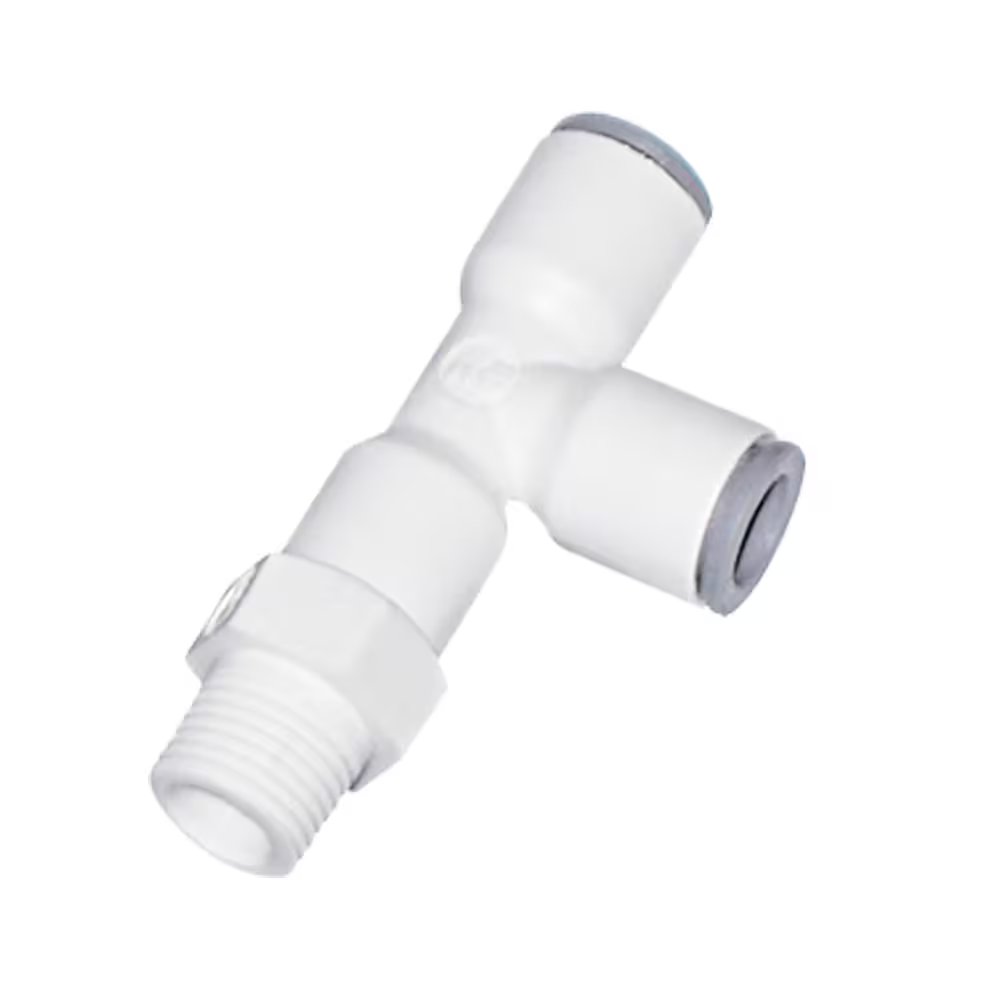

6503 62 18WP2 by Parker | LIQUIfit® Threaded Fitting | 1/2" Push-to-Connect x 3/8" Male NPTF Thread | Swivel | Tee | Nylon | Pack of 4
by Parker Hannifin
LIQUIfit Fittings:6503 Swivel Run Tee Inch Tube to NPTF
Package Quantity: 4 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $24.99 |
| 40–79 | $22.60 |
| 80+ | $19.94 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | Up to 230 PSI (16 bar) |
| Temperature Range: | +35° to +200° F (+1.7° to +93.3° C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | C NPTF | F | H | H1 | L |
| 6503 56 11WP2 | 1/4" | 1/8" | 1/2" | 1.60" | .88" | .71" |
| 6503 56 14WP2 | 1/4" | 1/4" | 9/16" | 1.60" | .88" | .71" |
| 6503 56 18WP2 | 1/4" | 3/8" | 3/4" | 1.63" | .90" | .71" |
| 6503 60 14WP2 | 3/8" | 1/4" | 3/4" | 1.63" | 1.18" | 1.02" |
| 6503 60 18WP2 | 3/8" | 3/8" | 3/4" | 1.63" | 1.18" | 1.02" |
| 6503 62 18WP2 | 1/4" | 3/8" | 15/16" | 2.29" | 1.55" | 1.40" |
| 6503 62 22WP2 | 1/2" | 1/2" | 15/16" | 2.99" | 1.59" | 1.40" |
