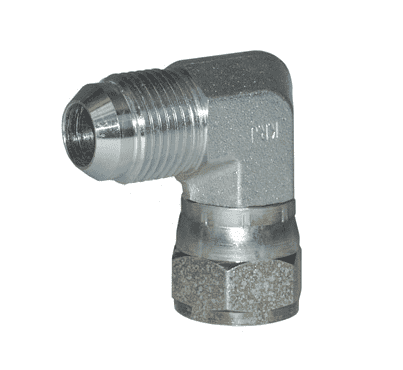

6500-4 Dixon Valve Zinc Plated Steel 7/16"-20 Male 37 deg. JIC Flare x 7/16"-20 Female 37 deg. JIC Swivel 90 deg. Elbow
Dixon

6500-4 Dixon Valve Zinc Plated Steel 7/16"-20 Male 37 deg. JIC Flare x 7/16"-20 Female 37 deg. JIC Swivel 90 deg. Elbow

Minimum Order Quantity: 5 Units

Sale price$5.65

SAE / JIC Fittings - Male 37 deg. JIC Flare x Female 37 deg. JIC Swivel 90 deg. Elbows - Zinc Plated Steel

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/4in Male JIC
  • 1/4in Female JIC
Material(s):
  • Zink-Plated Steel
Features:
  • Reference SAE 070221.
Part Number Male 37 deg. JIC Flare Female 37 deg. JIC Swivel Working Pressure Weight (Lbs.)
6500-4 7/16"-20 7/16"-20 5000 PSI 0.0800
6500-6 9/16"-18 9/16"-18 5000 PSI 0.1400
6500-6-4 9/16"-18 7/16"-20 5000 PSI 0.1120
6500-6-8 9/16"-18 3/4"-16 4500 PSI 0.2200
6500-8 3/4"-16 3/4"-16 4500 PSI 0.2530
6500-8-6 3/4"-16 9/16"-18 4500 PSI 0.2250
6500-8-10 3/4"-16 7/8"-14 3500 PSI 0.3490
6500-10 7/8"-14 7/8"-14 3500 PSI 0.3200
6500-12 1-1/16"-12 1-1/16"-12 3500 PSI 0.6090
6500-12-10 1-1/16"-12 7/8"-14 3500 PSI 0.5490
6500-16 1-5/16"-12 1-5/16"-12 3000 PSI 0.9350
6500-20 1-5/8"-12 1-5/8"-12 2500 PSI 1.5000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
