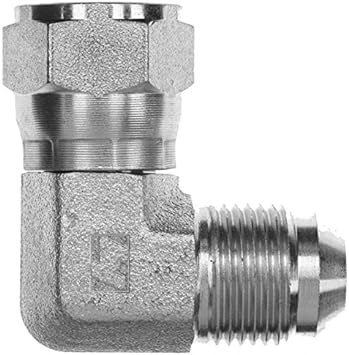

6500-02-02-FG by Brennan Inc. | -02 Male JIC x -02 Female JIC Swivel | 90° Elbow | Forged Steel
Minimum Order Quantity: 5 Units
Brennan Inc.
Tube Fittings & Adapters: 6500 - Male JIC x Female JIC Swivel 90° Elbow
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | B1 SAE37° | B2 SAE37° | B1 Drill | B2 Drill | M Length | M4 Length | M5 Length | C Hex | Y Flats |
| 6500-02-02-FG | Forged Steel | 1/8" | 5/16-24" | 5/16-24" | 0.062" | 0.062" | 0.770" | 0.660" | 0.970" | 0.438" | 0.438" |
| 6500-03-03-FG | Forged Steel | 3/16" | 3/8-24" | 3/8-24" | 0.125" | 0.125" | 0.830" | 0.670" | 1.000" | 0.500" | 0.438" |
| 6500-04-04-FG | Forged Steel | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.89" | 0.65" | 1.00" | 0.563" | 0.438" |
| 6500-04-06-FG | Forged Steel | 1/4" | 7/16-20" | 9/16-18" | 0.172" | 0.297" | 1.05" | 0.87" | 1.25" | 0.688" | 0.562" |
| 6500-05-05-FG | Forged Steel | 5/16" | 1/2-20" | 1/2-20" | 0.234" | 0.234" | 0.950" | 0.678" | 1.060" | 0.625" | 0.562" |
| 6500-05-06-FG | Forged Steel | 5/16" | 1/2-20" | 9/16-18" | 0.234" | 0.297" | 0.950" | 0.870" | 1.250" | 0.688" | 0.562" |
| 6500-06-04-FG | Forged Steel | 3/8" | 9/16-18" | 7/16-20" | 0.297" | 0.172" | 1.060" | 0.900" | 1.240" | 0.563" | 0.562" |
| 6500-06-06-FG | Forged Steel | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 1.060" | 0.870" | 1.250" | 0.688" | 0.562" |
| 6500-06-08-FG | Forged Steel | 3/8" | 9/16-18" | 3/4-16" | 0.297" | 0.391" | 1.140" | 0.950" | 1.380" | 0.875" | 0.750" |
| 6500-08-06-FG | Forged Steel | 1/2" | 3/4-16" | 9/16-18" | 0.391" | 0.297" | 1.250" | 0.910" | 1.280" | 0.688" | 0.750" |
| 6500-08-08-FG | Forged Steel | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.250" | 0.950" | 1.380" | 0.875" | 0.750" |
| 6500-08-10-FG | Forged Steel | 1/2" | 3/4-16" | 7/8-14" | 0.391" | 0.484" | 1.330" | 1.120" | 1.620" | 1.000" | 0.875" |
| 6500-08-12-FG | Forged Steel | 1/2" | 3/4-16" | 1-1/16-12" | 0.391" | 0.609" | 1.420" | 1.180" | 1.750" | 1.250" | 1.062" |
| 6500-10-08-FG | Forged Steel | 5/8" | 7/8-14" | 3/4-16" | 0.484" | 0.391" | 1.450" | 1.090" | 1.510" | 0.875" | 0.875" |
| 6500-10-10-FG | Forged Steel | 5/8" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 1.450" | 1.120" | 1.620" | 1.000" | 0.875" |
| 6500-10-12-FG | Forged Steel | 5/8" | 7/8-14" | 1-1/16-12" | 0.484" | 0.609" | 1.540" | 1.180" | 1.750" | 1.250" | 1.062" |
| 6500-12-08-FG | Forged Steel | 3/4" | 1-1/16-12" | 3/4-16" | 0.609" | 0.391" | 1.660" | 1.120" | 1.550" | 0.875" | 1.062" |
| 6500-12-10-FG | Forged Steel | 3/4" | 1-1/16-12" | 7/8-14" | 0.609" | 0.484" | 1.660" | 1.160" | 1.660" | 1.000" | 1.062" |
| 6500-12-12-FG | Forged Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.660" | 1.180" | 1.750" | 1.250" | 1.062" |
| 6500-12-16-FG | Forged Steel | 3/4" | 1-1/16-12" | 1-5/16-12" | 0.609" | 0.844" | 1.810" | 1.400" | 2.000" | 1.500" | 1.312" |
| 6500-14-14-FG | Forged Steel | 7/8" | 1-3/16-12" | 1-3/16-12" | 0.719" | 0.719" | 1.800" | 1.200" | 1.780" | 1.375" | 1.312" |
| 6500-16-12-FG | Forged Steel | 1" | 1-5/16-12" | 1-1/16-12" | 0.844" | 0.609" | 1.810" | 1.340" | 1.910" | 1.250" | 1.312" |
| 6500-16-16-FG | Forged Steel | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 1.810" | 1.400" | 2.000" | 1.500" | 1.312" |
| 6500-20-20-FG | Forged Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1.078" | 1.078" | 2.060" | 1.670" | 2.310" | 2.000" | 1.625" |
| 6500-24-24-FG | Forged Steel | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1.312" | 1.312" | 2.330" | 1.870" | 2.590" | 2.250" | 1.875" |
| 6500-32-32-FG | Forged Steel | 2" | 2-1/2-12" | 2-1/2-12" | 1.781" | 1.781" | 3.060" | 2.430" | 3.380" | 2.875" | 2.500" |
| 6500-02-02-SS | Stainless Steel | 1/8" | 5/16-24" | 5/16-24" | 0.062" | 0.062" | 0.770" | 0.660" | 0.970" | 0.438" | 0.438" |
| 6500-03-03-SS | Stainless Steel | 3/16" | 3/8-24" | 3/8-24" | 0.125" | 0.125" | 0.830" | 0.670" | 1.000" | 0.500" | 0.438" |
| 6500-04-04-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 0.89" | 0.65" | 1.00" | 0.563" | 0.438" |
| 6500-05-05-SS | Stainless Steel | 5/16" | 1/2-20" | 1/2-20" | 0.234" | 0.234" | 0.950" | 0.678" | 1.060" | 0.625" | 0.562" |
| 6500-06-06-SS | Stainless Steel | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 1.060" | 0.870" | 1.250" | 0.688" | 0.562" |
| 6500-08-08-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.250" | 0.950" | 1.380" | 0.875" | 0.750" |
| 6500-10-10-SS | Stainless Steel | 5/8" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 1.450" | 1.120" | 1.620" | 1.000" | 0.875" |
| 6500-12-12-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.660" | 1.180" | 1.750" | 1.250" | 1.062" |
| 6500-16-16-SS | Stainless Steel | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 1.810" | 1.400" | 2.000" | 1.500" | 1.312" |
| 6500-20-20-SS | Stainless Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1.078" | 1.078" | 2.060" | 1.670" | 2.310" | 2.000" | 1.625" |
| 6500-24-24-SS | Stainless Steel | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1.312" | 1.312" | 2.330" | 1.870" | 2.590" | 2.250" | 1.875" |
