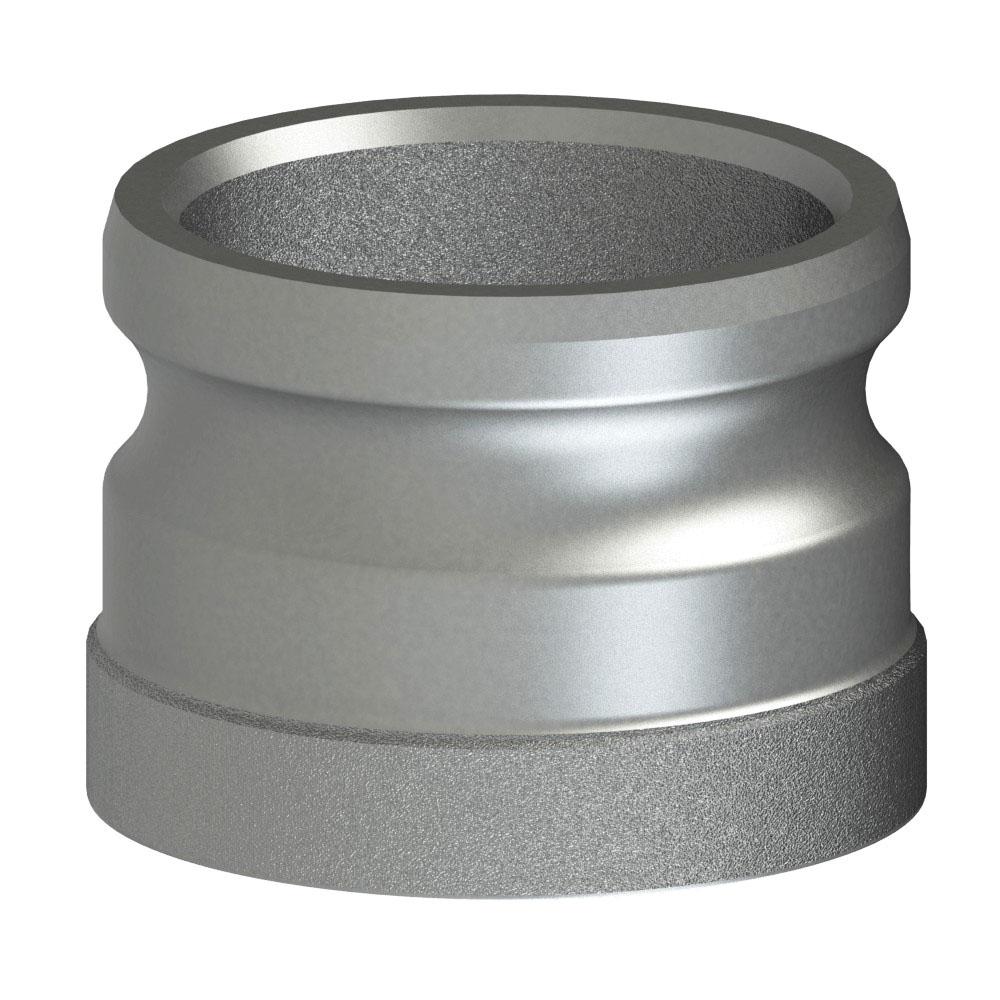

64606003 (60AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 6" Adapter x Socket Weld for Pipe | 316 Stainless Steel
PT Coupling
Cam & Groove (Camlock) Adapter | Type AWS | Adapter x Socket Weld for Pipe | 316 Stainless Steel
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $381.11 |
| 15–29 | $344.62 |
| 30+ | $304.08 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Size | Socket Depth (A) |
Outside Diameter (B) |
Inside Diameter (C) |
Overall Length (D) |
Socket Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| E05AWS | 64600101 | 1/2" | 0.30" | 1.00" | 0.53" | 1.00" | 0.88" | 250 PSI |
| 10AWS | 64601004 | 1" | 0.30" | 1.45" | 0.88" | 1.44" | 1.36" | 250 PSI |
| 12AWS | 64601201 | 1-1/4" | 0.30" | 2.00" | 1.06" | 2.00" | 1.71" | 250 PSI |
| 15AWS | 64601503 | 1-1/2" | 0.40" | 2.25" | 1.35" | 2.13" | 1.95" | 250 PSI |
| 20AWS | 64602001 | 2" | 0.40" | 2.74" | 1.81" | 2.50" | 2.44" | 250 PSI |
| 30AWS | 64603003 | 3" | 0.40" | 3.75" | 2.81" | 2.75" | 3.57" | 200 PSI |
| 40AWS | 64604003 | 4" | 0.60" | 5.01" | 3.00" | 2.97" | 4.58" | 150 PSI |
| 50AWS | 64605001 | 5" | 0.60" | 6.00" | 4.78" | 2.94" | 5.66" | 75 PSI |
| 60AWS | 64606003 | 6" | 0.60" | 7.00" | 5.84" | 2.90" | 6.72" | 75 PSI |
| 80AWS | 64608001 | 8" | 0.90" | 10.30" | 7.86" | 4.50" | 8.74" | 50 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
