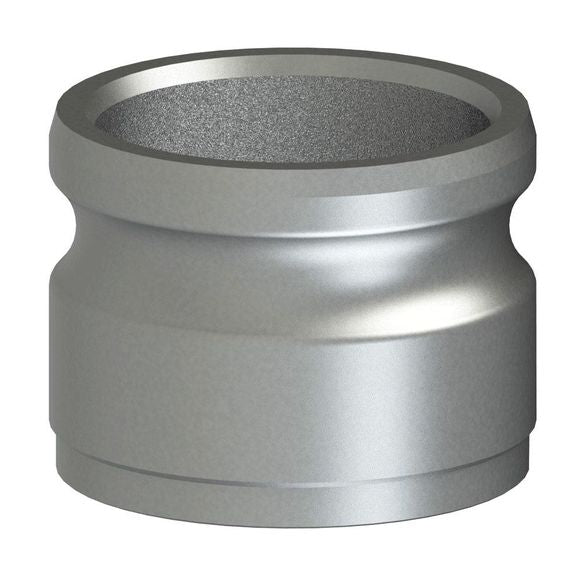

64603012 (30AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 3" Adapter x Butt Weld for Schedule 10 Pipe | 316 Stainless Steel
PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for Schedule 10 Pipe | 316 Stainless Steel
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $149.05 |
| 20–59 | $134.78 |
| 60+ | $118.92 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||
|---|---|---|---|---|---|
| Part Name |
Item # | Size | Overall Length (A) |
Inside Diameter (B) |
Max. Allowable Working Press. (PSI)* |
| E05AWB | 64600113 | 1/2" | 1.43" | 0.53" | 250 PSI |
| 07AWB | 64600711 | 3/4" | 1.40" | 0.75" | 250 PSI |
| 10AWB | 64601011 | 1" | 1.74" | 0.88" | 250 PSI |
| 15AWB | 64601515 | 1-1/2" | 2.06" | 1.25" | 250 PSI |
| 20AWB | 64602012 | 2" | 2.50" | 1.75" | 250 PSI |
| 25AWB | 64602513 | 2-1/2" | 2.44" | 2.14" | 200 PSI |
| 30AWB | 64603012 | 3" | 2.75" | 2.81" | 200 PSI |
| 40AWB | 64604012 | 4" | 2.88" | 3.75" | 150 PSI |
| 60AWB | 64606013 | 6" | 3.00" | 5.84" | 75 PSI |
| 80AWB | 64608028 | 8" | 5.90" | 7.80" | 50 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
