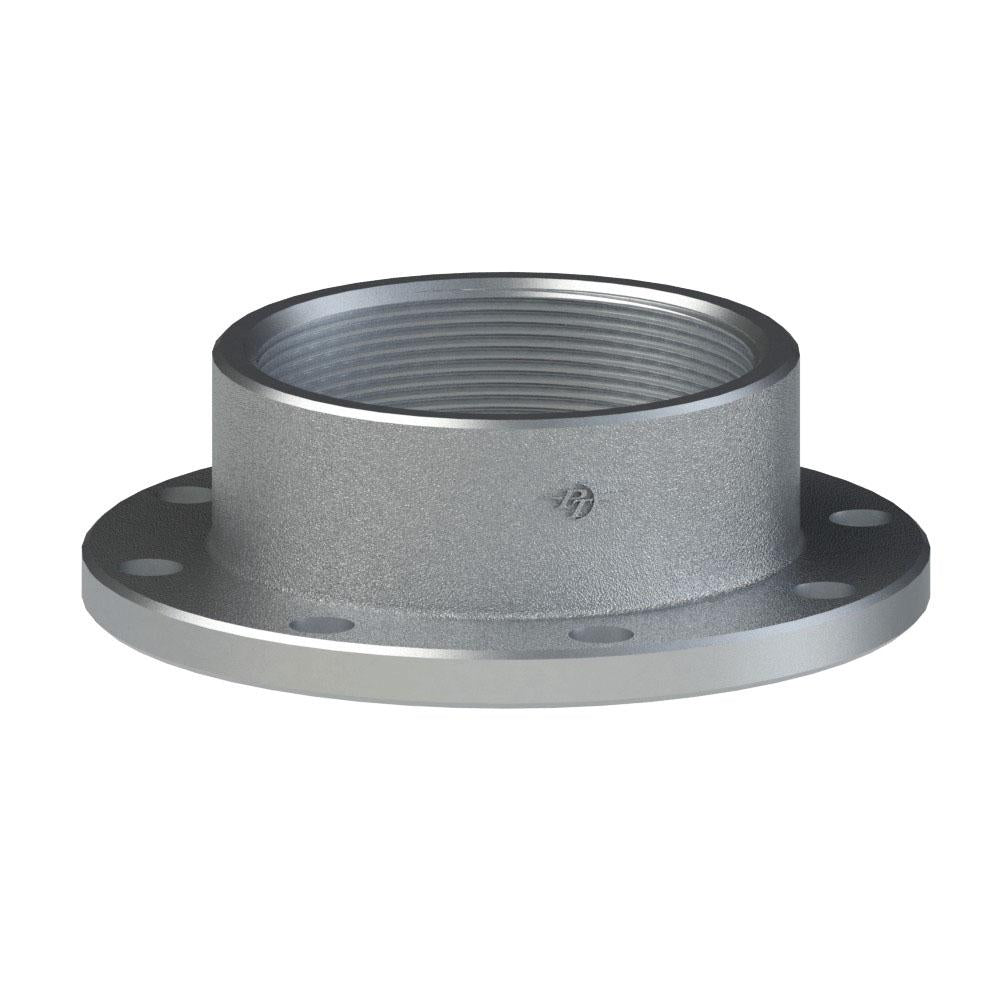

64553000 (TTF30NPTF) by PT-Coupling | Petroleum Handling TTMA Flange | Type TTFNPTF | 3" Female NPT x 3" TTMA Flange | Stainless Steel

64553000 (TTF30NPTF) by PT-Coupling | Petroleum Handling TTMA Flange | Type TTFNPTF | 3" Female NPT x 3" TTMA Flange | Stainless Steel

Sale price$301.72
Buy more, save moreDiscounts applied in cart/checkout.
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Aluminum:
    • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
    • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Stainless Steel:
    • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
    • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Material Female NPT
Thread		 TTMA Flange
Size		 Max. Allowable
Working Press.
(PSI)*
TTF30NPTF 60553000 Aluminum 3" 3" 200 PSI
TTF40NPTF 60554000 Aluminum 4" 4" 150 PSI

TTF30NPTF 64553000 Stainless Steel 3" 3" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

Additional Product Data:

Series:
  • Petroleum Handling
Shape:

Straight

Ends Configuration:
  • 3in Female NPT
  • 3in TTMA Flange

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
