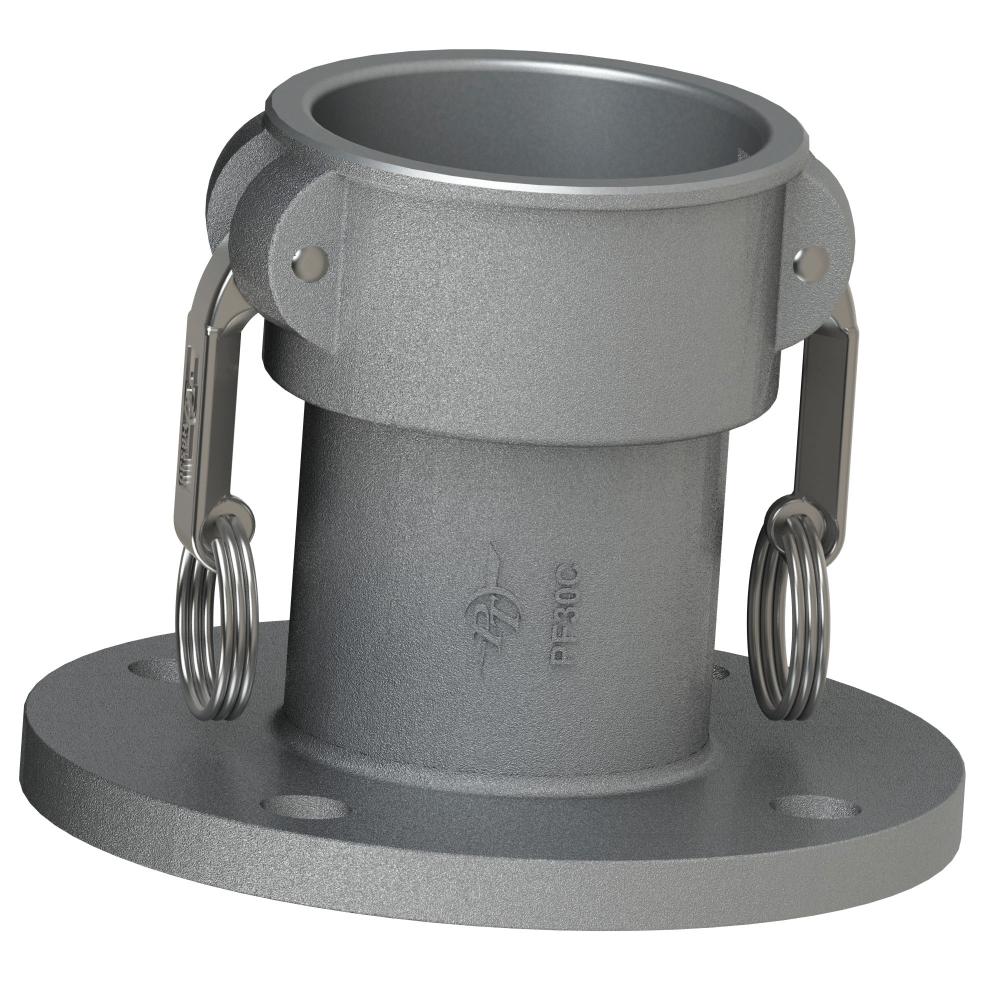

64544000 (PF40C) by PT-Coupling | Cam & Groove Adapter | Type PFC | 4" Coupler x 4" 150# Pipe Flange | 316 Stainless Steel
PT Coupling
Cam & Groove (Camlock) Adapter | Type PFC | Coupler x 150# Pipe Flange | 316 Stainless Steel
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $716.26 |
| 15–29 | $647.68 |
| 30+ | $571.49 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Coupler Size |
Flange Size |
O. D. with Cam Arms Extended (A) |
Overall Length (C) |
Inside Diameter (E) |
Outside Diameter (F) |
Bolt Hole Diameter (J) |
Number of Holes (K) |
Bolt Circle Diameter (L) |
Max. Allowable Working Press. (PSI)* |
| PF10C | 64541000 | 1" | 1" | 5.04" | 3.48" | 0.69" | 4.25" | 0.63" | 4 | 3.13" | 250 PSI |
| PF15C | 64541500 | 1-1/2" | 1-1/2" | 7.16" | 5.25" | 1.35" | 5.00" | 0.63" | 4 | 3.88" | 250 PSI |
| PF20C | 64542000 | 2" | 2" | 7.54" | 5.82" | 1.63" | 6.00" | 0.75" | 4 | 4.75" | 250 PSI |
| PF25C | 64542500** | 2-1/2" | 2-1/2" | 8.03" | 5.09" | 2.38" | 7.00" | 0.75" | 4 | 5.50" | 200 PSI |
| PF30C | 64543000 | 3" | 3" | 9.56" | 5.82" | 2.90" | 7.50" | 0.75" | 4 | 6.00" | 200 PSI |
| PF40C | 64544000 | 4" | 4" | 10.66" | 5.39" | 3.60" | 9.00" | 0.75" | 8 | 7.50" | 150 PSI |
| PF60C | 64546000 | 6" | 6" | 16.76" | 7.75" | 5.60" | 11.00" | 0.88" | 8 | 9.50" | 75 PSI |
| PF80C | 64548000 | 8" | 8" | 18.73" | 7.64" | 7.53" | 13.50" | 0.88" | 8 | 11.75" | 50 PSI |
| PF100C | 64549000 | 10" | 10" | 23.00" | 8.50" | 9.40" | 16.00" | 1.00" | 12 | 14.25" | 50 PSI |
** Denotes that these parts are made as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
