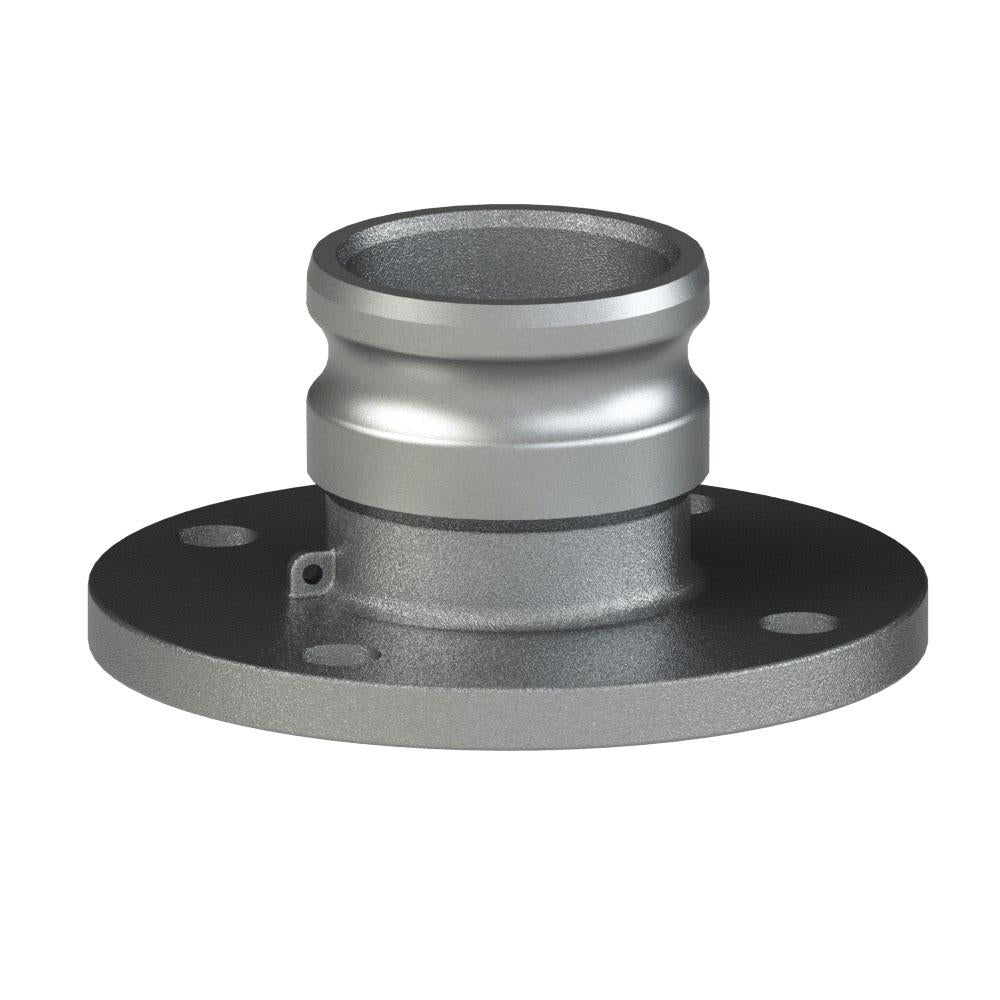

6452600H (PF60AHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type PFA | 6" Adapter x 6" 150# Pipe Flange | 316 Stainless Steel

6452600H (PF60AHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type PFA | 6" Adapter x 6" 150# Pipe Flange | 316 Stainless Steel

Sale price$1,686.91

PT Coupling
Heavy Duty Cam & Groove (Camlock) Adapter | Type PFA | Adapter x 150# Pipe Flange | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
4–7 $1,585.70
8–14 $1,518.22
15+ $1,349.53
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Other

Ends Configuration:
  • 6in Male Cam & Groove
  • 6in 150# Flange
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150.
  • Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges.
  • Made in the USA
Part
Name		 Item # Heavy Duty
Adapter Size		 Flange
Size		 Max. Allowable
Working Press.
(PSI)*
PF40AHD 64524000H 4" 4" 150 PSI
PF60AHD 6452600H 6" 6" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
