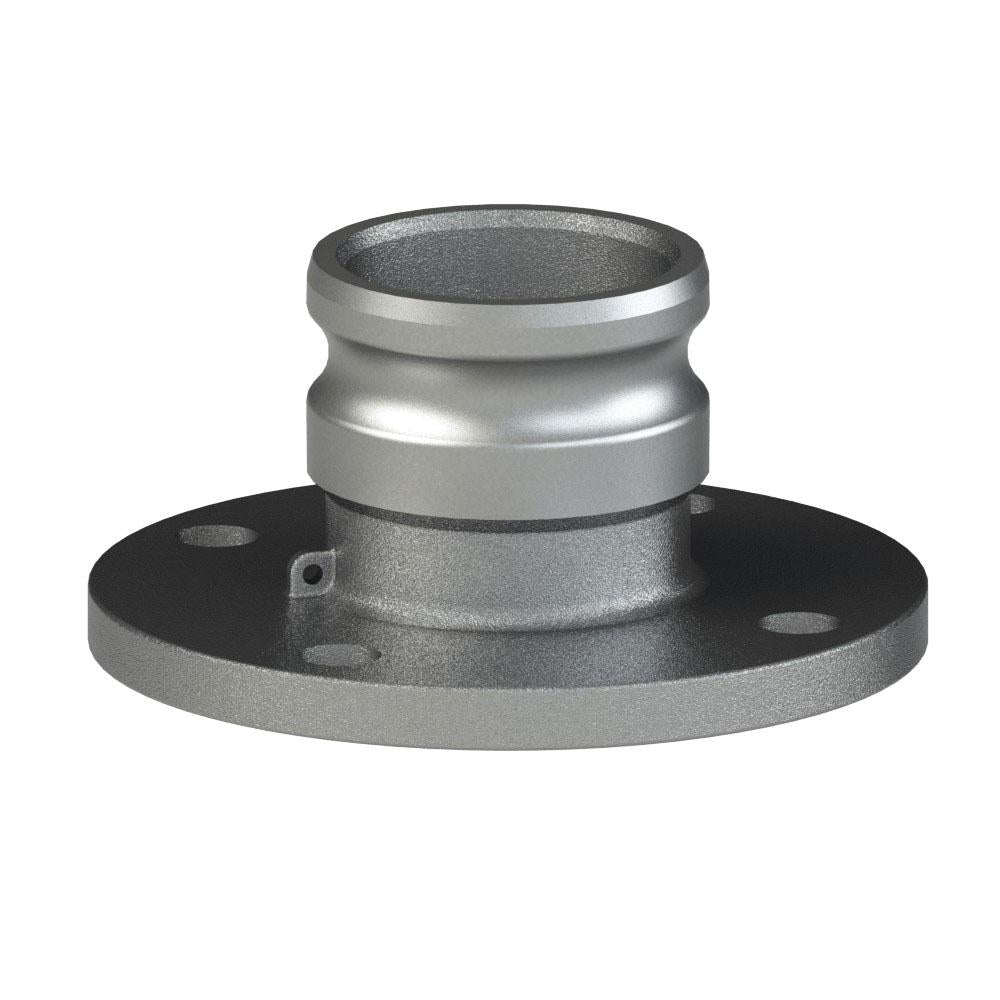

64524060 (PF40X60A) by PT-Coupling | Reducing Cam & Groove Adapter | Type PFA | 4" Adapter x 6" 150# Pipe Flange | 316 Stainless Steel
PT Coupling
Cam & Groove (Camlock) Adapter | Type PFA | Adapter x 150# Pipe Flange | 316 Stainless Steel
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,224.27 |
| 8–14 | $1,172.18 |
| 15+ | $1,041.94 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Adapter Size |
Flange Size |
Overall Length (C) |
Inside Diameter (E) |
Outside Diameter (F) |
Bolt Hole Diameter (J) |
Number of Holes (K) |
Bolt Circle Diameter (L) |
Max. Allowable Working Press. (PSI)* |
Weight |
| PF10A | 64521000 | 1" | 1" | 2.32" | 0.88" | 4.25" | 0.63" | 4 | 3.13" | 250 PSI | 1.75 lbs. |
| PF15A | 64521500 | 1-1/2" | 1-1/2" | 3.56" | 1.34" | 5.00" | 0.63" | 4 | 3.88" | 250 PSI | 3.14 lbs. |
| PF20A | 64522000 | 2" | 2" | 3.50" | 1.72" | 6.00" | 0.75" | 4 | 4.75" | 250 PSI | 4.43 lbs. |
| PF25A | 64522500 | 2-1/2" | 2-1/2" | 3.63" | 2.14" | 7.00" | 0.75" | 4 | 5.50" | 200 PSI | 7.305 lbs. |
| PF25X40A | 64522540 | 2-1/2" | 4" | 3.63" | 2.14" | 7.00" | 0.75" | 4 | 5.50" | 150 PSI | - |
| PF30A | 64523000 | 3" | 3" | 3.69" | 2.78" | 7.50" | 0.75" | 4 | 6.00" | 200 PSI | 8.125 lbs. |
| PF40A | 64524000 | 4" | 4" | 4.00" | 3.78" | 9.00" | 0.75" | 8 | 7.50" | 150 PSI | 12.34 lbs. |
| PF40X60A | 64524060 | 4" | 6" | 4.00" | 3.78" | 11.00" | 0.75" | 8 | 7.50" | 75 PSI | - |
| PF50A | 64525000 | 5" | 5" | 4.44" | 4.79" | 10.00" | 0.88" | 8 | 8.50" | 75 PSI | - |
| PF60A | 64526000 | 6" | 6" | 4.50" | 5.56" | 11.00" | 0.88" | 8 | 9.50 | 75 PSI | 23.34 lbs. |
| PF80A | 64528000 | 8" | 8" | 5.38" | 7.80" | 13.5" | 0.88" | 8 | 11.75" | 50 PSI | 36.645 lbs. |
| PF100A | 64529000 | 10" | 10" | 6.60" | 10.00" | 16.00" | 1.00" | 12 | 14.25" | 50 PSI | - |
| PF120A | 64529200 | 12" | 12" | 7.00" | 11.40" | 19.00" | 1.00" | 12 | 17.00" | 50 PSI | - |
** Denotes that these parts are made as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
