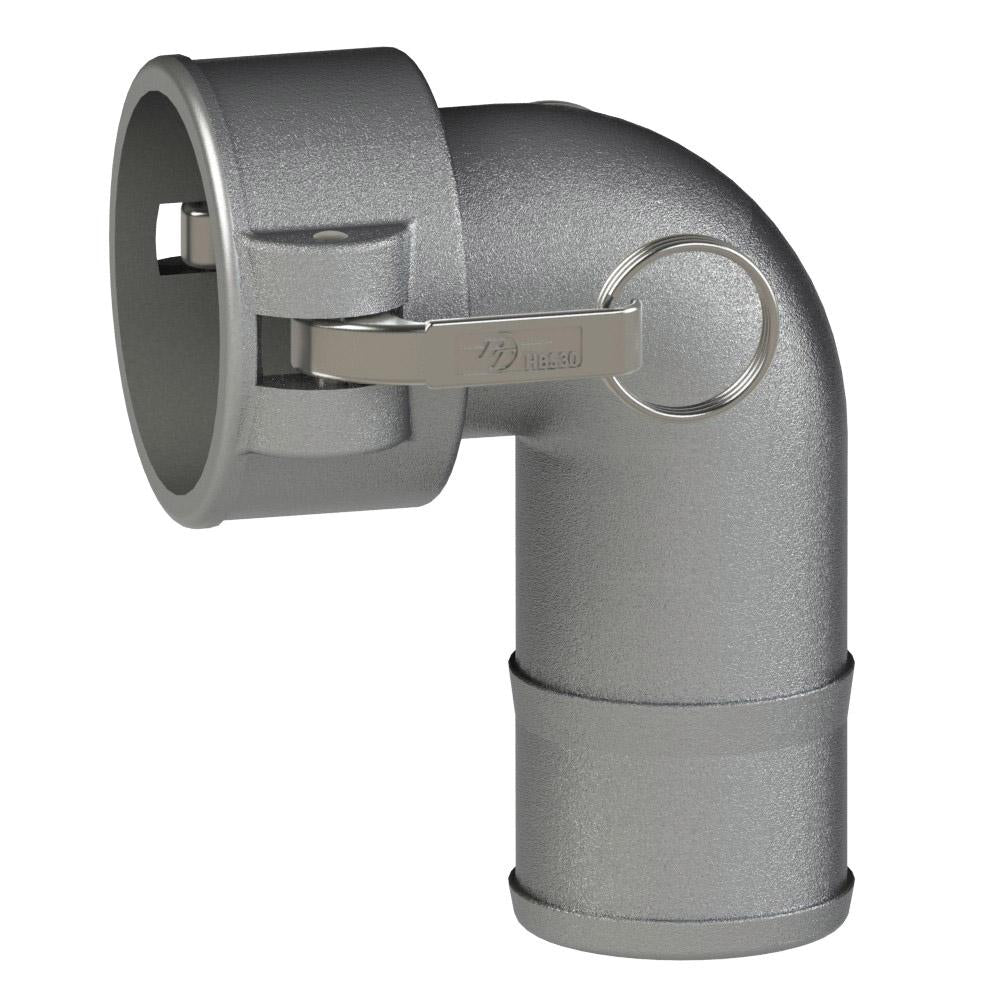

64504000 (40CL) by PT-Coupling | Cam & Groove Fitting | Type CL | 90° Elbow | 4" Coupler x 4" Hose Shank | 316 Stainless Steel | Buna-N Seal
PT Coupling
Cam & Groove (Camlock) Fitting | Type CL | 90° Elbow | Coupler x Hose Shank | 316 Stainless Steel | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $722.17 |
| 15–29 | $653.03 |
| 30+ | $576.20 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Orientation | Coupler Size |
Hose Shank Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|---|
| 10CL | 64501000 | 90° | 1" | 1" | 250 PSI |
| 12CL | 64501200 | 90° | 1-1/4" | 1-1/4" | 250 PSI |
| 15CL | 64501500 | 90° | 1-1/2" | 1-1/2" | 250 PSI |
| 20CL | 64502000 | 90° | 2" | 2" | 250 PSI |
| 30CL | 64503000 | 90° | 3" | 3" | 200 PSI |
| 40CL | 64504000 | 90° | 4" | 4" | 150 PSI |
| 60CL | 64506000 | 90° | 6" | 6" | 75 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
