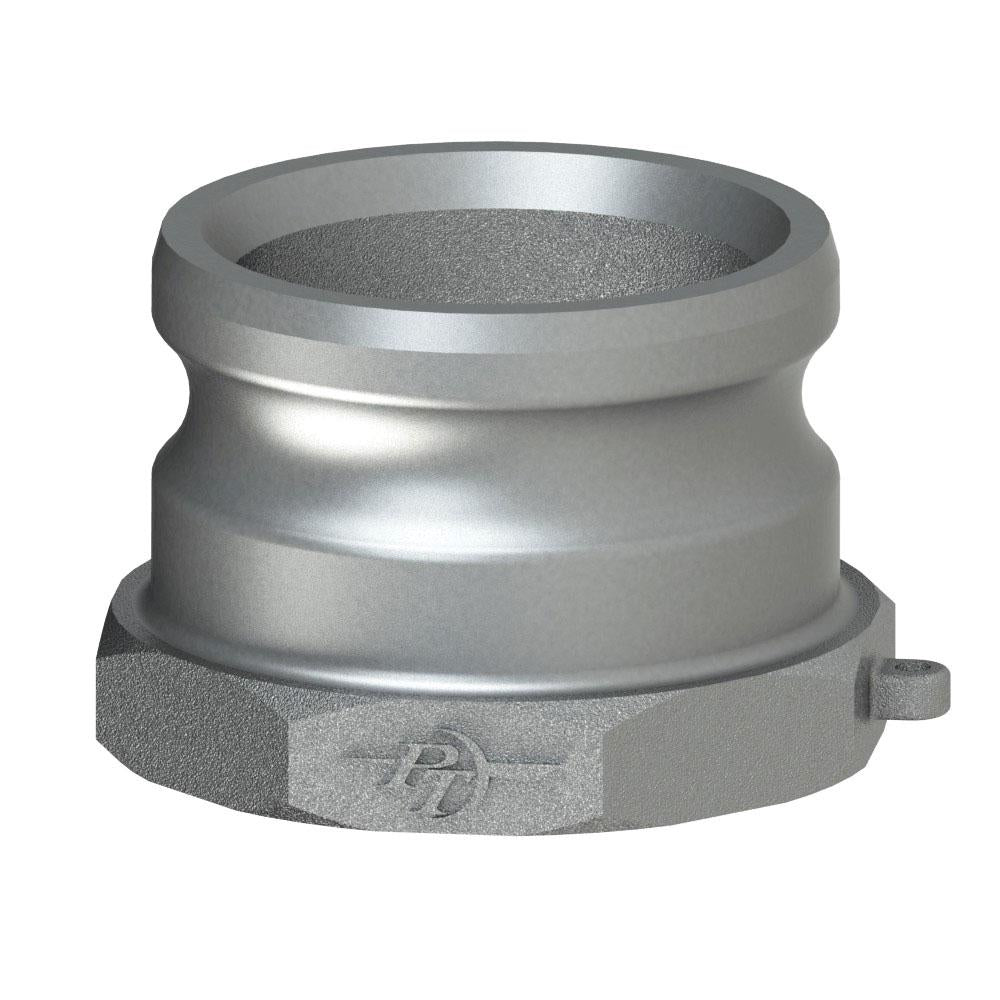

64342000 (20AS) by PT-Coupling | Cam & Groove Adapter | Type AS | 2" Adapter x 2" Female NPSH | 316 Stainless Steel | Buna Fuel Resistant Seal
PT Coupling
Cam & Groove (Camlock) Adapter | Type AS | Adapter x Female NPSH | 316 Stainless Steel | Buna Fuel Resistant Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $93.06 |
| 20–59 | $84.15 |
| 60+ | $74.25 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Name |
Item # | Adapter Size |
Female NPSH Thread |
Overall Length (C) |
Inside Diameter (E) |
Across Corners (F) |
Chain Lug Extension (G) |
Max. Allowable Working Press. (PSI)* |
| 20AS | 64342000 | 2" | 2" | 2.54" | 1.72" | 2.92" | 0.31" | 250 PSI |
| 30AS | 64343000 | 3" | 3" | 2.84" | 2.80" | 4.22" | 0.44" | 200 PSI |
| 40AS | 64344000 | 4" | 4" | 3.16" | 3.78" | 5.41" | 0.39" | 150 PSI |
| 50AS | 64345000 | 5" | 5" | 3.22" | 4.79" | 6.49" | 0.35" | 75 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
