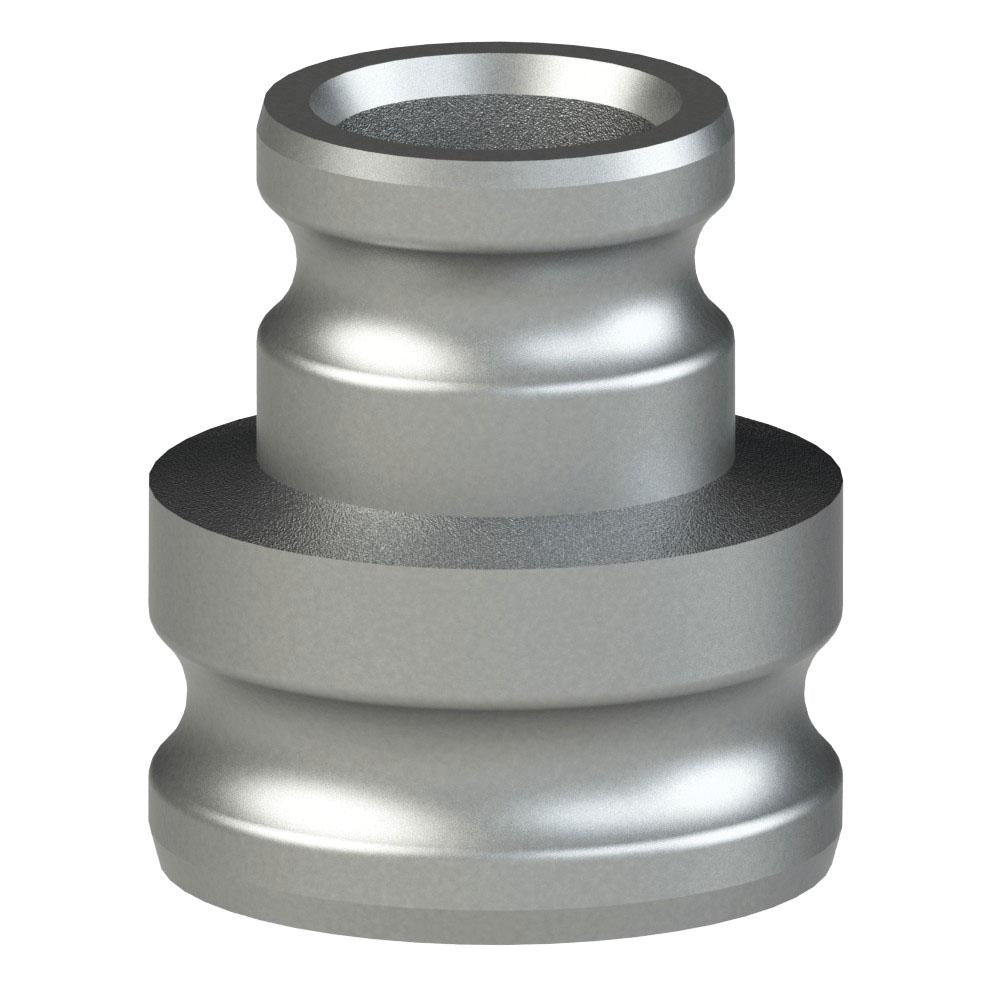

64281515 (SA15X15) by PT-Coupling | Cam & Groove Adapter | Spool Adapter | Type SA | 1-1/2" Adapter x 1-1/2" Adapter | 316 Stainless Steel
PT Coupling
Cam & Groove (Camlock) Adapter | Spool Adapter | Type SA | Adapter x Adapter | 316 Stainless Steel
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $125.26 |
| 20–59 | $113.26 |
| 60+ | $99.94 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Adapter Size |
Adapter Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| SAE05XE05 | 64280101 | 1/2" | 1/2" | 250 PSI |
| SA07X07 | 64280707 | 3/4" | 3/4" | 250 PSI |
| SA10X10 | 64281010 | 1" | 1" | 250 PSI |
| SA15X15 | 64281515 | 1-1/2" | 1-1/2" | 250 PSI |
| SA15X20 | 64281520 | 1-1/2" | 2" | 250 PSI |
| SA20X20 | 64282020 | 2" | 2" | 250 PSI |
| SA20X30 | 64282030 | 2" | 3" | 200 PSI |
| SA25X25 | 64282525 | 2-1/2" | 2-1/2" | 200 PSI |
| SA30X30 | 64283030 | 3" | 3" | 200 PSI |
| SA30X40 | 64283040 | 3" | 4" | 150 PSI |
| SA40X40 | 64284040 | 4" | 4" | 150 PSI |
** Denotes parts are produced as welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
