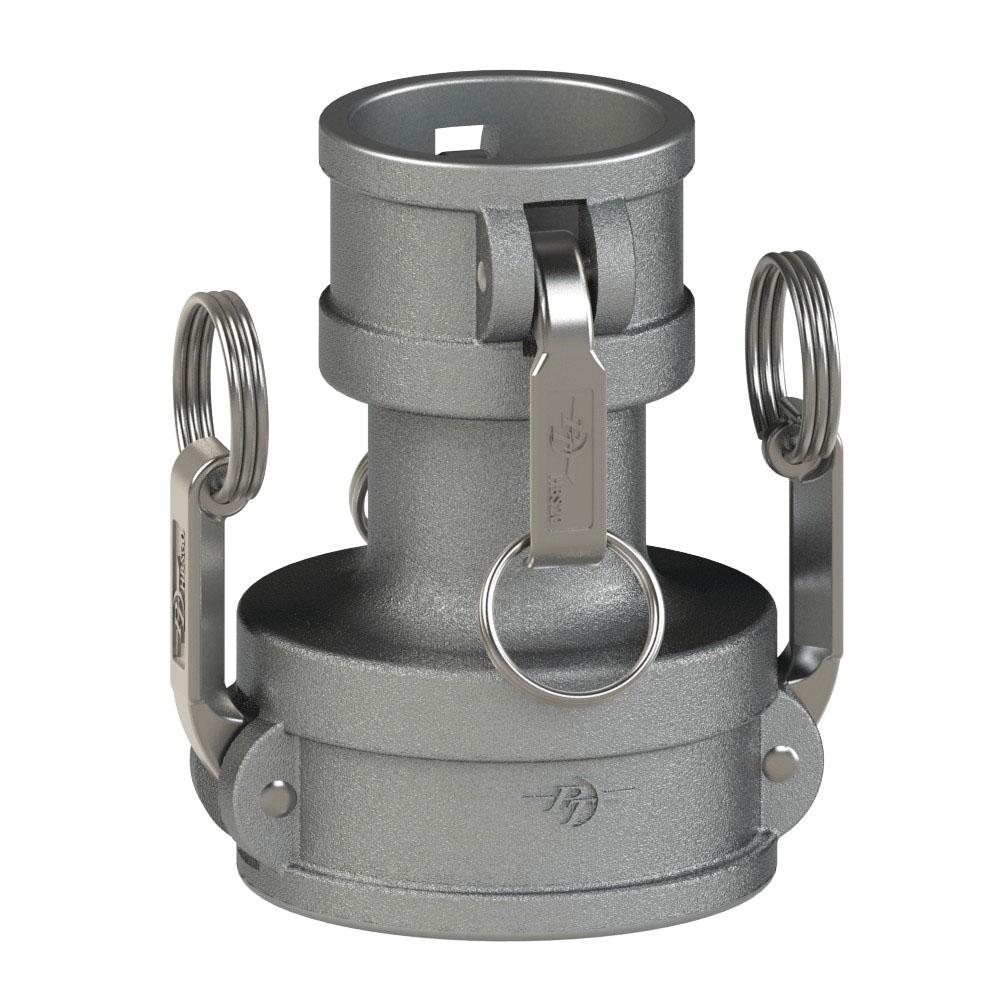

64271010 (10CX10C) by PT-Coupling | Cam & Groove Coupler | Spool Coupler | Type CXC | 1" Coupler x 1" Coupler | 316 Stainless Steel | Buna-N Seal
PT Coupling
Cam & Groove (Camlock) Adapter | Spool Coupler | Type CXC | Coupler x Coupler | 316 Stainless Steel | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $120.64 |
| 20–59 | $109.09 |
| 60+ | $96.26 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Coupler Size |
Coupler Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 10CX10C | 64271010 | 1" | 1" | 250 PSI |
| 15CX15C | 64271515 | 1-1/2" | 1-1/2" | 250 PSI |
| 20CX20C | 64272020 | 2" | 2" | 250 PSI |
| 30CX20C | 64273020 | 3" | 2" | 200 PSI |
| 30CX30C | 64273030 | 3" | 3" | 200 PSI |
| 30CX40C | 64273040 | 3" | 4" | 150 PSI |
| 40CX30C | 64274030 | 4" | 3" | 150 PSI |
| 40CX40C | 64274040** | 4" | 4" | 150 PSI |
** Denotes parts are produced as welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
