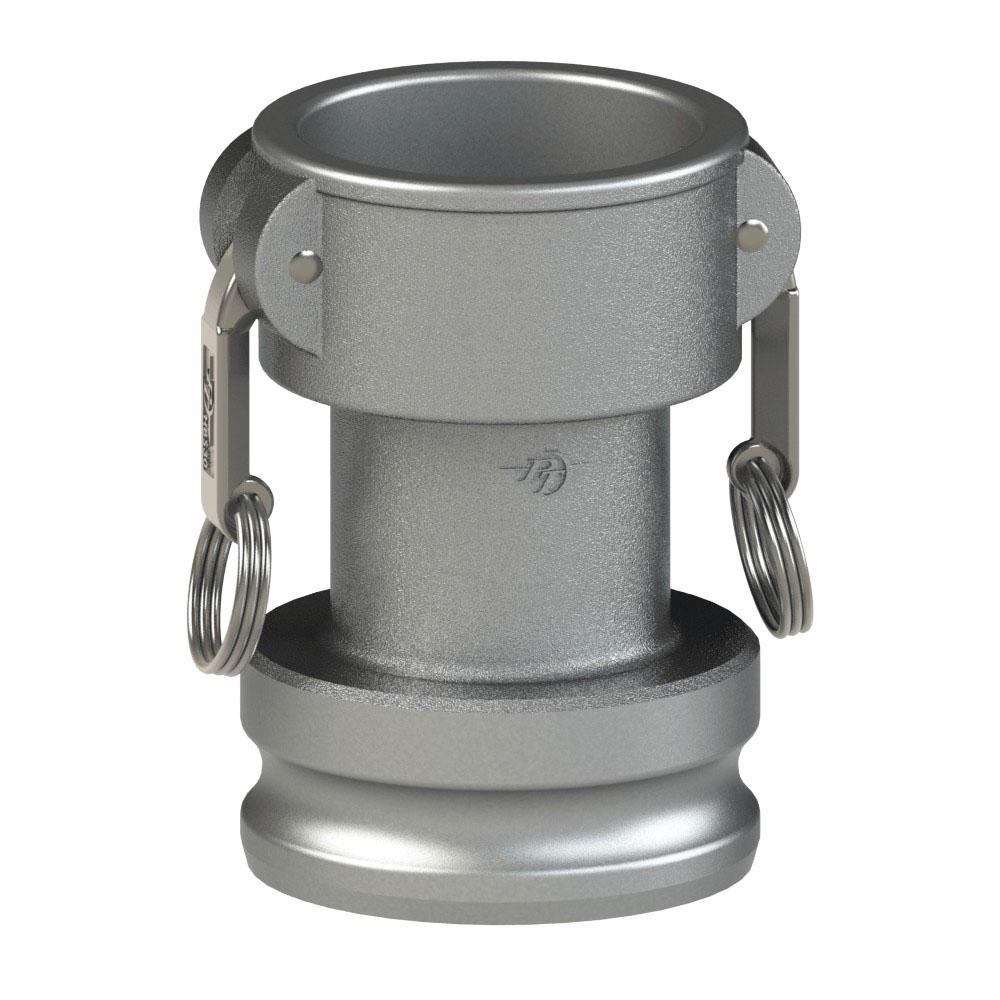

64264030 (40CX30A LONG) by PT-Coupling | Long Reducing Cam & Groove Coupler | Type CXA | 4" Coupler x 3" Adapter | 316 Stainless Steel | Buna-N Seal
PT Coupling
Long Reducing Cam & Groove (Camlock) Adapter | Type CXA | Coupler x Adapter | 316 Stainless Steel | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $522.39 |
| 15–29 | $472.37 |
| 30+ | $416.80 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Coupler Size |
Adapter Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 15CX10A LONG | 64261510 | 1-1/2" | 1" | 250 PSI |
| 15CX20A LONG | 64261520 | 1-1/2" | 2" | 250 PSI |
| 20CX12A LONG | 64262012 | 2" | 1-1/4" | 250 PSI |
| 20CX15A LONG | 64262015 | 2" | 1-1/2" | 250 PSI |
| 20CX30A LONG | 64262030 | 2" | 3" | 200 PSI |
| 30CX10A LONG | 64263010** | 3" | 1" | 200 PSI |
| 30CX20A LONG | 64263020 | 3" | 2" | 200 PSI |
| 30CX40A LONG | 64263040 | 3" | 4" | 150 PSI |
| 40CX30A LONG | 64264030 | 4" | 3" | 150 PSI |
| 60CX40A LONG | 64266040 | 6" | 4" | 75 PSI |
** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
