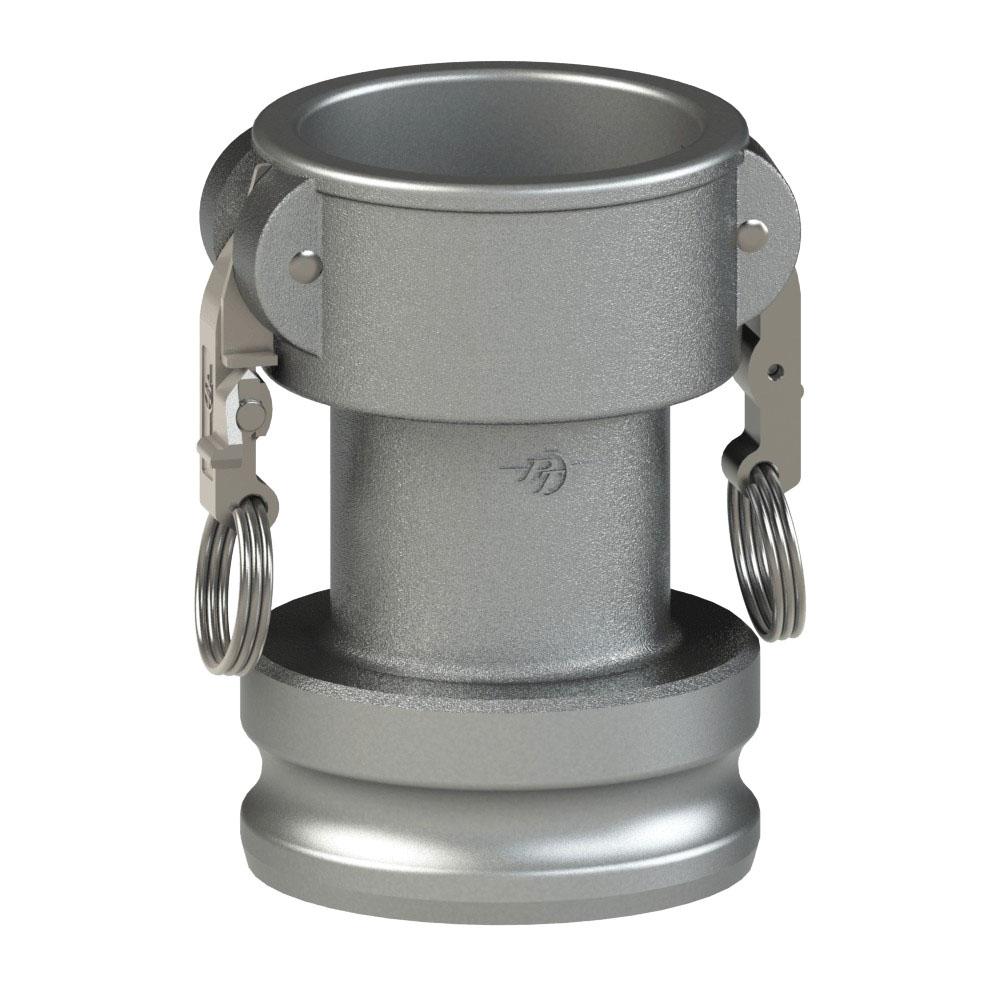

64261520L2 (15CX20A SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type CXA | Long | 1-1/2" Coupler x 2" Adapter | 316 Stainless Steel | Buna-N Seal

64261520L2 (15CX20A SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type CXA | Long | 1-1/2" Coupler x 2" Adapter | 316 Stainless Steel | Buna-N Seal

Sale price$375.94

PT Coupling
STA-LOK® II Reducing Cam & Groove (Camlock) Adapter | Type CXA | Long | Coupler x Adapter | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
5–14 $353.38
15–29 $319.55
30+ $281.96
Discounts applied in cart/checkout.

Product Data:

Series:
  • STA-LOK II
Shape:

Straight

Cam & Groove Type:

Other
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Adapter
Size		 Max. Allowable
Working Press.
(PSI)*
15CX20A SLII 64261520L2 1-1/2" 2" 250 PSI
20CX15A SLII 64262015L2 2" 1-1/2" 250 PSI
20CX30A SLII 64262030L2 2" 3" 200 PSI
30CX20A SLII 64263020L2 3" 2" 200 PSI
40CX30A SLII 64264030L2 4" 3" 150 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
