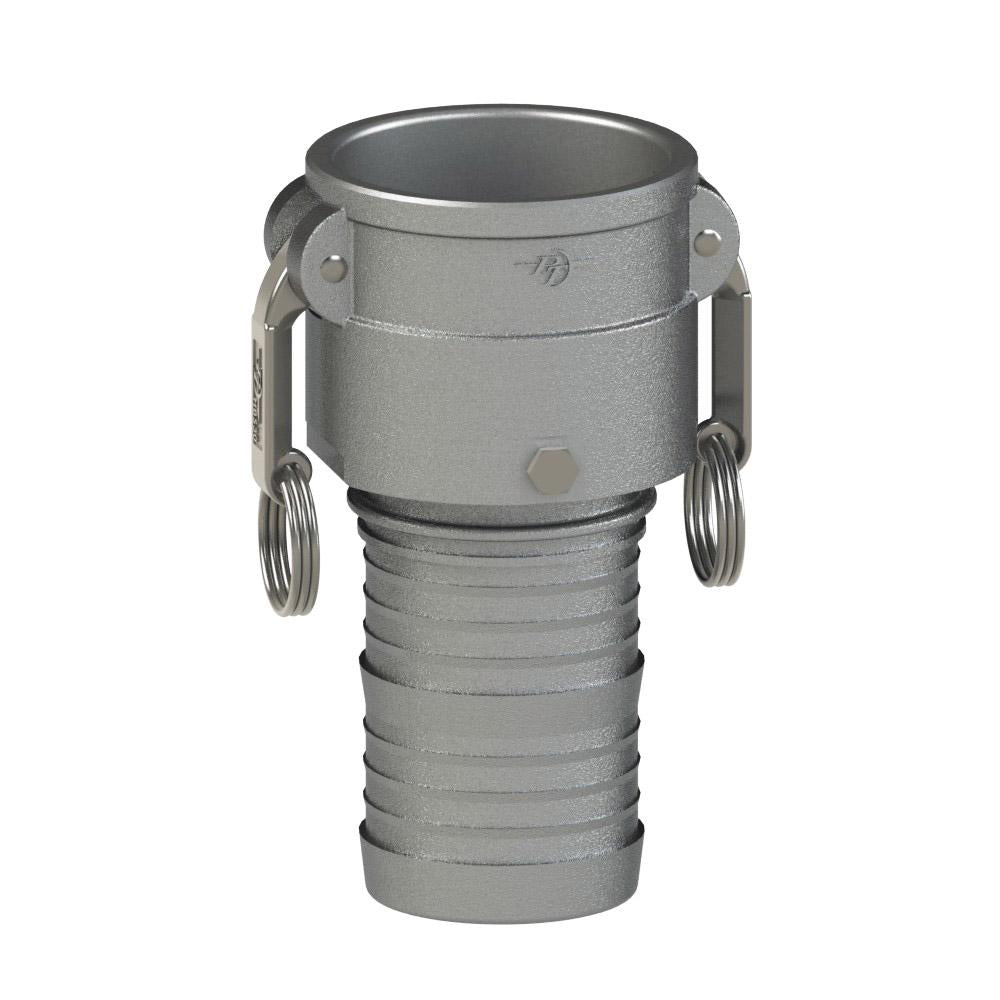

64231500 (15CSV) by PT-Coupling | Swivel Cam & Groove Fitting | Type CSV | 1-1/2" Swivel Coupler x 1-1/2" Hose Shank | 316 Stainless Steel | Viton Seal
PT Coupling
Swivel Cam & Groove (Camlock) Fitting | Type CSV | Swivel Coupler x Hose Shank | 316 Stainless Steel | Viton Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $280.40 |
| 15–29 | $253.56 |
| 30+ | $223.73 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
316 Stainless Steel Viton® Item # |
Coupler Size |
Hose Shank Size |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Exposed Length (D) |
Inside Diameter (E) |
Min. Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
|
| 15CSV | 64231500 | - | 1-1/2" | 1-1/2" | 7.16" | 3.56" | 4.82" | 1.88" | 1.22" | 1.15" | 250 PSI |
| 20CSV | 64232000 | - | 2" | 2" | 7.54" | 3.94" | 5.53" | 2.15" | 1.71" | 1.60" | 250 PSI |
| 30CSV | 64233000 | - | 3" | 3" | 9.56" | 5.46" | 6.32" | 2.27" | 2.65" | 2.55" | 200 PSI |
| 40CSV | 64234000 | - | 4" | 4" | 10.66" | 6.56" | 6.64" | 2.34" | 3.53" | 3.43" | 150 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
