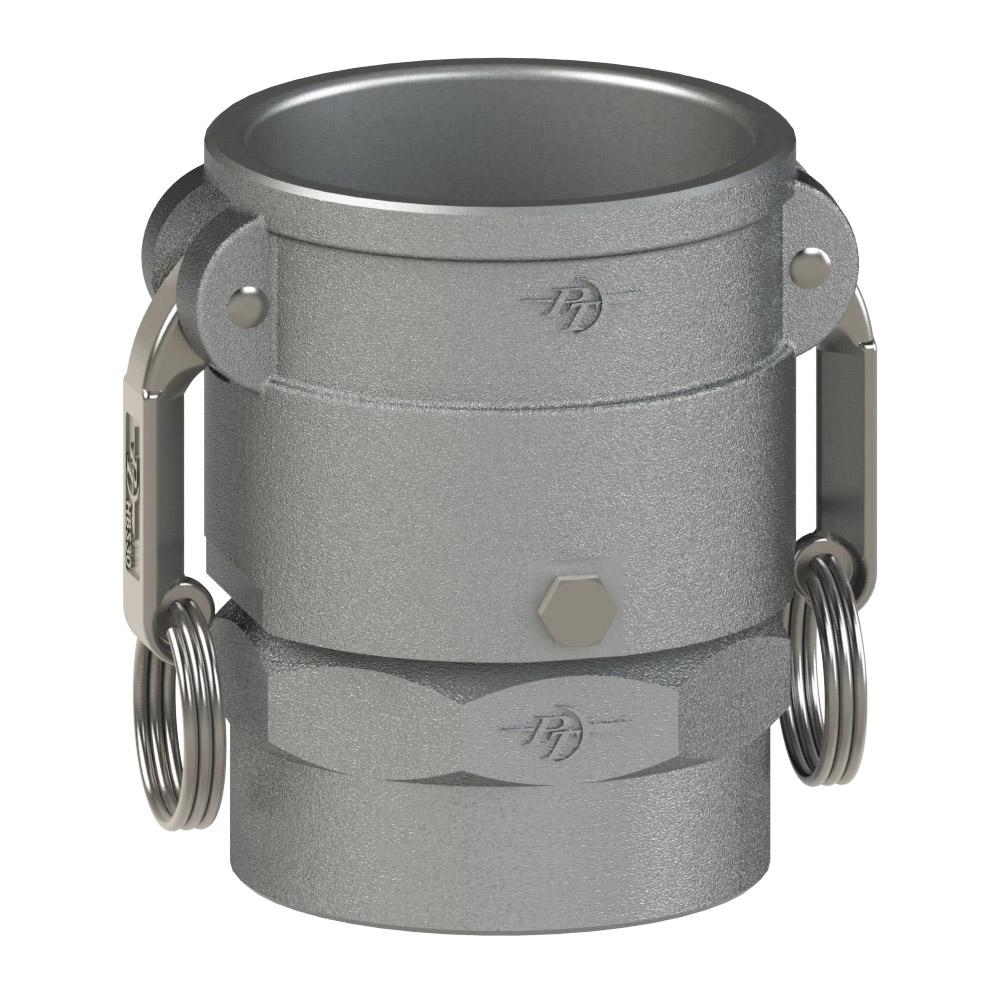

64215000 (50DSV) by PT-Coupling | Swivel Cam & Groove Adapter | Type DSV | 5" Swivel Coupler x 5" Female NPT | 316 Stainless Steel | Viton Seal
PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type DSV | Swivel Coupler x Female NPT | 316 Stainless Steel | Viton Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $1,005.21 |
| 15–29 | $908.96 |
| 30+ | $802.03 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
316 Stainless Steel Viton® Item # |
Coupler Size |
Female NPT Thread Size |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
|
| 15DSV | 64211500 | 1-1/2" | 1-1/2" | 7.16" | 3.56" | 2.80" | 1.50" | 250 PSI | |
| 20DSV | 64212000 | 2" | 2" | 7.54" | 3.94" | 3.10" | 1.88" | 250 PSI | |
| 25DSV | 64212500 | 2-1/2" | 2-1/2" | 8.03" | 4.43" | 3.40" | 2.38" | 200 PSI | |
| 30DSV | 64213000 | 3" | 3" | 9.56" | 5.46" | 3.50" | 2.88" | 200 PSI | |
| 40DSV | 64214000 | 4" | 4" | 10.66" | 6.56" | 3.90" | 3.60" | 150 PSI | |
| 50DSV | 64215000 | 5" | 5" | 11.67" | 7.57" | 4.1" | 4.5" | 75 PSI | |
| 60DSV | 64216000 | 6" | 6" | 16.26" | 10.16" | 4.40" | 5.50" | 75 PSI | |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
