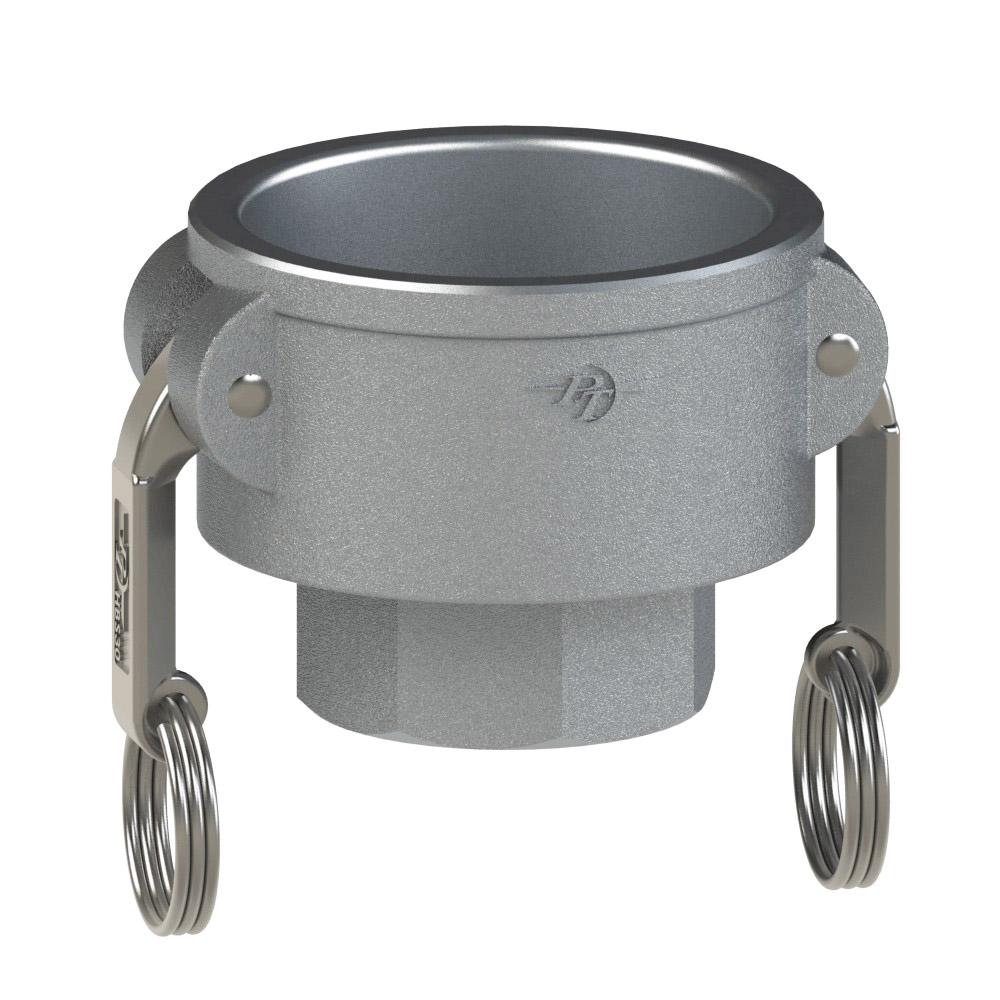

64204030 (40X30D) by PT-Coupling | Reducing Cam & Groove Coupler | Type D | 4" Coupler x 3" Female NPT | 316 Stainless Steel | Buna-N Seal
PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | 316 Stainless Steel | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $385.00 |
| 15–29 | $348.13 |
| 30+ | $307.18 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Coupler Size |
Female NPT Thread |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 15X10D | 64201510 | 1-1/2" | 1" | 250 PSI |
| 20X15D | 64202015 | 2" | 1-1/2" | 250 PSI |
| 25X20D | 64202520** | 2-1/2" | 2" | 200 PSI |
| 30X20D | 64203020 | 3" | 2" | 200 PSI |
| 40X30D | 64204030 | 4" | 3" | 150 PSI |
** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
