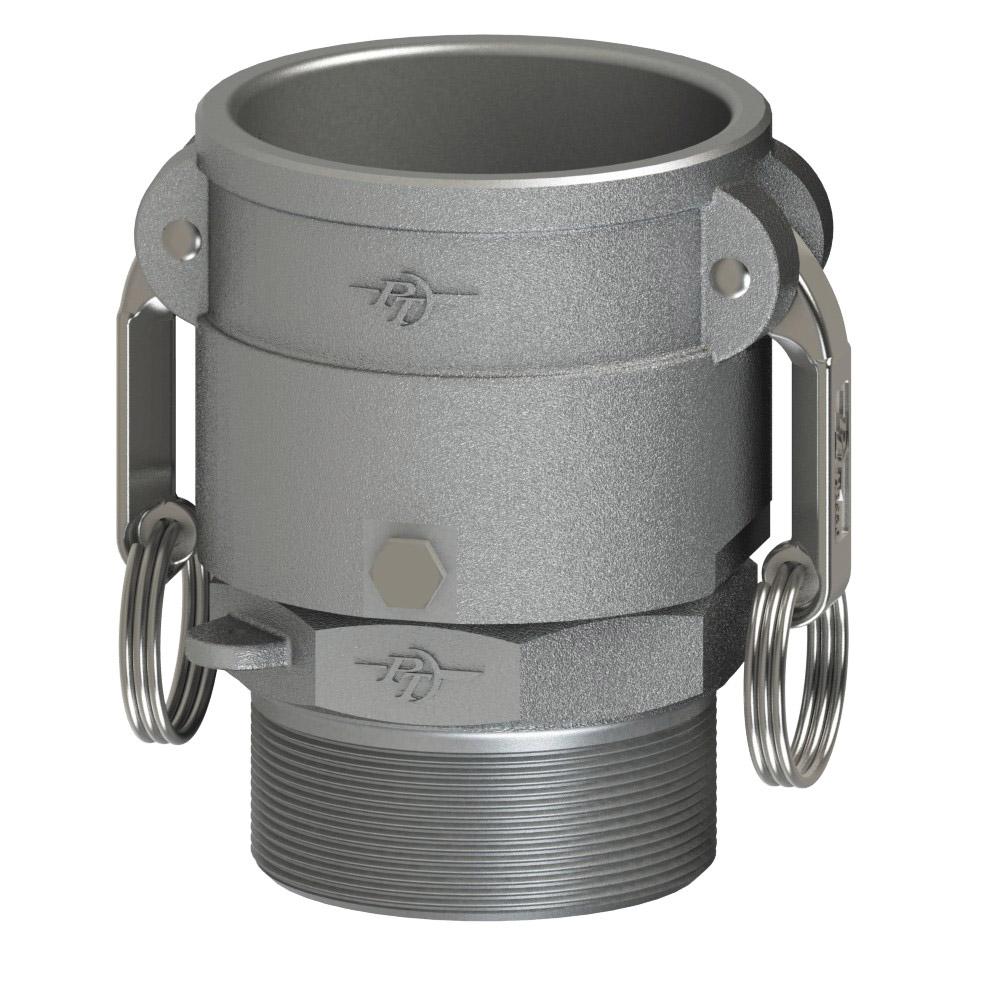

64192000 (20ASV) by PT-Coupling | Swivel Cam & Groove Adapter | Type BSV | 2" Swivel Coupler x 2" Male NPT | 316 Stainless Steel | Viton Seal
PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type BSV | Swivel Coupler x Male NPT | 316 Stainless Steel | Viton Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $316.23 |
| 15–29 | $285.96 |
| 30+ | $252.32 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type B
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Features & Applications: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
316 Stainless Steel Viton® Item # |
Coupler Size |
Male NPT Thread Size |
O. D. with Cam Arms Extended (A) |
Outside Diameter (B) |
Overall Length (C) |
Exposed Length (D) |
Inside Diameter (E) |
Max. Allowable Working Press. (PSI)* |
| 20BSV | 64192000 | 2" | 2" | 7.54" | 3.94" | 3.20" | 2.15" | 1.88" | 250 PSI |
| 30BSV | 64193000 | 3" | 3" | 9.56" | 5.46" | 3.82" | 2.27" | 2.88" | 200 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
