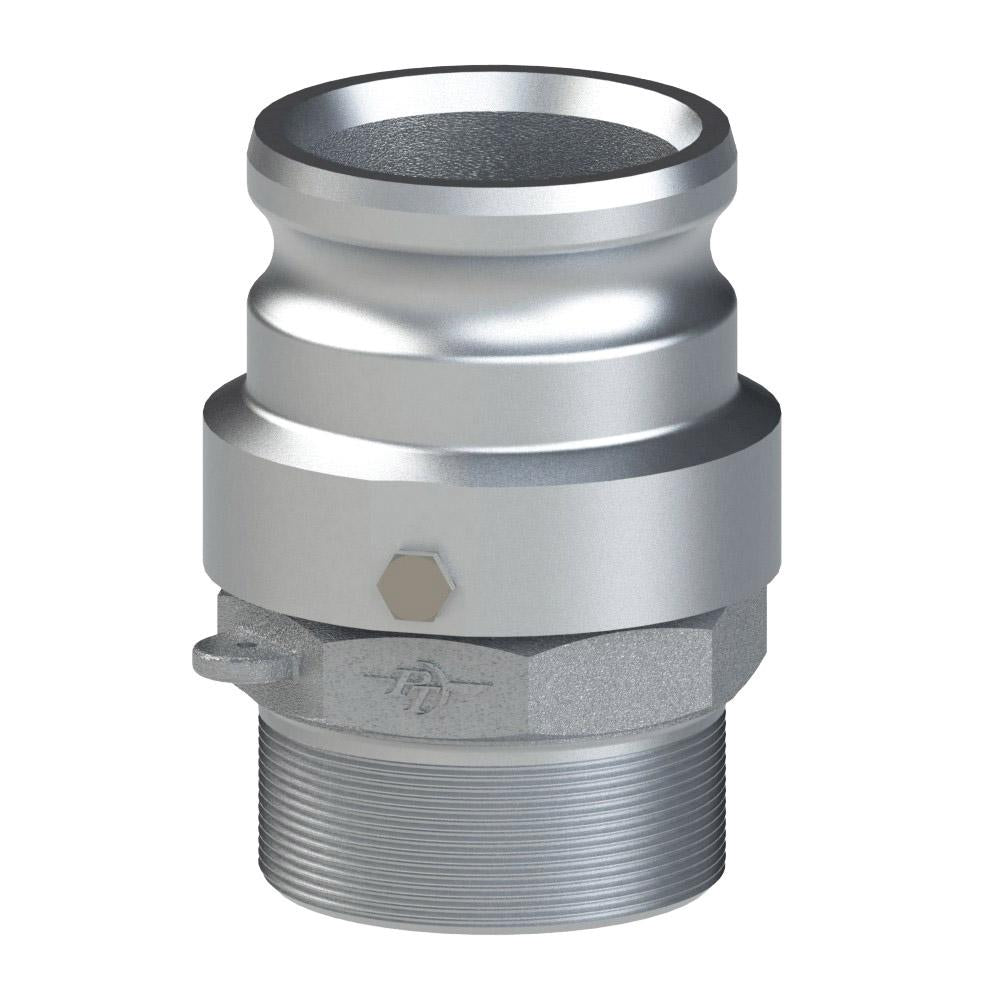

64171500 (15FSV) by PT-Coupling | Swivel Cam & Groove Adapter | Type FSV | 1-1/2" Swivel Adapter x 1-1/2" Male NPT | 316 Stainless Steel | Viton Seal
PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type FSV | Swivel Adapter x Male NPT | 316 Stainless Steel | Viton Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $325.97 |
| 15–29 | $294.76 |
| 30+ | $260.09 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type F
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Features & Applications: | |||
|---|---|---|---|
|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Name |
316 Stainless Steel Viton® Item # |
Adapter Size |
Male NPT Thread Size |
Overall Length (C) |
Exposed Length (D) |
Inside Diameter (E) |
Across Corners (F) |
Chain Lug Extension (G) |
Max. Allowable Working Press. (PSI)* |
|
| 15FSV | 64171500 | 1-1/2" | 1-1/2" | 3.29" | 2.31" | 1.34" | 2.44" | 0.30" | 250 PSI | |
| 20FSV | 64172000 | 2" | 2" | 3.57" | 2.57" | 1.72" | 2.84" | 0.28" | 250 PSI | |
| 30FSV | 64173000 | 3" | 3" | 4.37" | 2.87" | 2.80" | 4.07" | 0.44" | 200 PSI | |
| 40FSV | 64174000 | 4" | 4" | 4.79" | 3.19" | 3.78" | 5.27" | 0.40" | 150 PSI | |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
