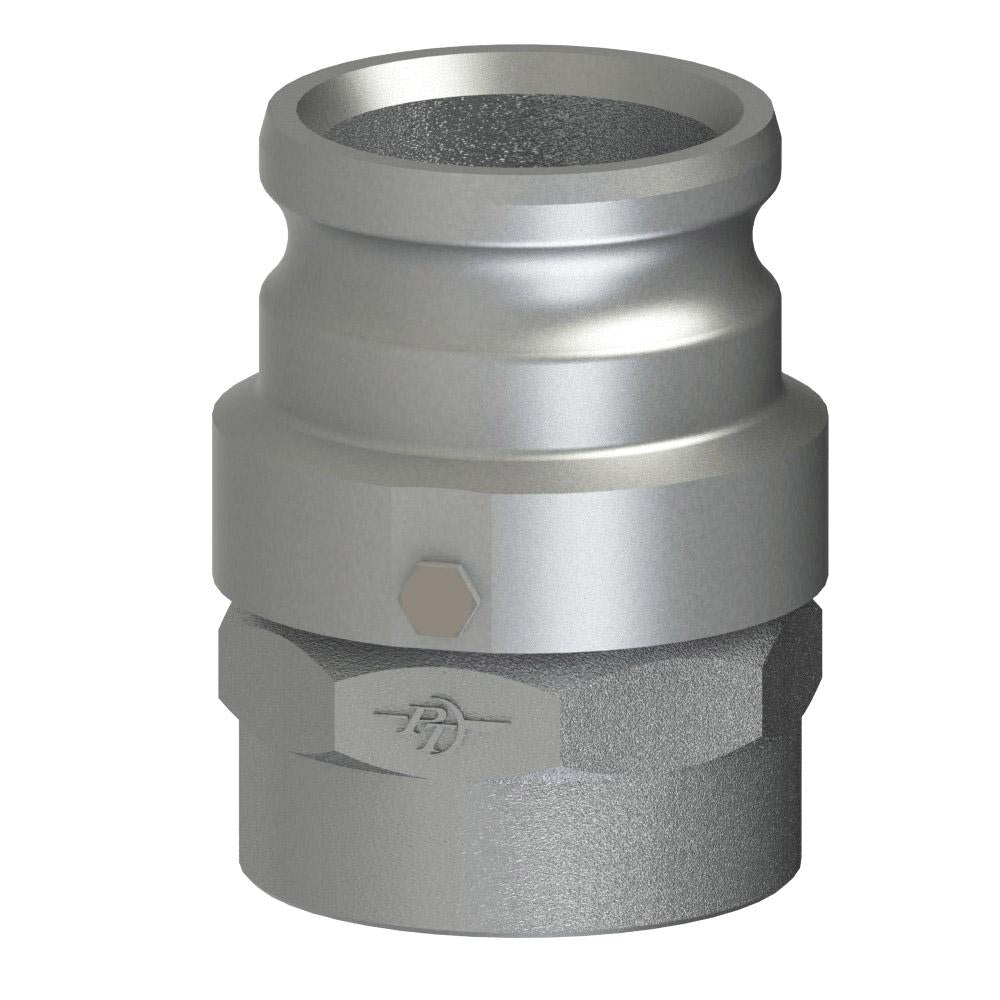

64154000 (40ASV) by PT-Coupling | Swivel Cam & Groove Adapter | Type ASV | 4" Swivel Adapter x 4" Female NPT | 316 Stainless Steel | Viton Seal
PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type ASV | Swivel Adapter x Female NPT | 316 Stainless Steel | Viton Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $580.55 |
| 15–29 | $524.97 |
| 30+ | $463.21 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Features & Applications: | |||
|---|---|---|---|
|
![]() |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name |
316 Stainless Steel Viton® Item # |
316 Stainless Steel Buna Item # |
Adapter Size |
Female NPT Thread Size |
Overall Length (C) |
Inside Diameter (E) |
Across Corners (F) |
Chain Lug Extension (G) |
Max. Allowable Working Press. (PSI)* |
| 15ASV | 64151500 | - | 1-1/2" | 1-1/2" | 2.29" | 1.35" | 2.44" | 0.33" | 250 PSI |
| 20ASV | 64152000 | 64152100 | 2" | 2" | 2.54" | 1.72" | 2.92" | 0.31" | 250 PSI |
| 30ASV | 64153000 | - | 3" | 3" | 2.84" | 2.80" | 4.22" | 0.44" | 200 PSI |
| 40ASV | 64154000 | - | 4" | 4" | 3.16" | 3.78" | 5.41" | 0.39" | 150 PSI |
| 60ASV | 64156000 | - | 6" | 6" | 3.35" | 5.90" | 7.70" | 0.60" | 75 PSI |
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
