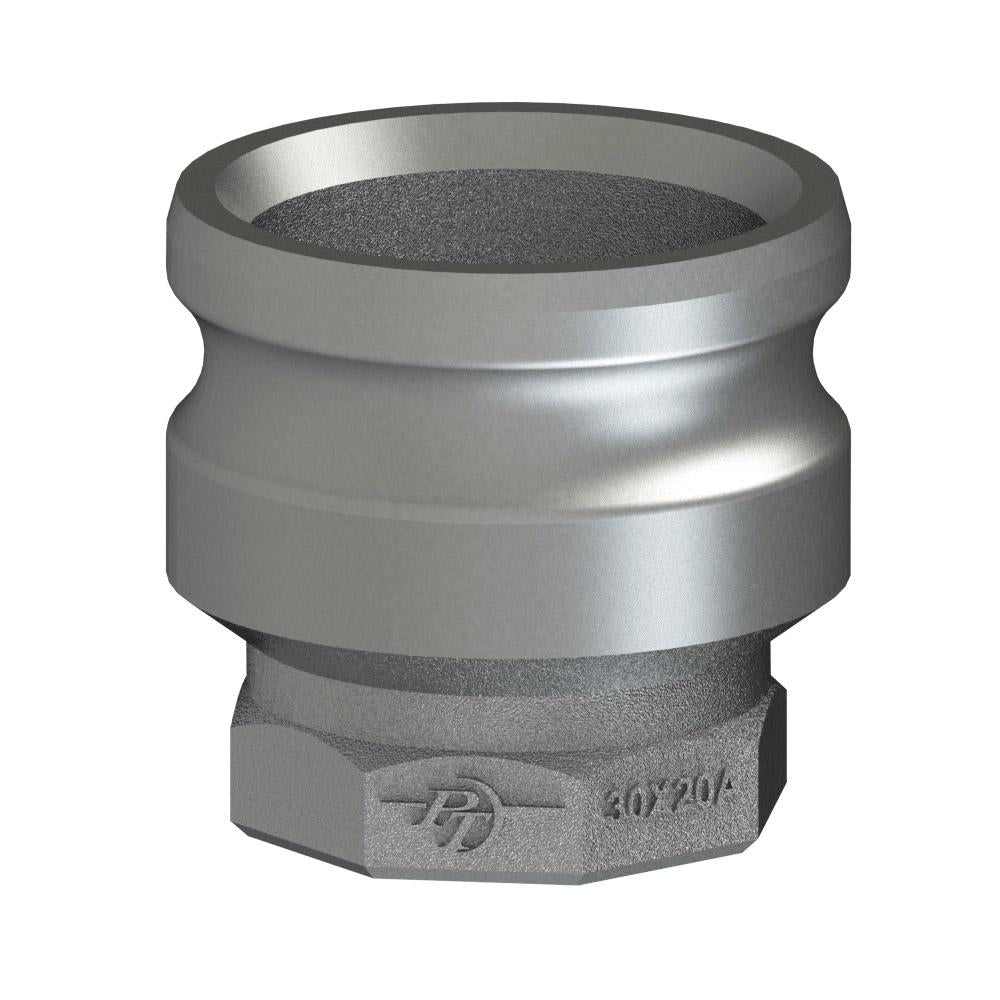

64141512 (15X12A) by PT-Coupling | Reducing Cam & Groove Adapter | Type A | 1-1/2" Adapter x 1-1/4" Female NPT | 316 Stainless Steel
PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type A | Adapter x Female NPT | 316 Stainless Steel
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $134.29 |
| 20–59 | $121.43 |
| 60+ | $107.15 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type A
Ends Configuration:
Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Adapter Size |
Female NPT Threads |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|
| 15X12A | 64141512 | 1-1/2" | 1-1/4" | 250 PSI |
| 15X20A | 64141520 | 1-1/2" | 2" | 250 PSI |
| 20X15A | 64142015 | 2" | 1-1/2" | 250 PSI |
| 20X25A | 64142025 | 2" | 2-1/2" | 200 PSI |
| 20X30A | 64142030 | 2" | 3" | 200 PSI |
| 30X20A | 64143020 | 3" | 2" | 200 PSI |
| 30X40A | 64143040 | 3" | 4" | 150 PSI |
| 40X30A | 64144030 | 4" | 3" | 150 PSI |
| 40X50A | 64144050 | 4" | 5" | 75 PSI |
** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
