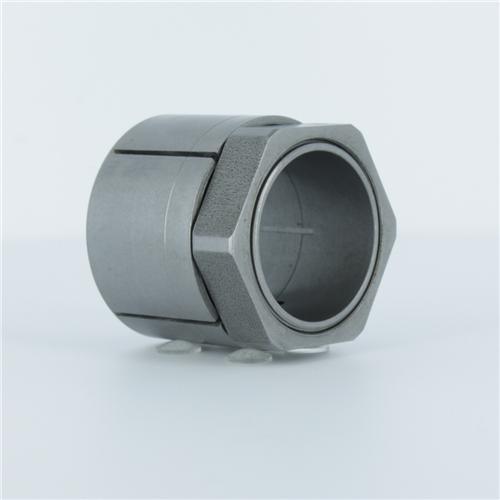

6410144 by Fenner Drives | Trantorque OE | 1-7/16" | Steel

Overview:
The Trantorque OE Series 1-7/16" Keyless Bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 1-7/16" in diameter by means of a mounted mechanical interference fit and transmits up to 463 ft lbs of torque.
Description:
Trantorque OE Series 1-7/16" Keyless Bushings provide a zero-backlash frictional connection that will never wear or pound out and can accommodate high-torque, thrust, bending, and/or radial loads. While maintaining a minimal OD/ID ratio, The Trantorque OE Series Keyless Bushings also have exceptional concentricity and the ability to accommodate bending loads. They also have limited axial movement during installation. All Trantorque units use a single hex nut for speed and simplicity of installation. Best Suited For: Applications where speed and simplicity of installation and repositioning are critical and a small OD/ID ratio is important. Exceptional concentricity and ability to accommodate bending loads Limited axial movement during installation Minimal OD/ID ratio All Trantorque units use a single hex nut for speed and simplicity of installation Features of Fenner Drives Keyless Bushings: Ability to transmit higher torques than keyed connections True zero-backlash Less equipment downtime Ability to mount over existing keyways Complete axial and radial adjustability Simple installation, adjustment and removal All Fenner Drives keyless locking devices operate using the simple wedge principle. An axial force is applied- by either a hex nut (Trantorque) or a series of annular screws (B-LOC)- to engage circular steel rings with mating tapers. The resulting wedge action creates a radial force on the tapered rings, one of which contracts to squeeze the shaft while the other expands and presses into the component bore.

SPECIFICATIONS

Series:	Trantorque OE	Torque Transmission:	473 ft lb
Axial Movement:	Approximately 0.075"	Compliancy:	RoHS
Component Bore Diameter:	2"	Hub Pressure:	10838 psi
Installation Torque:	196 ft lb	Internal/ External:	Internal
Material:	Steel	Metric/Inch:	Inch
Releasing/ Locking:	Locking	Self-Centering:	Yes
Shaft Diameter:	1-7/16"	Taper:	Single
Thrust:	7878 lbf

Part Number	d	D	L	L1	Wrench Size	B	Ma*	Mt * Max. Transmitted	Th Max. Transmitted	Ph
Steel	(inch)	(inch)	(inch)	(inch)	A (inch)	(inch)	Install Torque (in lb)	Torque (in lb)	Thrust (lbs)	Hub Pressure (psi)
6410069	11/16"	1-1/4"	7/8"	1-5/32"	1-1/8"	1/4"	82lbs	162 lb	5639 lbs	20247 psi
6410075	3/4"	1-1/4"	7/8"	1-5/32"	1-1/8"	1/4"	82lbs	176 lb	5639 lbs	20247 psi
6410081	13/16"	1-3/8"	15/16"	1-1/4"	1-1/4"	1/4"	11lbs	231 lb	6816 lbs	20136 psi
6410088	7/8"	1-3/8"	15/16"	1-1/4"	1-1/4"	1/4"	11lbs	248 lb	6816 lbs	20136 psi
6410094	15/16"	1-1/2"	1"	1-11/32"	1-3/8"	5/16"	137bs	297 lb	7601 lbs	18746 psi
6410100	1"	1-1/2"	1"	1-11/32"	1-3/8"	5/16"	137bs	317 lb	7601 lbs	18746 psi
6410106	1-1/16"	1-5/8"	1-1/16"	1-15/32"	1-1/2"	3/8"	155bs	348 lb	7868 lbs	16466 psi
6410113	1-1/8"	1-5/8"	1-1/16"	1-15/32"	1-1/2"	3/8"	155bs	369 lb	7868 lbs	16466 psi
6410119	1-3/16"	1-3/4"	1-1/8"	1-19/32"	1-5/8"	7/16"	177lbs	409 lb	8267 lbs	14865 psi
6410125	1-1/4"	1-3/4"	1-1/8"	1-19/32"	1-5/8"	7/16"	177lbs	431 lb	8267 lbs	14865 psi
6410131	1-5/16"	1-7/8"	1-3/16"	1-11/16"	1-3/4"	1/2"	196lbs	463 lb	8463 lbs	13259 psi
6410138	1-3/8"	1-7/8"	1-3/16"	1-11/16"	1-3/4"	1/2"	196lbs	485 lb	8463 lbs	13259 psi
6410144	1-7/16"	2"	1-1/4"	1-25/32"	1-7/8"	1/2"	196lbs	473 lb	7878 lbs	10838 psi
6410150	1-1/2"	2"	1-1/4"	1-25/32"	1-7/8"	1/2"	196lbs	492 lb	7878 lbs	10838 psi

NOTE: The data in the M_t Th and P_h is for a steel unit. To obtain data for other materials, use the multiplier provided below.

Multipliers:
Steel - 1.0
Electroless Nickel Plated Steel - 0.8
Thin Dense Chrome Coated Steel - 1.0
Stainless Steel - 0.35
* When installing Trantorque OE with an open-ended wrench, a reduction in installation torque by 50% is recommended. This will result in a Transmitted Torque (Mt) reduced by 50%.
