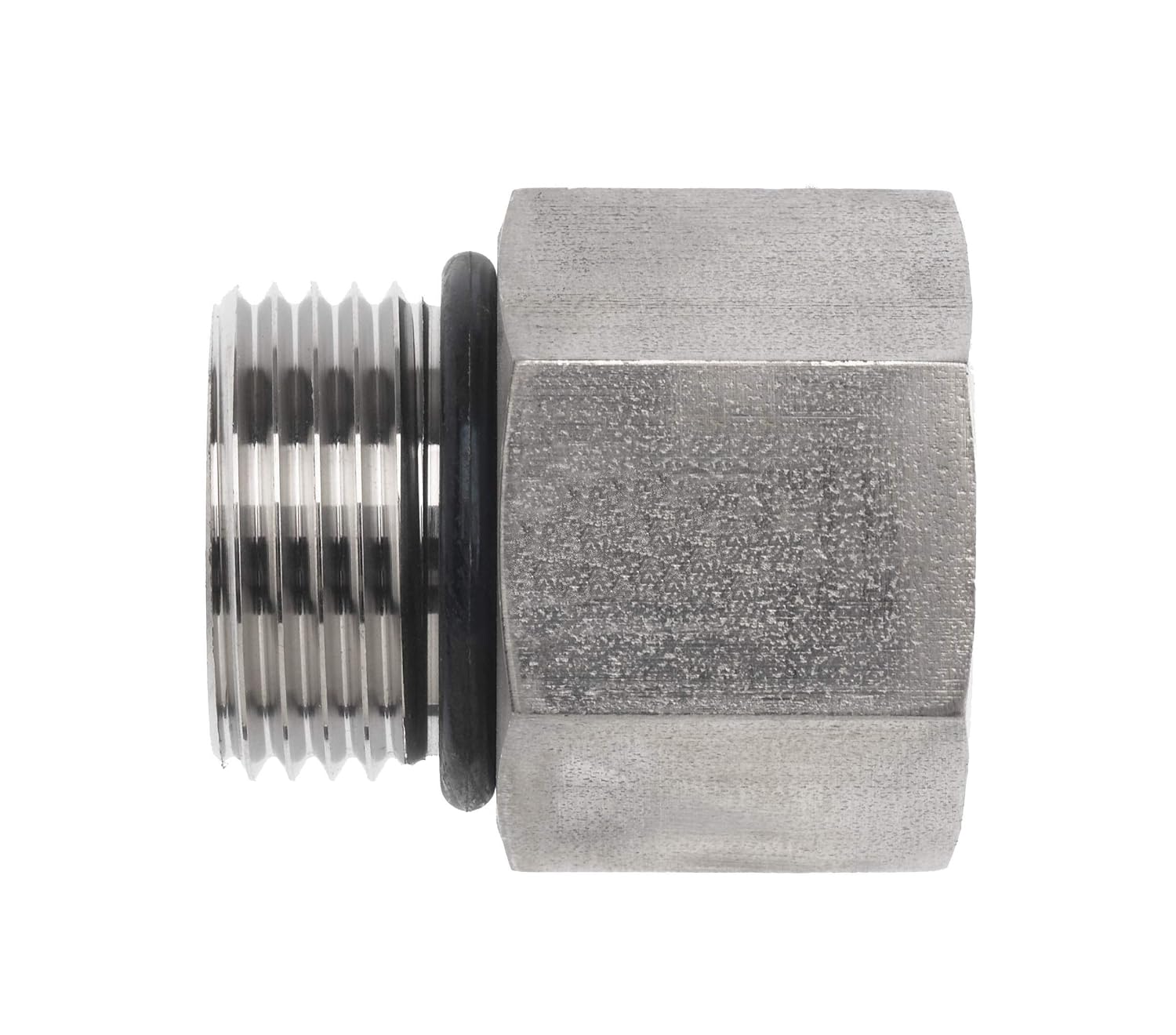

6410-10-16-O by Brennan Inc. | -10 Male O-Ring Boss x -16 Female O-Ring Boss | Straight | Reducer | Steel
| Quantity | Price Each |
| 20–49 | $39.57 |
| 50–99 | $37.49 |
| 100+ | $33.32 |
Discounts applied at checkout.
Brennan Inc.
Tube Fittings & Adapters: 6410-O - Male O-Ring Boss x Female O-Ring Boss Straight Reducer
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Material | B SAEORB | A SAEORB | B Drill | L Length | C4 Hex |
| 6410-02-04-O | Steel | 5/16-24" | 7/16-20" | 0.062" | 1.100" | 0.625" |
| 6410-03-04-O | Steel | 3/8-24" | 7/16-20" | 0.125" | 1.13" | 0.688" |
| 6410-04-02-O | Steel | 7/16-20" | 5/16-24" | 0.172" | 1.100" | 0.562" |
| 6410-04-03-O | Steel | 7/16-20" | 3/8-24" | 0.172" | 1.100" | 0.625" |
| 6410-04-04-O | Steel | 7/16-20" | 7/16-20" | 0.172" | 1.100" | 0.625" |
| 6410-04-05-O | Steel | 7/16-20" | 1/2-20" | 0.172" | 1.16" | 0.750" |
| 6410-04-06-O | Steel | 7/16-20" | 9/16-18" | 0.172" | 1.160" | 0.812" |
| 6410-04-08-O | Steel | 7/16-20" | 3/4-16" | 0.172" | 1.420" | 1.000" |
| 6410-05-04-O | Steel | 1/2-20" | 7/16-20" | 0.234" | 1.080" | 0.625" |
| 6410-05-06-O | Steel | 1/2-20" | 9/16-18" | 0.234" | 1.260" | 0.812" |
| 6410-06-04-O | Steel | 9/16-18" | 7/16-20" | 0.297" | 1.120" | 0.688" |
| 6410-06-06-O | Steel | 9/16-18" | 9/16-18" | 0.297" | 1.290" | 0.875" |
| 6410-06-08-O | Steel | 9/16-18" | 3/4-16" | 0.297" | 1.450" | 1.000" |
| 6410-08-03-O | Steel | 3/4-16" | 3/8-24" | 0.335" | 0.800" | 0.875" |
| 6410-08-04-O | Steel | 3/4-16" | 7/16-20" | 0.391" | 1.100" | 0.875" |
| 6410-08-05-O | Steel | 3/4-16" | 1/2-20" | 0.391" | 1.210" | 0.875" |
| 6410-08-06-O | Steel | 3/4-16" | 9/16-18" | 0.391" | 1.160" | 0.875" |
| 6410-08-08-O | Steel | 3/4-16" | 3/4-16" | 0.391" | 1.410" | 1.000" |
| 6410-08-10-O | Steel | 3/4-16" | 7/8-14" | 0.391" | 1.48" | 1.125" |
| 6410-08-12-O | Steel | 3/4-16" | 1-1/16-12" | 0.391" | 1.66" | 1.375" |
| 6410-10-04-O | Steel | 7/8-14" | 7/16-20" | 0.391" | 0.93" | 1.000" |
| 6410-10-05-O | Steel | 7/8-14" | 1/2-20" | 0.484" | 0.940" | 1.000" |
| 6410-10-06-O | Steel | 7/8-14" | 9/16-18" | 0.502" | 0.930" | 1.000" |
| 6410-10-08-O | Steel | 7/8-14" | 3/4-16" | 0.484" | 1.315" | 1.000" |
| 6410-10-10-O | Steel | 7/8-14" | 7/8-14" | 0.492" | 1.500" | 1.062" |
| 6410-10-12-O | Steel | 7/8-14" | 1-1/16-12" | 0.484" | 1.79" | 1.375" |
| 6410-10-16-O | Steel | 7/8-14" | 1-5/16-12" | 0.484" | 1.720" | 1.500" |
| 6410-12-04-O | Steel | 1-1/16-12" | 7/16-20" | 0.389" | 1.000" | 1.250" |
| 6410-12-06-O | Steel | 1-1/16-12" | 9/16-18" | 0.609" | 1.090" | 1.250" |
| 6410-12-08-O | Steel | 1-1/16-12" | 3/4-16" | 0.609" | 1.48" | 1.250" |
| 6410-12-10-O | Steel | 1-1/16-12" | 7/8-14" | 0.609" | 1.57" | 1.250" |
| 6410-12-12-O | Steel | 1-1/16-12" | 1-1/16-12" | 0.609" | 1.830" | 1.375" |
| 6410-12-14-O | Steel | 1-1/16-12" | 1-3/16-12" | 0.609" | 1.710" | 1.500" |
| 6410-12-16-O | Steel | 1-1/16-12" | 1-5/16-12" | 0.609" | 1.920" | 1.625" |
| 6410-12-20-O | Steel | 1-1/16-12" | 1-5/8-12" | 0.609" | 2.000" | 2.000" |
| 6410-14-08-O | Steel | 1-3/16-12" | 3/4-16" | 0.719" | 1.48" | 1.375" |
| 6410-14-10-O | Steel | 1-3/16-12" | 7/8-14" | 0.719" | 1.53" | 1.375" |
| 6410-14-12-O | Steel | 1-3/16-12" | 1-1/16-12" | 0.719" | 1.720" | 1.375" |
| 6410-14-16-O | Steel | 1-3/16-12" | 1-5/16-12" | 0.719" | 1.88" | 1.625" |
| 6410-16-04-O | Steel | 1-5/16-12" | 7/16-20" | 0.389" | 1.00" | 1.500" |
| 6410-16-06-O | Steel | 1-5/16-12" | 9/16-18" | 0.508" | 1.00" | 1.500" |
| 6410-16-08-O | Steel | 1-5/16-12" | 3/4-16" | 0.689" | 1.00" | 1.500" |
| 6410-16-10-O | Steel | 1-5/16-12" | 7/8-14" | 0.806" | 1.570" | 1.500" |
| 6410-16-12-O | Steel | 1-5/16-12" | 1-1/16-12" | 0.844" | 1.710" | 1.500" |
| 6410-16-14-O | Steel | 1-5/16-12" | 1-3/16-12" | 0.844" | 1.81" | 1.500" |
| 6410-16-16-O | Steel | 1-5/16-12" | 1-5/16-12" | 0.844" | 1.81" | 1.625" |
| 6410-16-20-O | Steel | 1-5/16-12" | 1-5/8-12" | 0.844" | 2.140" | 2.125" |
| 6410-16-24-O | Steel | 1-5/16-12" | 1-7/8-12" | 0.844" | 1.910" | 2.250" |
| 6410-20-06-O | Steel | 1-5/8-12" | 9/16-18" | 0.509" | 1.000" | 1.875" |
| 6410-20-08-O | Steel | 1-5/8-12" | 3/4-16" | 0.689" | 1.000" | 1.875" |
| 6410-20-10-O | Steel | 1-5/8-12" | 7/8-14" | 0.806" | 1.000" | 1.875" |
| 6410-20-12-O | Steel | 1-5/8-12" | 1-1/16-12" | 0.981" | 1.000" | 1.875" |
| 6410-20-16-O | Steel | 1-5/8-12" | 1-5/16-12" | 1.231" | 1.200" | 1.875" |
| 6410-20-24-O | Steel | 1-5/8-12" | 1-7/8-12" | 1.078" | 1.980" | 2.250" |
| 6410-24-06-O | Steel | 1-7/8-12" | 9/16-18" | 0.509" | 1.000" | 2.125" |
| 6410-24-08-O | Steel | 1-7/8-12" | 3/4-16" | 0.689" | 1.000" | 2.125" |
| 6410-24-12-O | Steel | 1-7/8-12" | 1-1/16-12" | 0.980" | 1.000" | 2.125" |
| 6410-24-16-O | Steel | 1-7/8-12" | 1-5/16-12" | 1.231" | 1.000" | 2.125" |
| 6410-24-20-O | Steel | 1-7/8-12" | 1-5/8-12" | 1.312" | 1.750" | 2.125" |
| 6410-24-24-O | Steel | 1-7/8-12" | 1-7/8-12" | 1.312" | 2.000" | 2.250" |
| 6410-32-12-O | Steel | 2-1/2-12" | 1-1/16-12" | 0.980" | 1.000" | 2.750" |
| 6410-32-16-O | Steel | 2-1/2-12" | 1-5/16-12" | 1.231" | 1.000" | 2.750" |
| 6410-32-20-O | Steel | 2-1/2-12" | 1-5/8-12" | 1.544" | 1.000" | 2.750" |
| 6410-32-24-O | Steel | 2-1/2-12" | 1-7/8-12" | 1.794" | 1.440" | 2.750" |
| 6410-40-24-O | Steel | - | - | - | - | - |
| 6410-04-04-O-SS | Stainless Steel | 7/16-20" | 7/16-20" | 0.172" | 1.100" | 0.625" |
| 6410-04-06-O-SS | Stainless Steel | 7/16-20" | 9/16-18" | 0.172" | 1.160" | 0.812" |
| 6410-06-04-O-SS | Stainless Steel | 9/16-18" | 7/16-20" | 0.297" | 1.120" | 0.688" |
| 6410-06-08-O-SS | Stainless Steel | 9/16-18" | 3/4-16" | 0.297" | 1.450" | 1.000" |
| 6410-08-04-O-SS | Stainless Steel | 3/4-16" | 7/16-20" | 0.391" | 0.905" | 1.000" |
| 6410-08-06-O-SS | Stainless Steel | 3/4-16" | 9/16-18" | 0.391" | 1.160" | 0.875" |
| 6410-08-08-O-SS | Stainless Steel | 3/4-16" | 3/4-16" | 0.391" | 1.410" | 1.000" |
| 6410-08-10-O-SS | Stainless Steel | 3/4-16" | 7/8-14" | 0.391" | 1.48" | 1.125" |
| 6410-08-12-O-SS | Stainless Steel | 3/4-16" | 1-1/16-12" | 0.391" | 1.66" | 1.375" |
| 6410-10-06-O-SS | Stainless Steel | 7/8-14" | 9/16-18" | 0.484" | 0.930" | 1.000" |
| 6410-10-08-O-SS | Stainless Steel | 7/8-14" | 3/4-16" | 0.484" | 1.315" | 1.000" |
| 6410-10-12-O-SS | Stainless Steel | 7/8-14" | 1-1/16-12" | 0.484" | 1.79" | 1.375" |
| 6410-12-04-O-SS | Stainless Steel | 1-1/16-12" | 7/16-20" | 0.389" | 1.000" | 1.250" |
| 6410-12-06-O-SS | Stainless Steel | 1-1/16-12" | 9/16-18" | 0.508" | 1.090" | 1.250" |
| 6410-12-08-O-SS | Stainless Steel | 1-1/16-12" | 3/4-16" | 0.609" | 1.48" | 1.250" |
| 6410-12-10-O-SS | Stainless Steel | 1-1/16-12" | 7/8-14" | 0.609" | 1.57" | 1.250" |
| 6410-12-16-O-SS | Stainless Steel | 1-1/16-12" | 1-5/16-12" | 0.609" | 1.920" | 1.625" |
| 6410-14-12-O-SS | Stainless Steel | 1-3/16-12" | 1-1/16-12" | 0.719" | 1.720" | 1.375" |
| 6410-16-08-O-SS | Stainless Steel | 1-5/16-12" | 3/4-16" | 0.689" | 1.00" | 1.500" |
| 6410-16-12-O-SS | Stainless Steel | 1-5/16-12" | 1-1/16-12" | 0.844" | 1.710" | 1.500" |
| 6410-16-16-O-SS | Stainless Steel | 1-5/16-12" | 1-5/16-12" | 0.844" | 1.81" | 1.625" |
| 6410-16-20-O-SS | Stainless Steel | 1-5/16-12" | 1-5/8-12" | 0.844" | 2.140" | 2.125" |
| 6410-20-06-O-SS | Stainless Steel | 1-5/8-12" | 9/16-18" | 0.509" | 1.000" | 1.875" |
| 6410-20-08-O-SS | Steel | 1-5/8-12" | 3/4-16" | 1.078" | 1.000" | 1.875" |
| 6410-20-12-O-SS | Stainless Steel | 1-5/8-12" | 1-1/16-12" | 0.981" | 1.000" | 1.875" |
| 6410-20-16-O-SS | Stainless Steel | 1-5/8-12" | 1-5/16-12" | 1.231" | 1.200" | 1.875" |
| 6410-20-24-O-SS | Steel | 1-5/8-12" | 1-7/8-12" | 1.078" | 1.980" | 2.500" |
| 6410-24-12-O-SS | Stainless Steel | 1-7/8-12" | 1-1/16-12" | 0.980" | 1.000" | 2.125" |
| 6410-24-16-O-SS | Steel | 1-7/8-12" | 1-5/16-12" | 1.231" | 1.000" | 2.125" |
| 6410-24-20-O-SS | Stainless Steel | 1-7/8-12" | 1-5/8-12" | 1.312" | 1.750" | 2.125" |
| 6410-32-20-O | Stainless Steel | 2-1/2-12" | 1-5/16-12" | 1.544" | 1.000" | 2.750" |
| 6410-32-24-O-SS | Steel | 2-1/2-12" | 1-7/8-12" | 1.794" | 1.440" | 2.750" |
