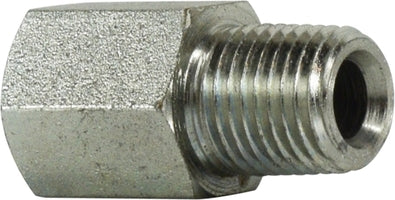

64042020 by Midland | Hydraulic Female O-Ring to Male Pipe | 1-1/4" Female O-Ring x 1-1/4" Male Pipe | Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Technical Info: | |||
|---|---|---|---|
| Crossover Series: | ||||
|---|---|---|---|---|
| 6404 | 2246R | 1267R | C3239 | FHG5 |
 |
|||
|---|---|---|---|
| Part Number | Female O-Ring Boss Size |
Female O-Ring Boss Thread (1) |
Male Pipe (2) |
| 640442 | 1/4" | 7/16-20 | 1/8" |
| 640444 (6404-4-4) |
1/4" | 7/16-20 | 1/4" |
| 6404-05-02 | 5/16" | 1/2-20" | 1/8" |
| 640464 (6404-6-4) |
3/8" | 9/16-18 | 1/4" |
| 640466 (6404-6-6) |
3/8" | 9/16-18 | 3/8" |
| 640468 (6404-6-8) |
3/8" | 9/16-18 | 1/2" |
| 640486 | 1/2" | 3/4-16 | 3/8" |
| 640488 (6404-8-8) |
1/2" | 3/4-16 | 1/2" |
| 6404-08-12 | 1/2" | 3/4-16 | 3/4" |
| 6404108 (6404-10-8) |
5/8" | 7/8-14 | 1/2" |
| 64041012 | 5/8" | 7/8-14 | 3/4" |
| 64041212 (6404-12-12) |
3/4" | 1-1/16-12 | 3/4" |
| 6404-14-12 | 7/8" | 1-13/16-12 | 3/4" |
| 64041616 | 1" | 1-5/16-12 | 1" |
| 64042020 | 1-1/4" | 1-5/8-12" | 1-1/4" |
| 64042424 | 1-1/2" | 1-7/8-12" | 1-1/2" |
