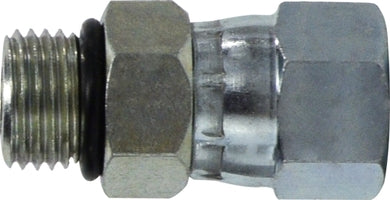

6402O86 by Midland | Hydraulic O-Ring to JIC Swivel | 3/4-16 Male O-Ring Boss x 9/16-18 Female JIC 37° Flare | Adapter | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Hydraulic Adapters: O-Ring to JIC Swivel Adapter - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.12 |
| 40–79 | $2.82 |
| 80+ | $2.49 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Technical Info: | |||
|---|---|---|---|
| Crossover Series: | ||||
|---|---|---|---|---|
| 6402 | 2266 | F65X | 1213 | 9316 |
 |
||||
|---|---|---|---|---|
| Part Number | Male O-Ring Boss (1) |
Male O-Ring Boss Thread (1) |
Female JIC 37° Flare (2) |
Female JIC 37° Flare Thread (2) |
| 6402O44 (6402-O-4-4) |
1/4" | 7/16-20 | 1/4" | 7/16-20 |
| 6402O46 | 1/4" | 7/16-20 | 3/8" | 9/16-18 |
| 6402O55 | 5/16" | 1/2-20 | 5/16" | 1/2-20 |
| 6402O66 (6402-O-6-6) |
3/8" | 9/16-18 | 3/8" | 9/16-18 |
| 6402O68 | 3/8" | 9/16-18 | 1/2" | 3/4-16 |
| 6402O88 (6402-O-8-8) |
1/2" | 3/4-16 | 3/8" | 3/4-16 |
| 6402O810 | 1/2" | 3/4-16 | 1/2" | 3/4-16 |
| 6402O812 | 1/2" | 3/4-16 | 5/8" | 3/4-16 |
| 6402O108 | 1/2" | 3/4-16 | 3/4" | 1-1/16-12 |
| 6402O86 | 5/8" | 3/4-16 | 1/2" | 9/16-18 |
| 6402O1010 (6402-O-10-10) |
5/8" | 7/8-14 | 5/8" | 7/8-14 |
|
6402O1212 (6402-O-12-12) |
3/4" | 1-1/16-12 | 3/4" | 1-1/16-12 |
| 6402O1616 | 1" | 1-5/16-12 | 1" | 1-5/16-12 |
| 6402O2020 | 1-1/4" | 1-5/8-12 | 1-1/4" | 1-5/8-12 |
