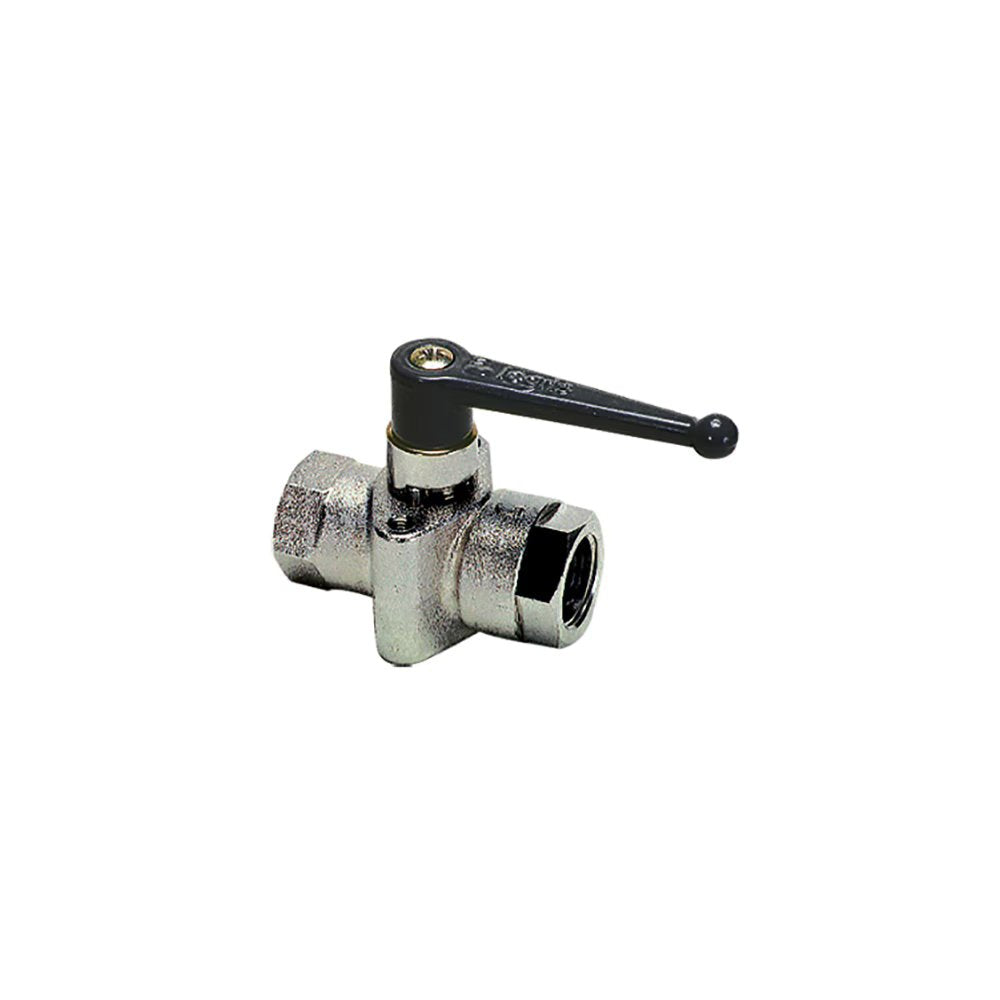

6402 13 21 by Parker | Legris In-Line Ball Valve for Screw Fixing | 1/2" Female BSPP Thread | 27 mm Hex (F) | 27 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 5

6402 13 21 by Parker | Legris In-Line Ball Valve for Screw Fixing | 1/2" Female BSPP Thread | 27 mm Hex (F) | 27 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 5

Sale price$465.06

by Parker Hannifin
Universal Series:6402 2/2 In-Line Ball Valve for Screw Fixing, Female BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–14 $437.16
15–29 $395.30
30+ $348.80
Discounts applied in cart/checkout.

Product Data:

Series:
  • 6402 Series
Shape:

Straight

Ends Configuration:
  • 1/2in Female BSPP
  • 1/2in Female BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum up to 40 bar, depending on the model
  • Working Temperature: -20°C to +80°C
    up to -40°C with no handle operation
Advantages:
  • Automatic seal wear compensation
  • Vacuum resistance
  • Ease of operation
  • Short, repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Nickel-plated brass
  • Stem: NBR
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Locking Nut: Nickel-plated brass
  • Wear-compensation seal: NBR
  • Lever: Treated Zamak
  • Lever fixing screw: Zinc-Plated Steel
Part Number Diameter Nominal (DN) C E F F1 G H1 H2 L L1 M N T Kg
6402 04 10 4 mm 1/8" 8 mm 14 mm 14 mm 18 mm 18 mm 30 mm 44 mm 25 mm 48 mm 25 mm 470 .132 Kg
6402 07 13 7 mm 1/4" 12 mm 19 mm 19 mm 19 mm 24 mm 31 mm 53 mm 28 mm 48 mm 31 mm 580 .216 Kg
6402 10 17 10 mm 3/8" 12 mm 24 mm 24 mm 20 mm 30 mm 45 mm 59 mm 31 mm 69 mm 31 mm 580 .324 Kg
6402 13 21 13 mm 1/2" 15 mm 27 mm 27 mm 20 mm 34 mm 47 mm 67 mm 34 mm 69 mm 34 mm 6100 .404 Kg
6402 20 27 20 mm 3/4" 16.5 mm 32 mm 38 mm 27 mm 44 mm 52 mm 80 mm 39 mm 108 mm 43 mm 8125 .830 Kg
6402 23 34 23 mm 1" 19 mm 41 mm 46 mm 27 mm 53 mm 56 mm 94 mm 47 mm 108 mm 51 mm 8125 1.290 Kg

Maximum working pressure: 40 bar
